Aputure NOVA 9 Deg 2x1 RGB LED Light Panel

Special Order · Professional Equipment

This item is supplied on a special order basis due to its professional and project-based nature.
Orders are placed directly with the manufacturer after confirmation.

Estimated delivery time: 4–6 weeks.
Local Canadian support and warranty included.

For urgent projects or delivery confirmation, please contact us before ordering.

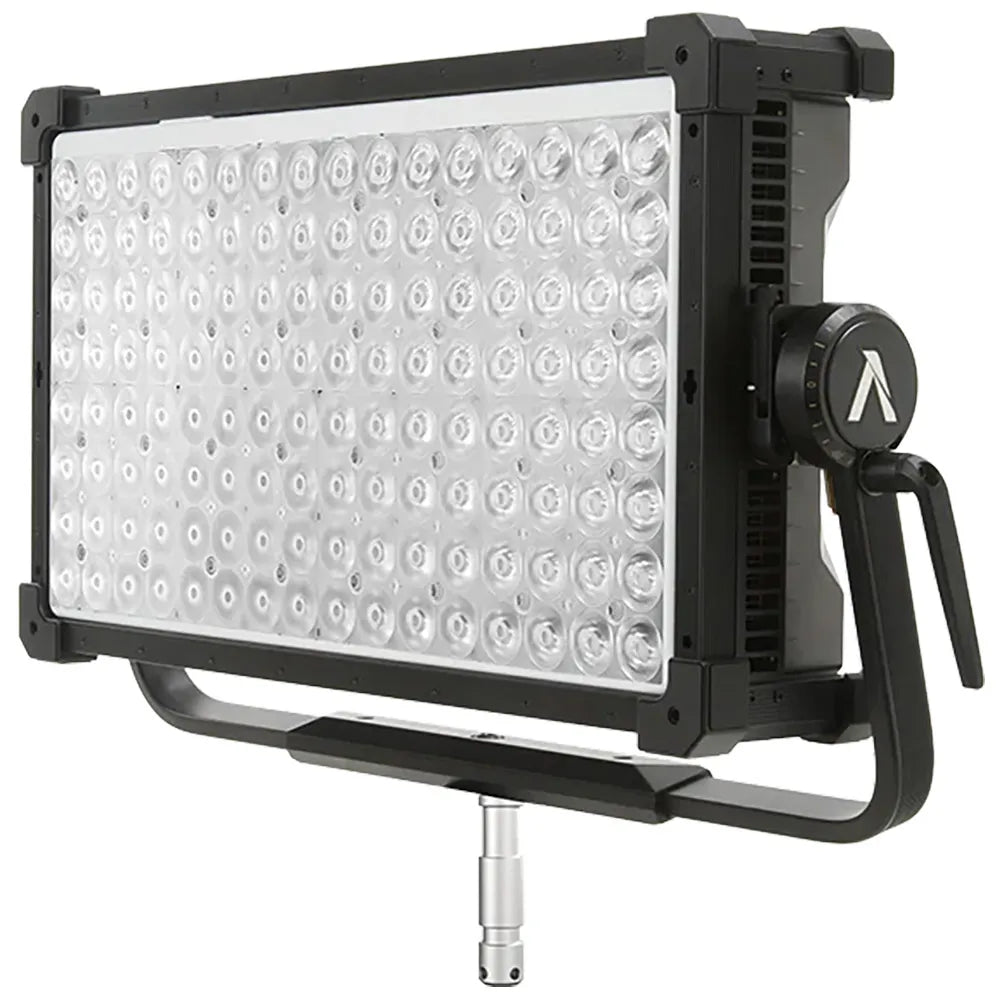

NOVA 9° 2x1

The Aputure NOVA 9° 2x1 is a high-output, lensed LED panel designed to replicate the power and precision of natural sunlight in a compact, portable form factor. Featuring an ultra-tight 9° native beam angle and a BLAIR chipset, the NOVA 9° 2x1 delivers exceptional long-throw performance, enabling filmmakers to project crisp, directional beams and hard shadows across great distances with remarkable intensity and control. At its core lies Aputure’s advanced BLAIR color engine, a five-diode architecture that blends Blue, Lime, Amber, Indigo, and Red emitters for extraordinary spectral reproduction.

Key Features:

• 650W output lensed LED panel light fixture
• Tight 9° native beam angle throws light across great distances effortlessly
• BLAIR chipset: Blue, Lime, Amber, Indigo, Red diodes
• Advanced white point control with green/magenta color correction (±G 100% Full ASC MITC Range)
• Stackable into a powerful 3-light yoke configuration that can contend with natural daylight
• 4 horizontal pixel zones for ultra smooth, versatile pixel effect transitions
• CCT range of 1,800K–20,000K
• Bare bulb output: 66,200 lux @3m 5600K

This chipset achieves ultra-high color accuracy (CRI/TLCI ≥95, SSI 89/86) and precise white point control across an expansive 1,800K–20,000K CCT range, with full ASC MITC ±G green-magenta adjustment. The result is unparalleled flexibility for matching ambient sources, enhancing skin tones, or creating sunlike color rendition with extended red response.

Additional Features:

• Included flat diffusion panel: 2,423 lux @3m 5600K
• Ultra-high color accuracy: CRI≥95, TLCI≥95, CQS≥96, SSI (D5600) 86, TM-30 Rf 95, TM-30 Rg 100
• New QuickClip direct front-mounting accessory ecosystem
• Removable yoke for rigging flexibility
• High output-to-weight ratio: 19.65 kg / 43.32 lbs (with yoke)
• IP65 weather resistance
• Pro control protocols: Sidus Link, Sidus Link Pro, DMX, CRMX, Art-Net/sACN
• 16-bit 5-pin DMX512 in & out ports

With a native beam angle of just 9°, the NOVA 9° 2x1 focuses its output into a powerful, concentrated shaft of light that maintains intensity over long distances, ideal for simulating sunlight through windows, using with reflectors, or achieving defined shadow edges and specular highlights. Even when paired with its included flat diffusion panel, it retains exceptional punch and smooth luminance distribution for controlled softness. Engineered for scalability, the NOVA 9° 2x1 can be stacked in multi-light yoke configurations to form large, directional arrays capable of recreating hard daylight effects at 10 meters or more. Sharing the same dimensions and QuickClip front-mounting ecosystem as the NOVA II 2x1, it offers full accessory compatibility and a removable yoke for flexible rigging in studios, truss grids, or on-location builds.

• 2x locking Ethernet ports
• Smooth 0.1–100% stepless dimming
• Dual output modes: Max and Constant
• Lead-follow and studio mode
• 4 fan modes: Smart, High, Medium, Silent (DMX controllable)
• 4 dimming curves: Linear, Exponential, Logarithmic, S-shaped
• 15 built-in light effects
• 10 savable presets
• Batch firmware upgrades via Sidus Link Pro, USB drive, or DMX
• High-resolution rear color display for status and settings

Built for professional reliability, the NOVA 9° 2x1 features IP65 weather resistance, dual output modes (Max and Constant), four DMX-controllable fan modes, and a smooth 0.1–100% dimming range for precise exposure control. With its high output-to-weight ratio, durable weather-sealed housing, and full integration into the Sidus ecosystem, the NOVA 9° 2x1 is purpose-built for cinematographers and gaffers who need the narrowest, most color-accurate beam possible in a portable LED panel.

KEY FEATURE

• ≥95 CRI (Ra)
• 1,800-20,000K Colour Temperature
• ≤100 m (≤328') Wireless Range
• 100-240 VAC Power Source
• IP65 IP Rating

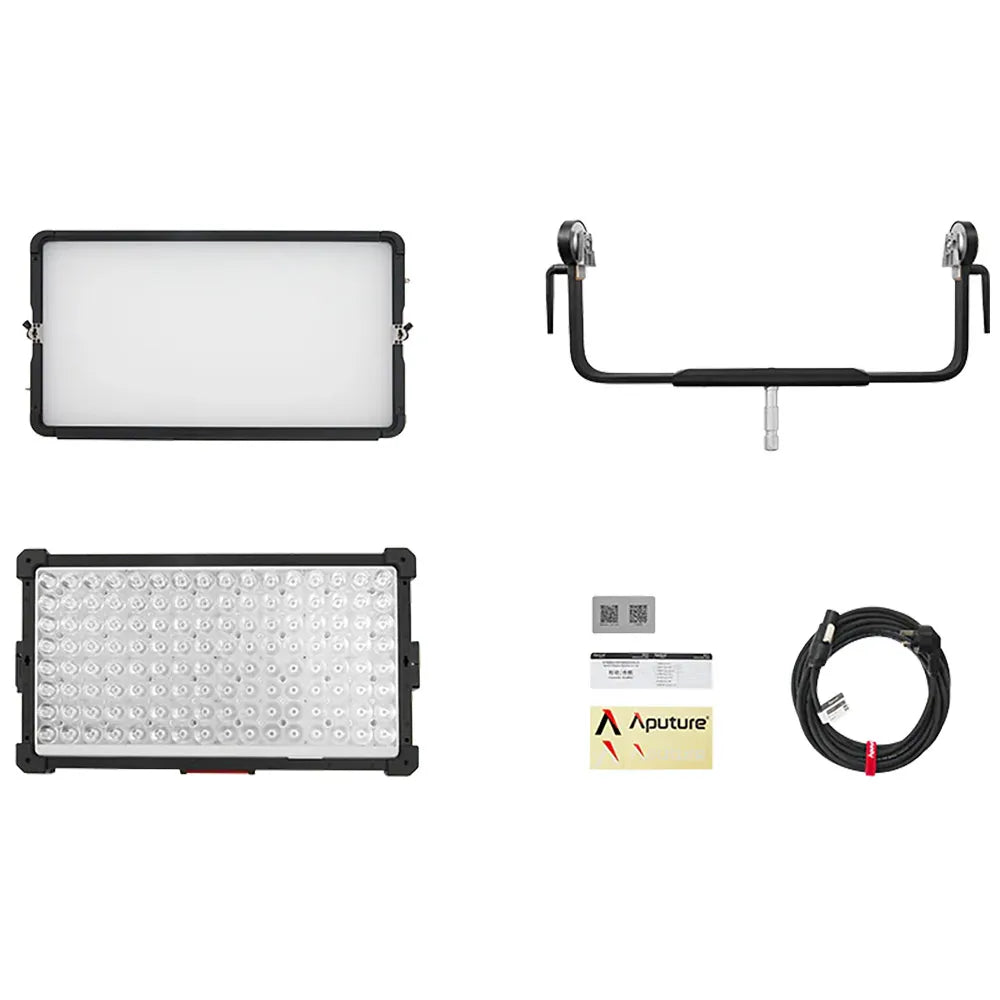

IN THE BOX

NOVA 9º 2x1 Lamp Head
NOVA 2x1 Removable Yoke with Junior Pin
NOVA 2x1 Flat Diffuser
AC Power Cable (6m)
Safety Chain (50cm)
