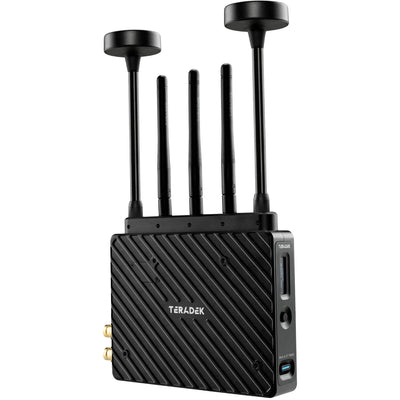

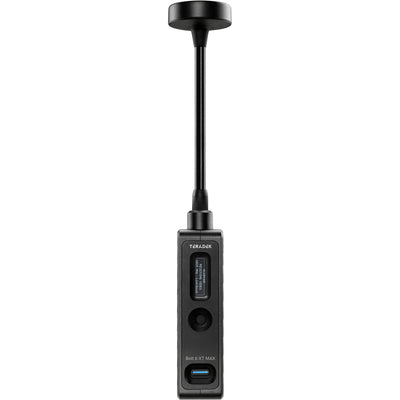

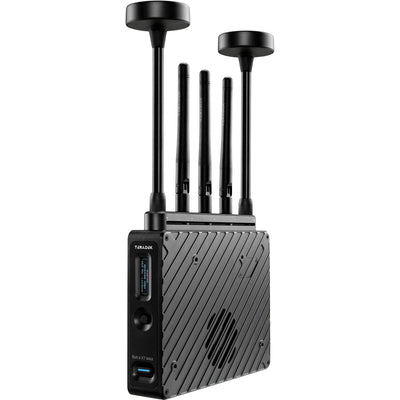

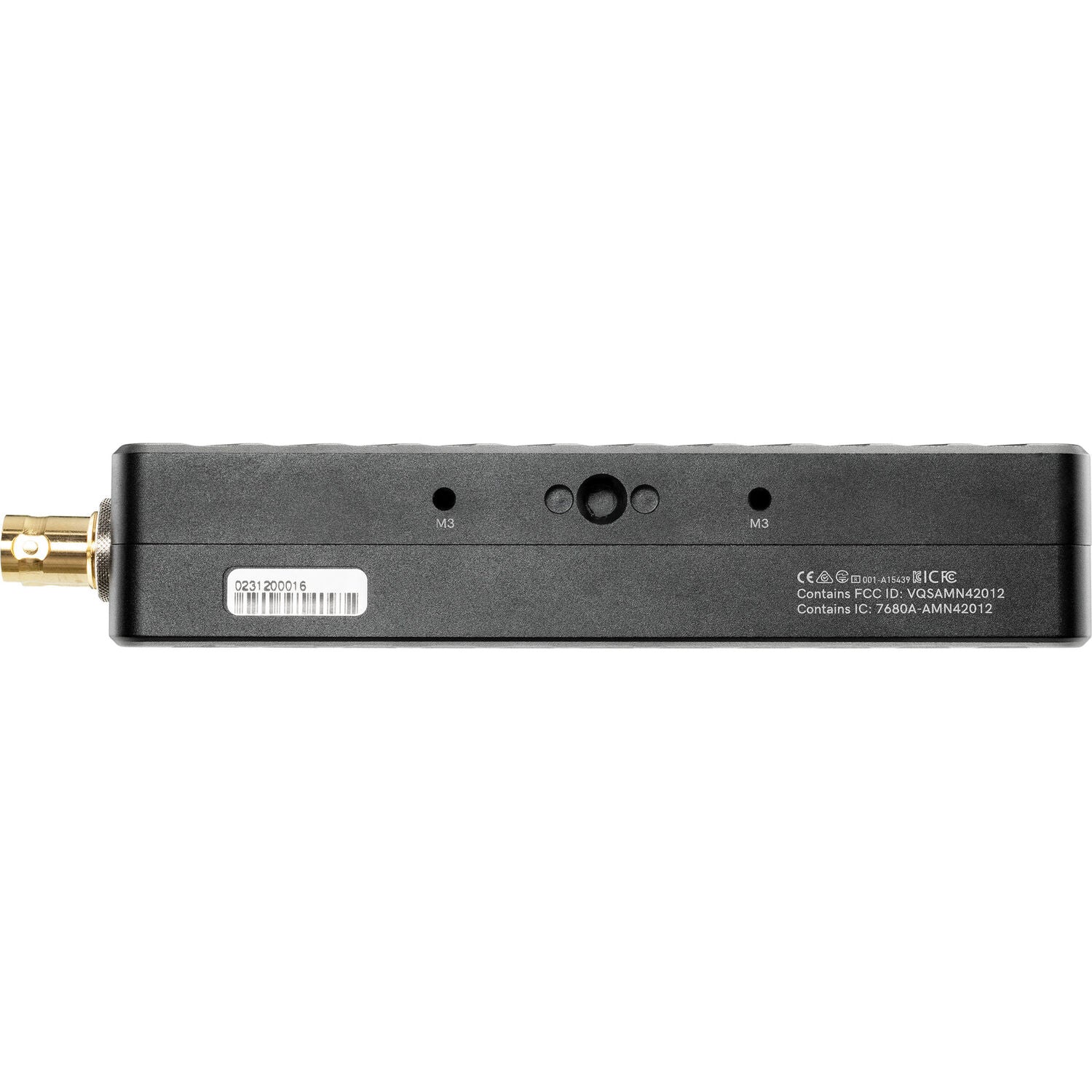

Bolt 6 XT RX is a wireless video receiver that supports up to 4K60 10-bit 422 HDR video over 12G-SDI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
Bolt 6 XT RX offer three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.
The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.
KEY FEATURE
- Supports New 6 GHz Frequency Band
- Receive Video from up to 5000' Away LoS

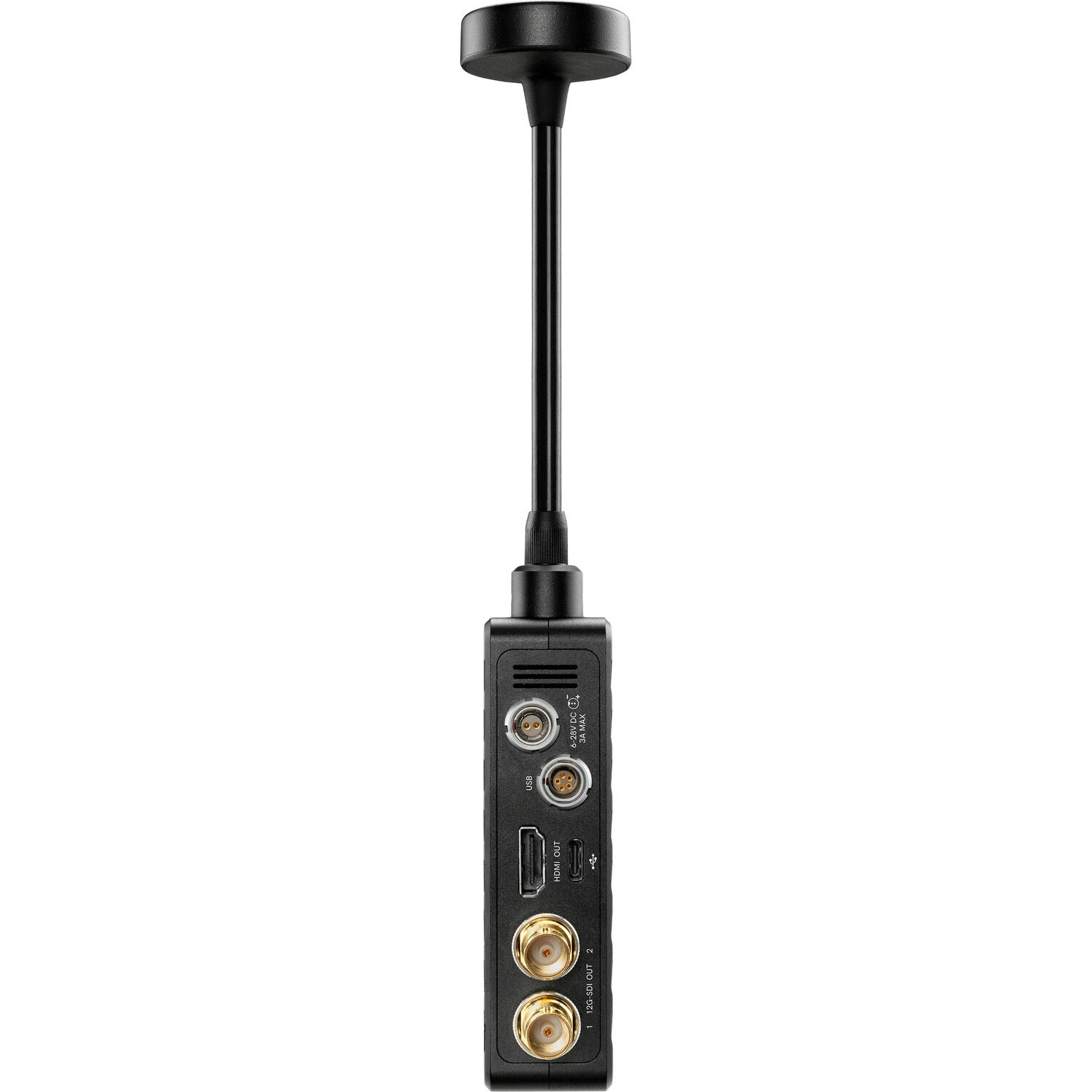

- 12G-SDI & HDMI Outputs, Zero Delay

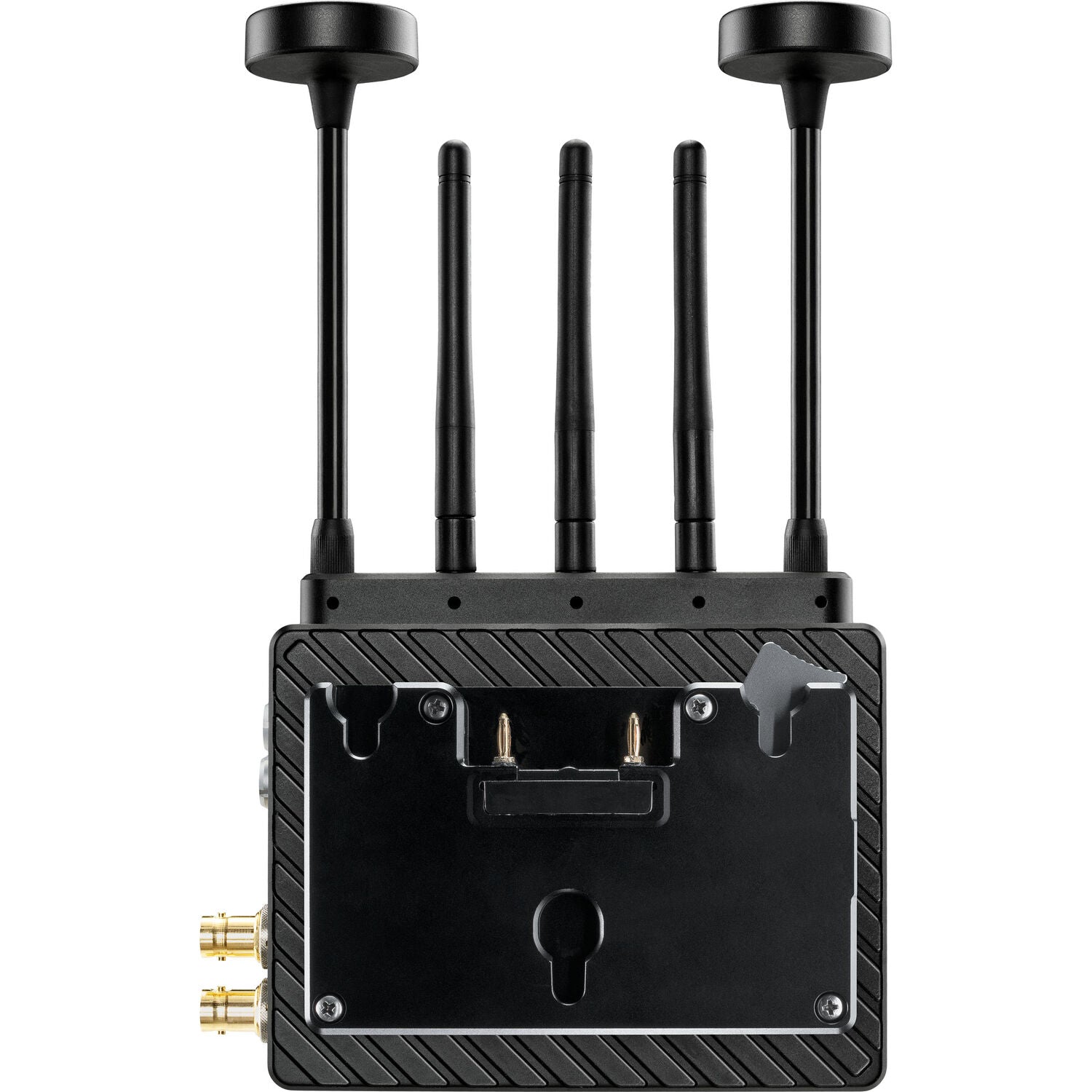

- V-Mount Battery Plate
- Smaller, Lighter & Quieter than Bolt 4K
- 5-Pin USB Output for Camera Control
- Receive DCI 4K60 Video, 10-Bit 4:2:2
- Compatible with all Bolt 4K Transmitters

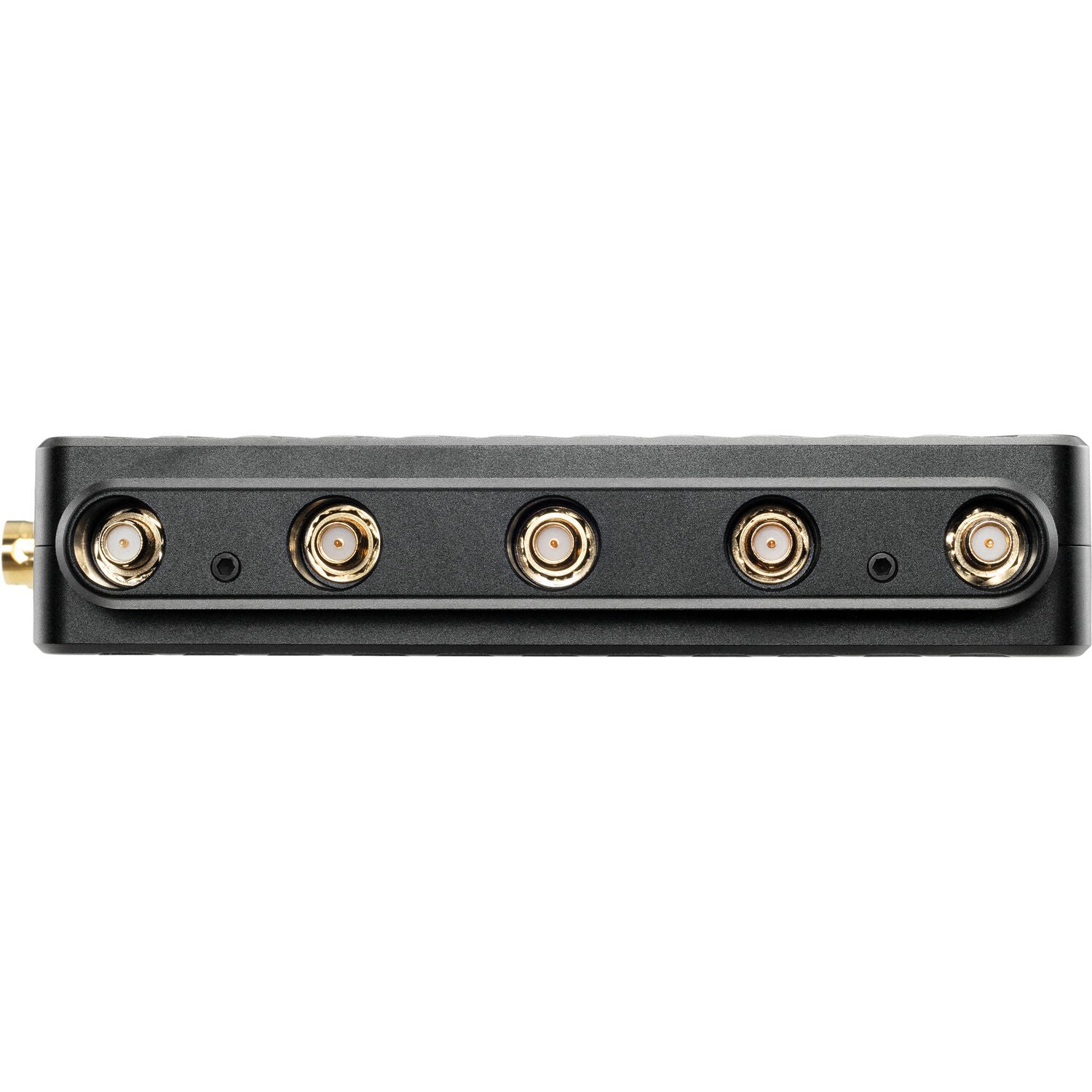

- AES-256 Encryption, 5 x Antennas
- Bluetooth Mobile App, Spectrum Analyzer
IN THE BOX
- Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Receiver (Gold Mount)
- Gold Mount Battery Plate
- 2-Pin to D-Tap Power Cable (18")
- USB Type-A to Micro-USB Type-B Cable (3')
- Ultrathin HDMI Type A Cable (18")
- BNC SDI Cable (10")
- AC Adapter with Cable (6')
- 5 x Antenna
- Battery Cover
- 2 x Screw
- Limited 1-Year Manufacturer Warranty
