Amaran Ray 660c RGB LED Light

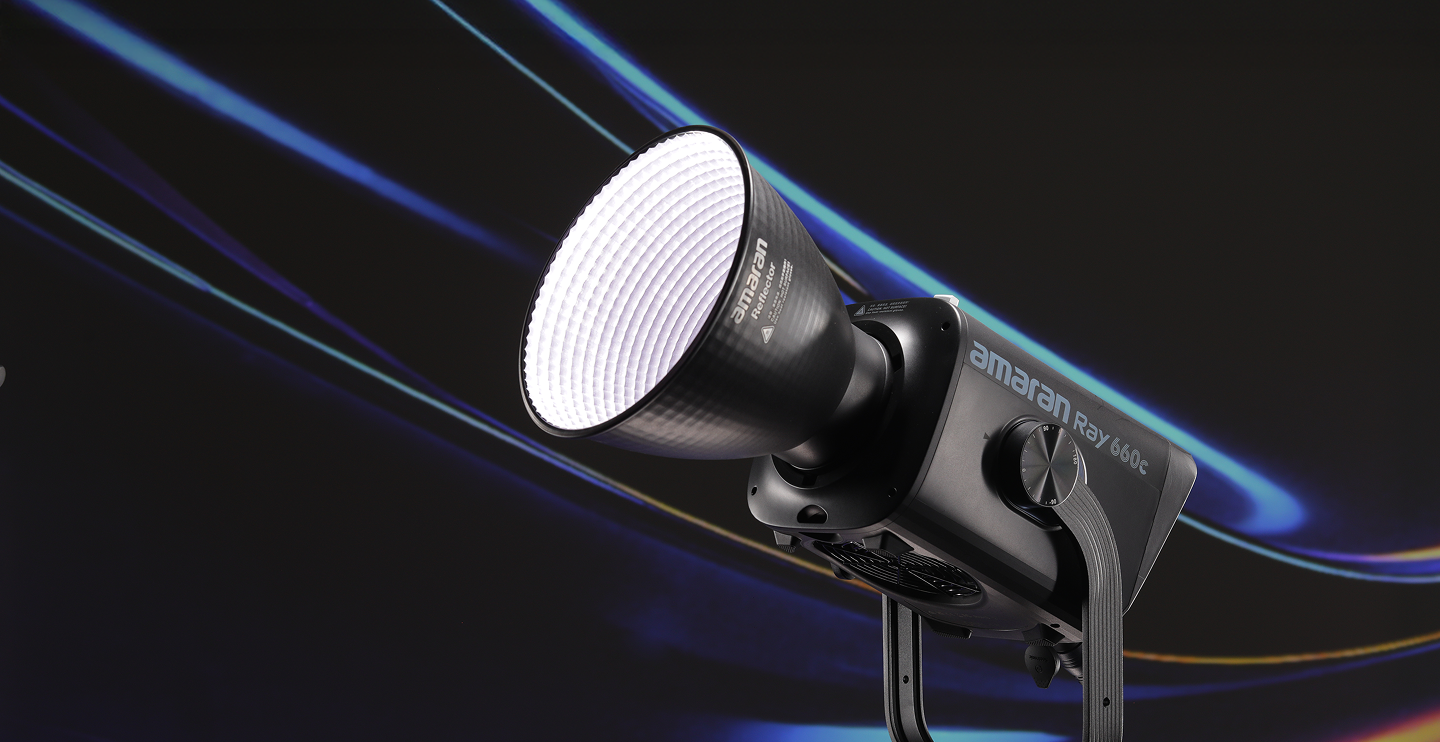

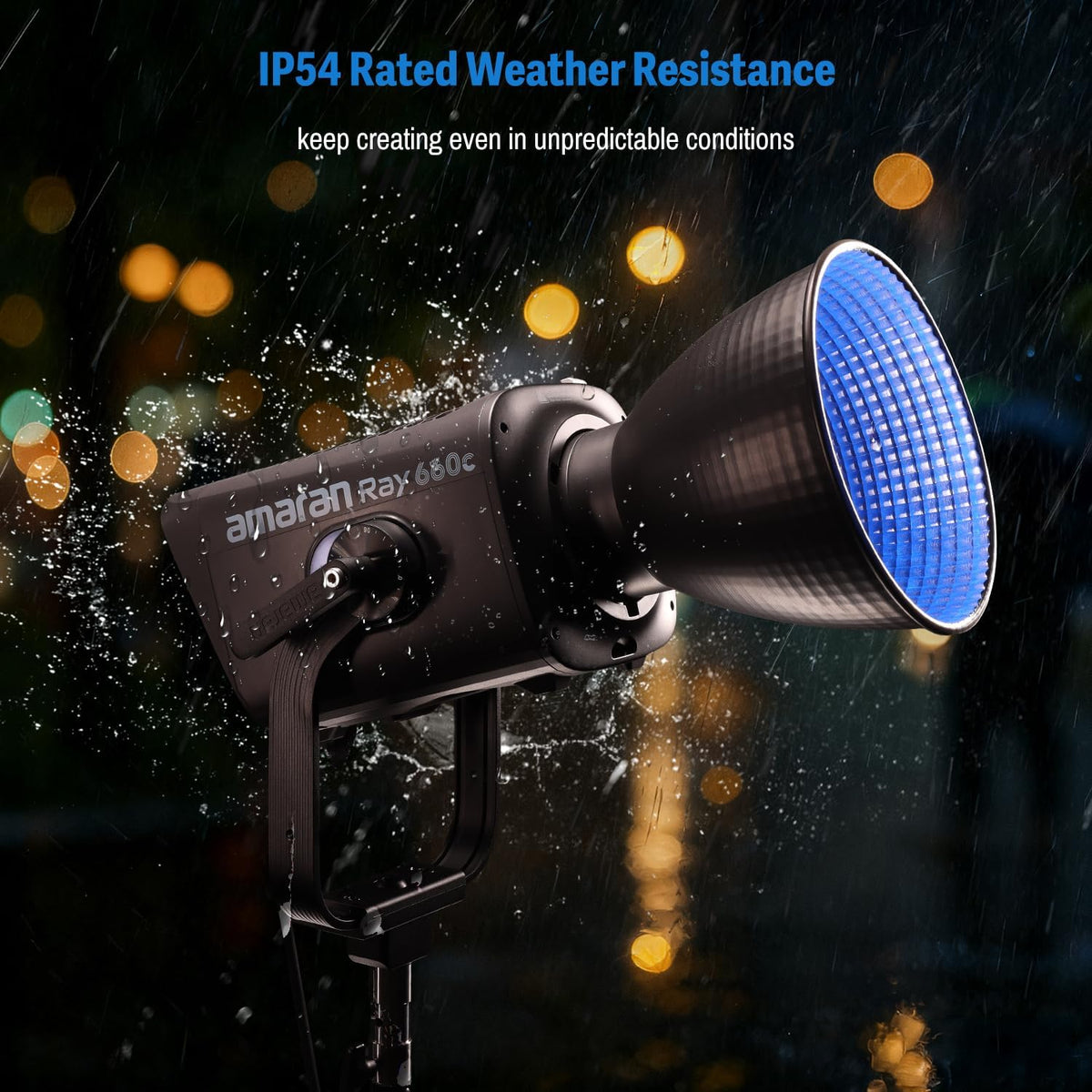

The amaran ray 660c is a 660W full-color RGB LED monolight for Canadian studios, production companies, livestream stages, music-video sets, and advanced creator spaces that need the highest-output Ray fixture. It combines a single-cable integrated AC power design, OmniColor rendering, up to 38500 lux at 1m bare, IP54 dust and splash resistance, and optional DMX via USB-C for scalable lighting control.
Product Details
Product Overview

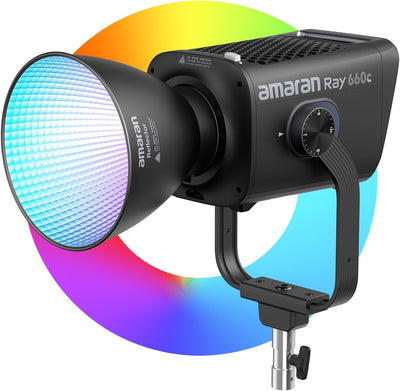

The Ray 660c is the top-output model in the amaran Ray family. It is an amaran ray 660c rgb led monolight with 660W max output, 750W max power consumption, 45904 lumens, 2300-10000K standard CCT, 1800-20000K CCT+, onboard controls, amaran App control, and optional DMX via USB-C. For larger Canadian studios and production teams, the practical difference is output headroom: the 660c can fill wider spaces, push through bigger modifiers, and create stronger full-color looks while keeping the power supply inside the fixture.
Key Features
- 660W full-color COB monolight with integrated power supply, single 5m AC cable workflow, and 750W max power consumption

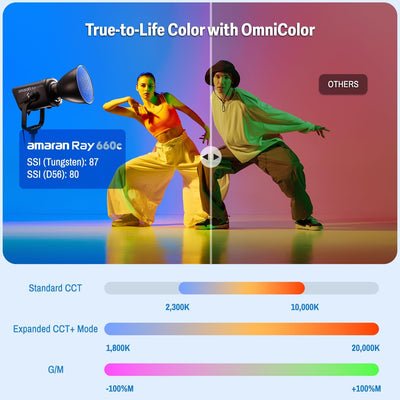

- OmniColor light engine with 2300-10000K standard CCT, 1800-20000K CCT+, CRI 95+, TLCI 95+, SSI 87 P3200, and SSI 80 D56
- Up to 38500 lux at 1m bare, 45904 lumens, 70 degree beam angle bare, and 45 degree beam angle with reflector
- Onboard control, amaran App, optional DMX via USB-C, IP54 dust and splash resistance, active cooling, and 28dBA maximum noise rating at 30C
How It Compares
Choose the Ray 660c when the job needs the brightest Ray output, larger-room coverage, or more headroom for modifiers. Choose the Ray 360c when the setup still needs studio-grade AC power but can use a smaller and lighter fixture. Choose Ray 60c or Ray 120c for compact USB-C PD and Ace E-Lock workflows.
Compatible Accessories and Related Gear
Useful same-system links include the amaran Ray 360c, amaran Fresnel for Ray 360c and 660c, amaran Light Dome 60 Softbox, and amaran Ray 120c.
Who Is This For?
Choose the Ray 660c for studio owners, production companies, music-video crews, houses of worship, schools, livestream stages, and rental kits that need the strongest full-color Ray output.
Who Should Choose Something Else?
Choose something else if you need a lighter fixture, USB-C PD operation, compact battery mounting, lower AC draw, a daylight-only high-output light, or a soft panel instead of a COB monolight.

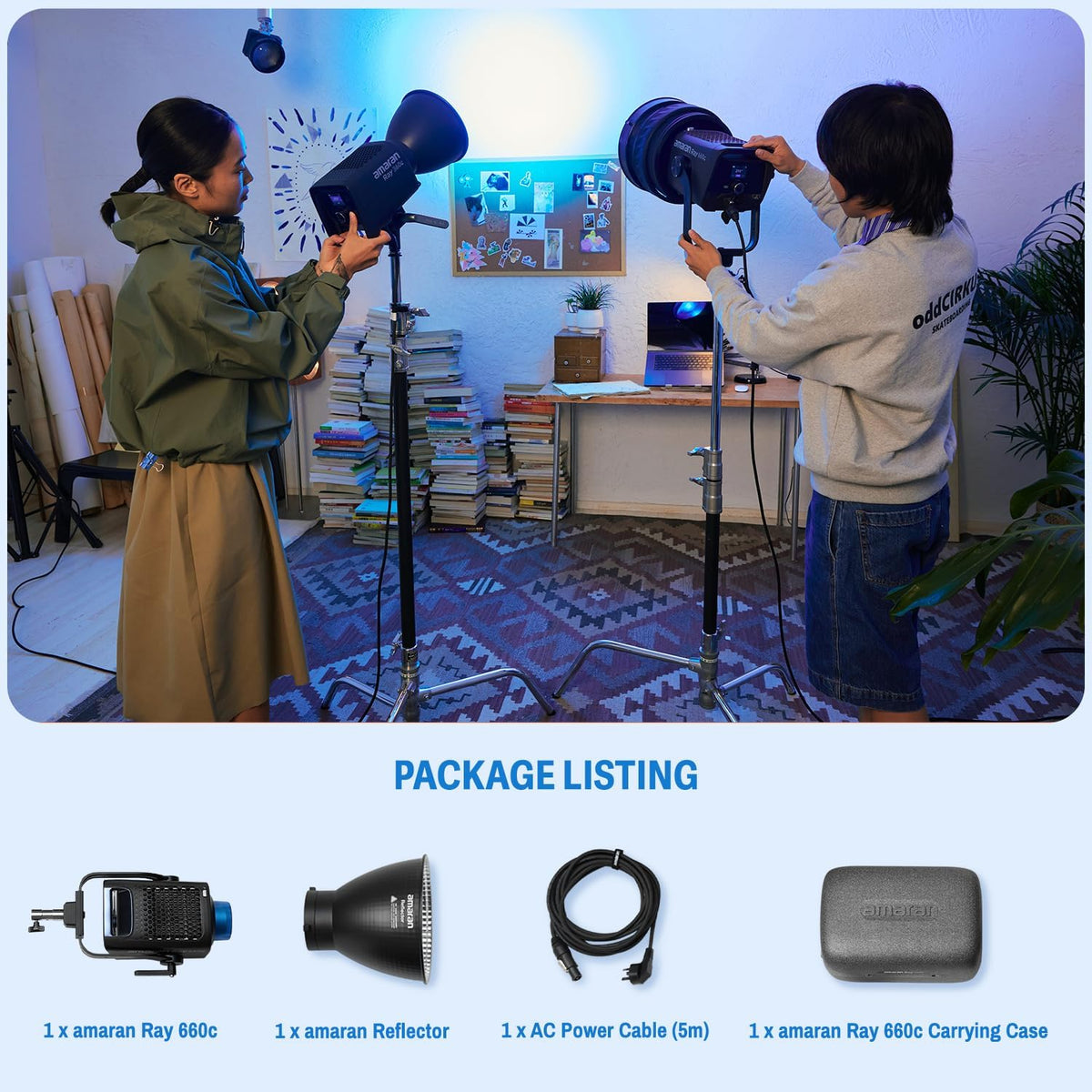

In the Box
- 1x amaran Ray 660c
- 1x amaran Reflector
- 1x amaran AC Power Cable (5m)
- 1x amaran Blue Bowens Mount Protection Cover
- 1x amaran Ray 660c EPP Carrying Case
Specifications
| Output class | 660W max power output, 750W max power consumption |
|---|---|
| Color system | OmniColor full-color chipset, 2300-10000K standard CCT, 1800-20000K CCT+ |
| Color accuracy | CRI 95+, TLCI 95+, SSI 87 P3200, SSI 80 D56, TM-30 RF 94 average |
| Light output | 38500 lux at 1m bare, 45904 lumens, 70 degree bare beam, 45 degree reflector beam |
| Power and control | AC 100-240V, onboard control, amaran App, DMX via USB-C, Bluetooth up to 80m |
| Build | IP54, active cooling, 28dBA max noise at 30C, 5.7kg fixture weight |
FAQ
What is the Ray 660c designed for?
The Ray 660c is built for larger creative spaces, studio interviews, music videos, livestream stages, commercial sets, and crews needing maximum Ray output.
How bright is the Ray 660c?

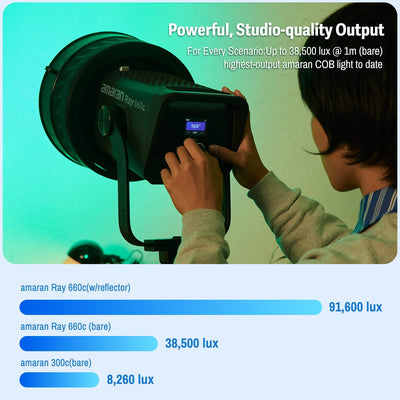

The official bare output is up to 38500 lux at 1m, with 45904 lumens. With the reflector, the official beam angle is 45 degrees.
Does the Ray 660c use one AC cable?

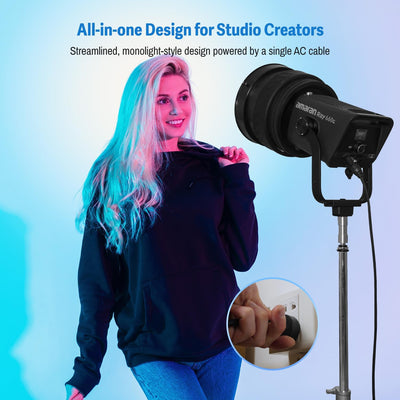

Yes. The Ray 660c integrates the power supply into the fixture and runs from one 5m AC power cable, simplifying larger studio and stage setups.
Can the Ray 660c be controlled by DMX?

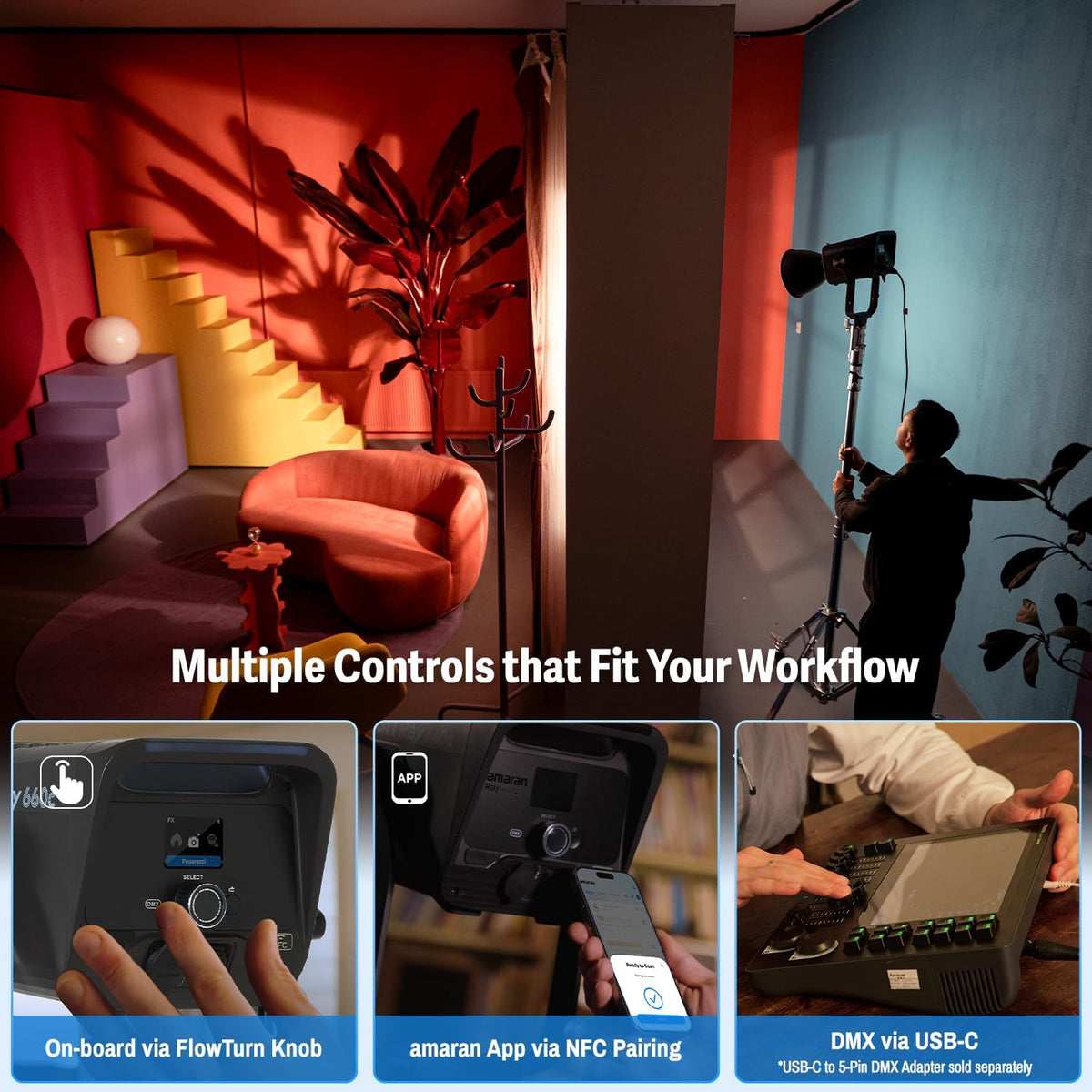

Yes. The official control methods include onboard control, the amaran App, and DMX via USB-C when the optional USB-C to 5-pin adapter workflow is used.
How should I choose between Ray 660c and 360c?
Choose the 660c for maximum Ray output, wider frames, or larger rooms. Choose the 360c when the workflow needs strong studio output in a smaller, lighter fixture.
