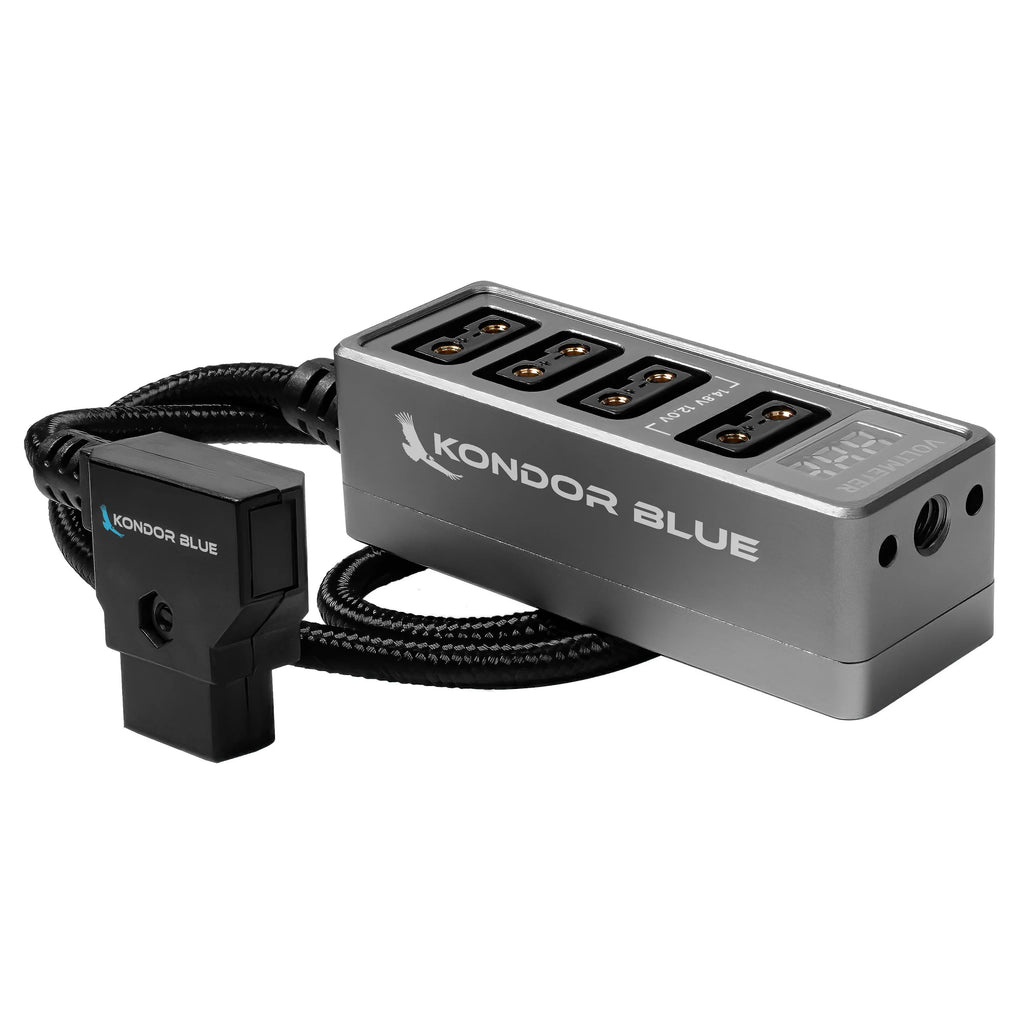

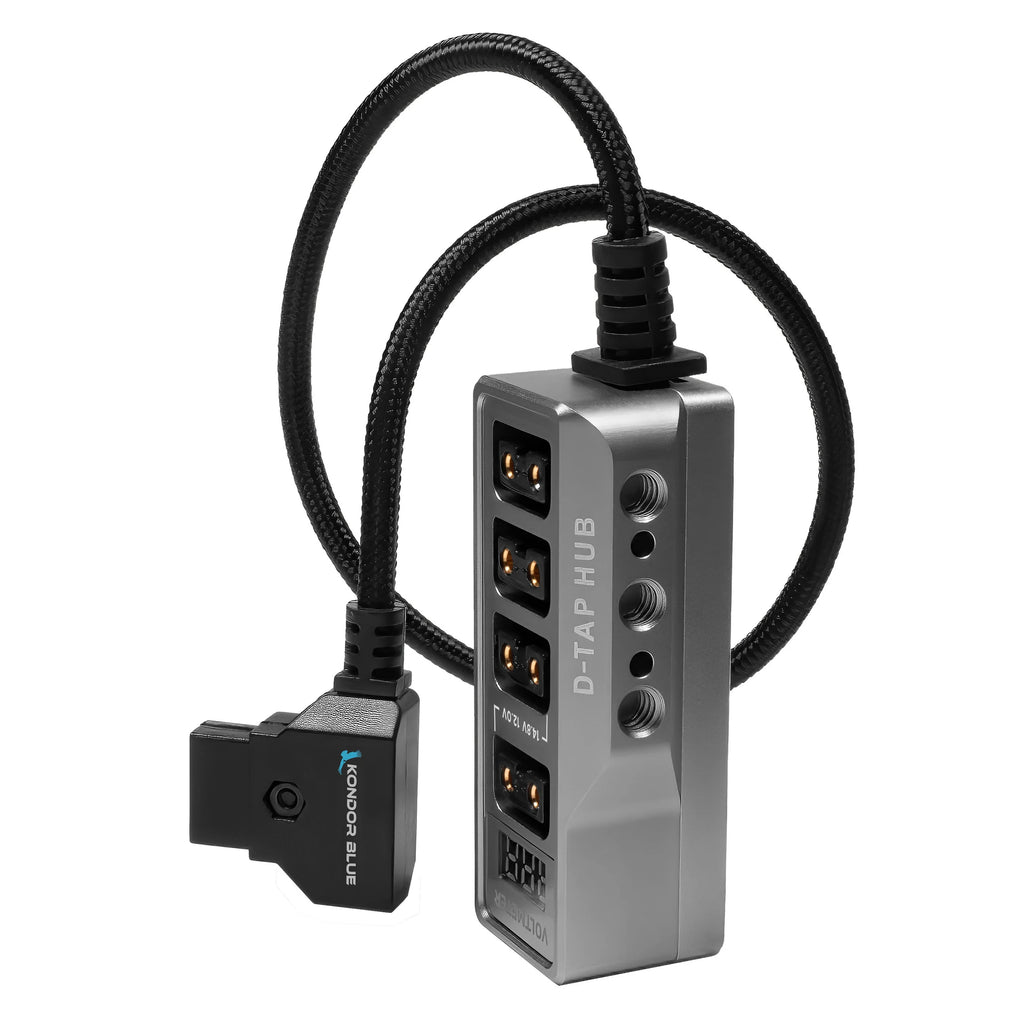

The Kondor Blue D-Tap Hub has become infamous for its all-metal CNC aluminum enclosure and the latest updates have made it even better. The D-Tap Hub now features multiple mounting points on two sides and the bottom—all with ARRI anti-twist holes. This makes mounting a range of accessories that much better and more secure.

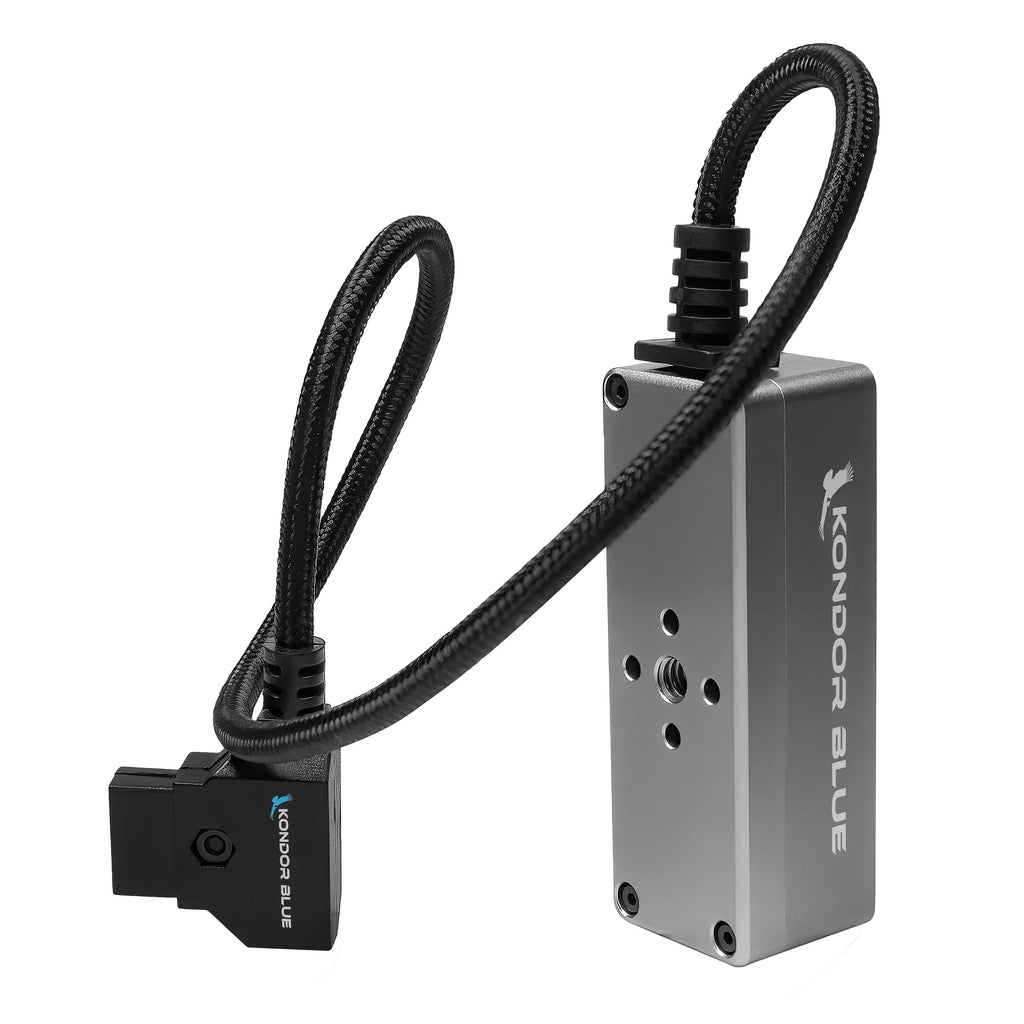

In an effort to keep the profile for this D-tap splitter as thin as possible, the mounting holes aren’t quite as deep as on a cage. Right out of the gate, accessories such as Monitor Cage Rails with interchangeable anti-twist pins work great and Kondor Blue's anti-twist NATO Clamp has a Cinderella fit. Also, any of the Mini Quick Release Plates with the anti-twist cradles also marry up perfectly with the D-Tap Hub. If your mounting accessory seems to be bottoming out, don’t worry, Kondor Blue has you covered with 2x included Rubber O-Rings to help shim and secure whatever you’re mounting.

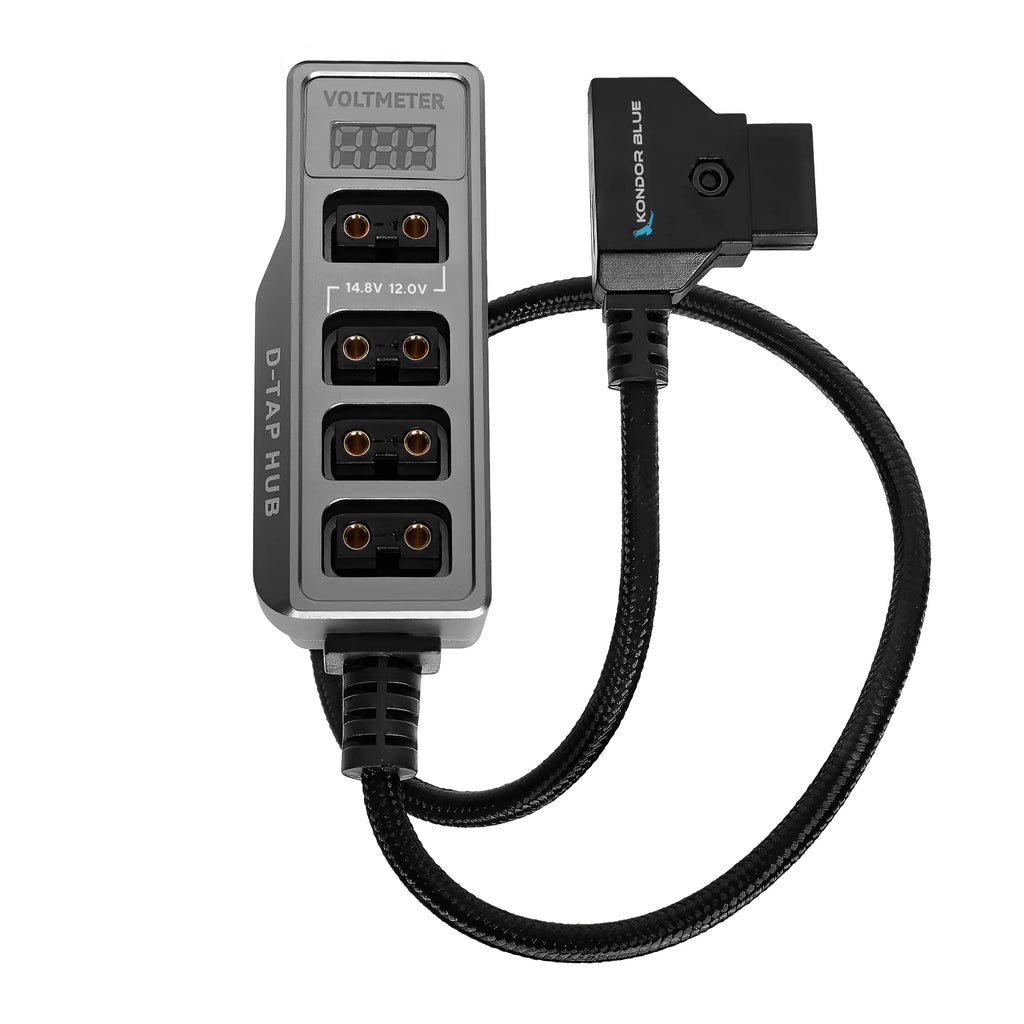

In addition to the variety of mounting options, Kondor Blue has also added a mini voltmeter readout so you can confidently keep track of battery power consumption. With 1x 12.0V and 3x 14.8V, you’ll be set to distribute power to your entire rig making the D-Tap Hub a must-have for your filmmaking kit.
TECH SPECS:
- 75g/ 2.6oz
- 30.5mm W x 22mm T x 75mm D
- Cable is 16" Long
- Front mounting hole is 6mm deep
- Side wing and base mounting holes are 5mm deep
- All four ports will share a max of 12 Amps
- The 12V port max output is 3.5A
- Max input Voltage is 26V
PRODUCT HIGHLIGHTS:
- 5x ¼ mounting hole options; 3x with Arri anti-twist holes
- All aluminum CNC construction
- Voltmeter for Battery Life
- 1x 12.0V port
- 3x 14.8V ports
- 2x included O-Rings for mounting
