amaran Fresnel for Ray 360c & 660c
Pre-order item. For exact lead times, please reach out to our team.
Pairs well with
amaran Fresnel for Ray 360c & 660c

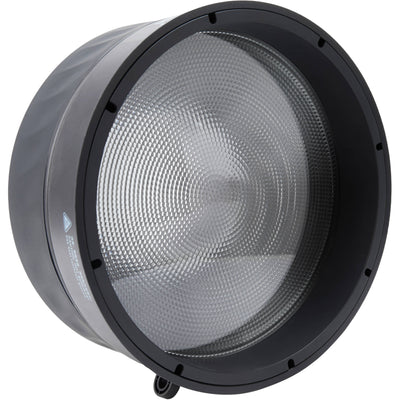

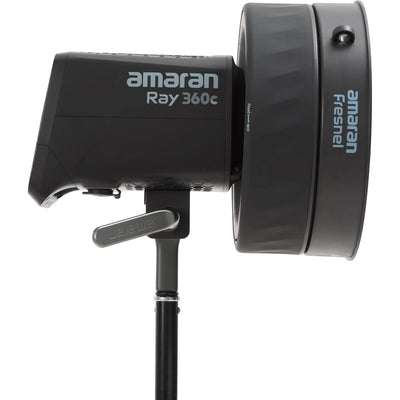

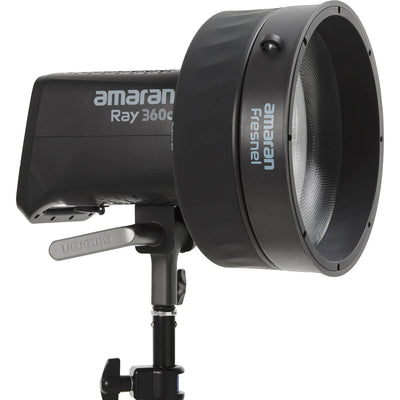

The amaran fresnel for ray 360c and 660c is a Bowens mount Fresnel attachment for Canadian creators and lighting crews using the higher-output amaran Ray full-color COB fixtures. It gives the Ray 360c and Ray 660c a 15 to 45 degree spot-flood beam range, a 9.6in glass lens, and included 4-leaf barn doors for tighter key light, back light, texture, and controlled hard-light work.
Product Overview
This Fresnel is the larger Ray-series focusing modifier for buyers who need more control than a bare COB or open reflector can provide. On Ray 360c it can increase output up to 9x, and on Ray 660c it can increase output up to 7x, while the adjustable beam range lets the same modifier shift from a narrow controlled spot to a wider flood. The included barn doors help cut spill, shape backgrounds, and keep light off walls or talent when the Ray fixture is being used as a punchy set light.
Key Features
- Bowens mount Fresnel attachment designed for amaran Ray 360c and Ray 660c full-color COB lights
- 15 to 45 degree spot-flood beam range for tightening, widening, and shaping the Ray 360c or Ray 660c beam
- Up to 9x output boost with Ray 360c and up to 7x output boost with Ray 660c according to the official product page

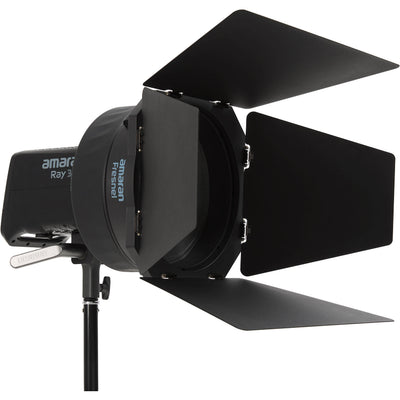

- Large 9.6in / 24.5cm glass lens with included adjustable 4-leaf barn doors for shaping, cutting, and controlling the beam
Best Use Cases
Choose this Fresnel for gaffers, cinematographers, studio teams, school labs, owner-operators, and small crews that need focused output from Ray 360c or Ray 660c.
How It Compares
Choose this Fresnel for amaran Ray 360c and Ray 660c fixtures. Choose the amaran Mini Fresnel for Ray 60c and Ray 120c. Choose a reflector when you need simpler punch without Fresnel focusing, and choose a softbox when the job needs broad soft wrap instead of controlled hard light.
Compatible Accessories and Related Gear
Useful same-system links include the amaran Ray 360c RGB LED Light, amaran Ray 660c RGB LED Light, amaran Mini Fresnel for Ray 60c and 120c, and amaran Mini Reflector for Ray 60c and 120c.
Who Is This For?
Choose this Fresnel for gaffers, cinematographers, studio teams, school labs, owner-operators, and small crews that need focused output from Ray 360c or Ray 660c.
Who Should Choose Something Else?
Choose something else if you use Ray 60c or Ray 120c, need a softbox, need the smallest travel modifier, want a fixed reflector, or do not need spot-flood beam control.
Specifications
| Modifier type | Bowens mount Fresnel attachment |
|---|---|
| Compatible fixtures | amaran Ray 360c and amaran Ray 660c |
| Beam angle | 15 degree spot to 45 degree flood |
| Lens | 9.6in / 24.5cm glass lens |
| Dimensions and weight | Fresnel: 33.3 x 19.7cm, 2.4kg / 5.29lb |
| Barn doors | Adjustable 4-leaf barn doors, 49.5 x 33.1 x 8.0cm, 1.6kg / 3.53lb |
In the Box
- 1x amaran Fresnel
- 1x adjustable 4-leaf barn doors
FAQ
What is the amaran Fresnel for Ray 360c and 660c used for?
It is used to focus and shape the beam from amaran Ray 360c and Ray 660c fixtures, giving crews a tighter spot, wider flood, and barn-door control from one Bowens mount modifier.
What beam range does the amaran Fresnel offer?
The official specifications list a 15 degree spot and 45 degree flood range, so buyers can use it for a tighter punchy beam or a wider controlled hard-light look.
How much output boost can it add?
The official product page lists up to 9x output boost with Ray 360c and up to 7x output boost with Ray 660c, with Ray 360c reaching up to 18110 lux at 3m.
How does this compare with the amaran Mini Fresnel?
Choose this larger Fresnel for Ray 360c and Ray 660c. Choose the Mini Fresnel when the fixture is an amaran Ray 60c or Ray 120c and the setup needs a smaller modifier.
Can Filmgear Canada help match this Fresnel to a Ray fixture?
Yes. Filmgear Canada can help Canadian buyers compare Ray 360c, Ray 660c, this Fresnel, Ray 60c and 120c accessories, stands, and modifier choices for the job.
