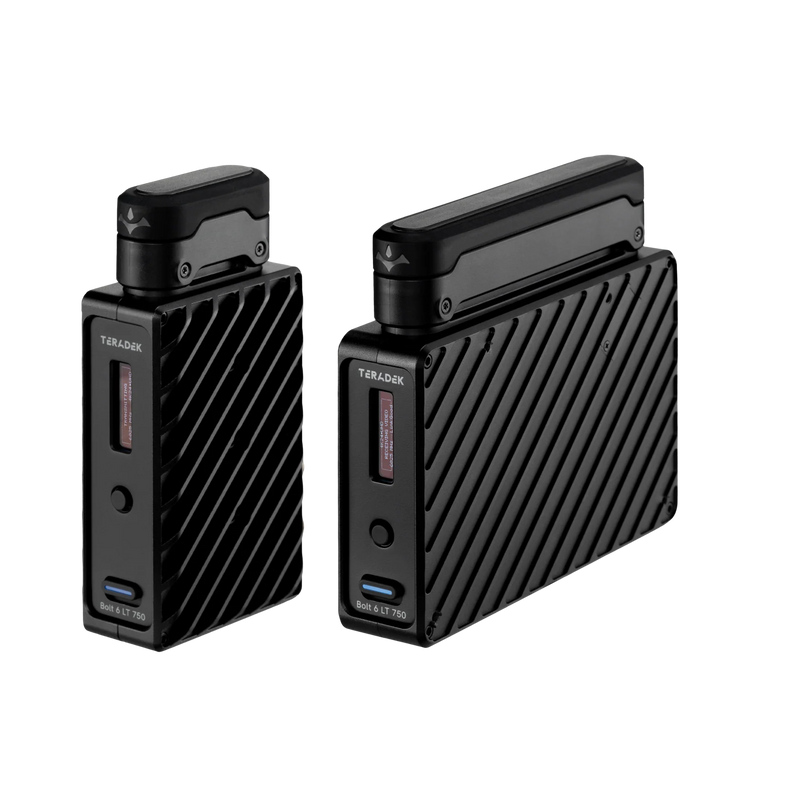

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas

The Teradek Bolt 6 LT 750 kit is a zero-delay wireless video transmitter and receiver pair with internal antennas, 3G-SDI and HDMI connectivity, and a rated line-of-sight range up to 750ft. It operates across 5GHz and 6GHz bands for camera-to-monitor, director, focus, DIT, and video-village workflows that need reliable untethered monitoring.

Product Overview

Bolt 6 LT carries visually lossless video with delay under 0.001 second and supports up to 4K30 through HDMI plus professional 3G-SDI formats. The 750ft transmitter can multicast to as many as six compatible receivers, while AES-256 encryption protects the link. This kit uses permanently integrated antennas, so the transmitter and receiver should be kept vertical with the antenna areas clear. Before a shoot, match input and output format, SDI or HDMI cable, colour and HDR workflow, channel band, region, range, obstacles, power, mounting, receiver count, firmware, and backup cabling.

Key Features

750ft Zero-Delay Link

Carries monitoring video up to 750ft line of sight with delay under 0.001 second for focus, camera, director, and video-village use.

5GHz and 6GHz Operation

The additional 6GHz band gives crews more channel choices in supported regions, including Canada, when 5GHz environments are congested.

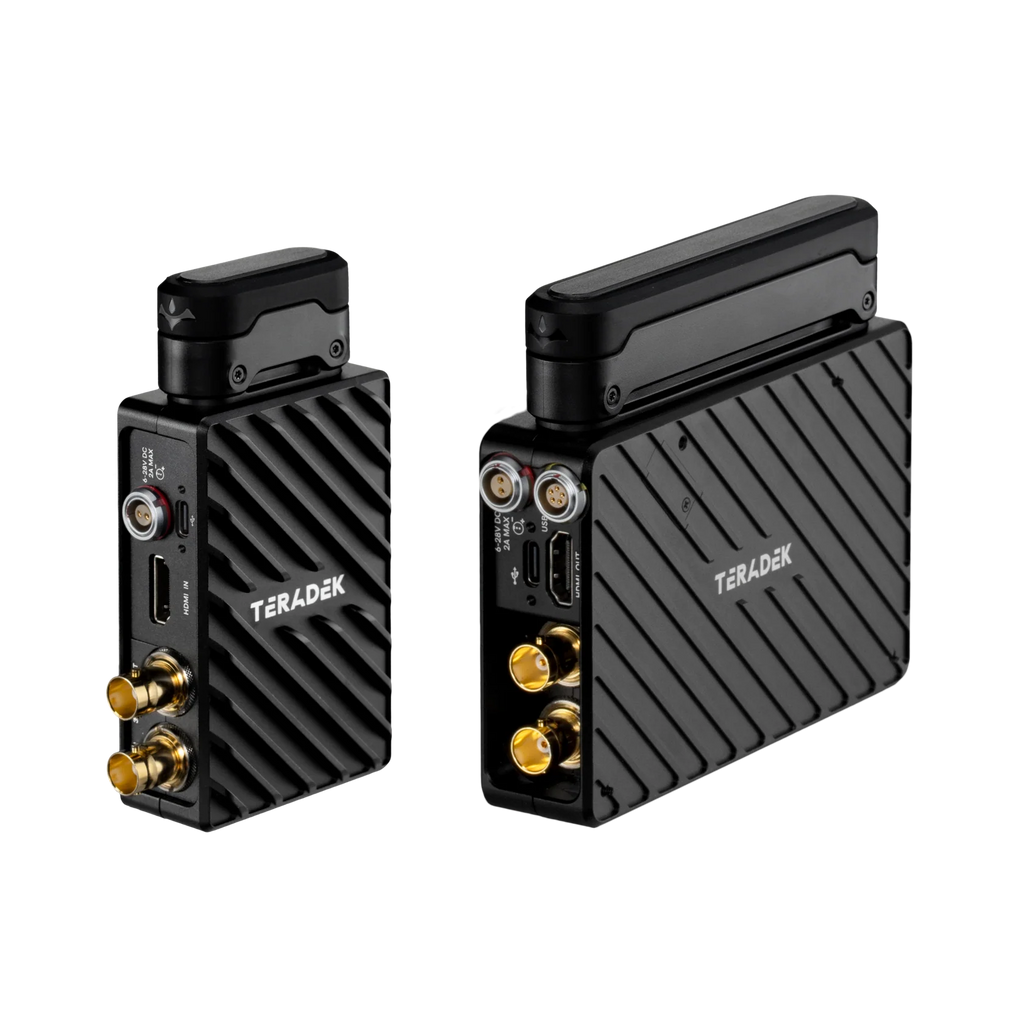

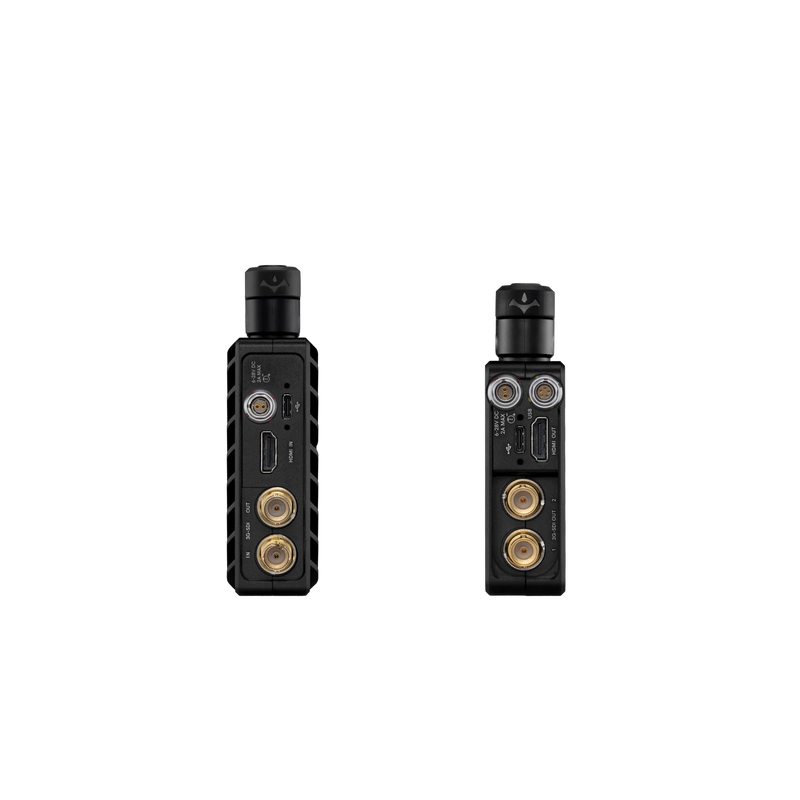

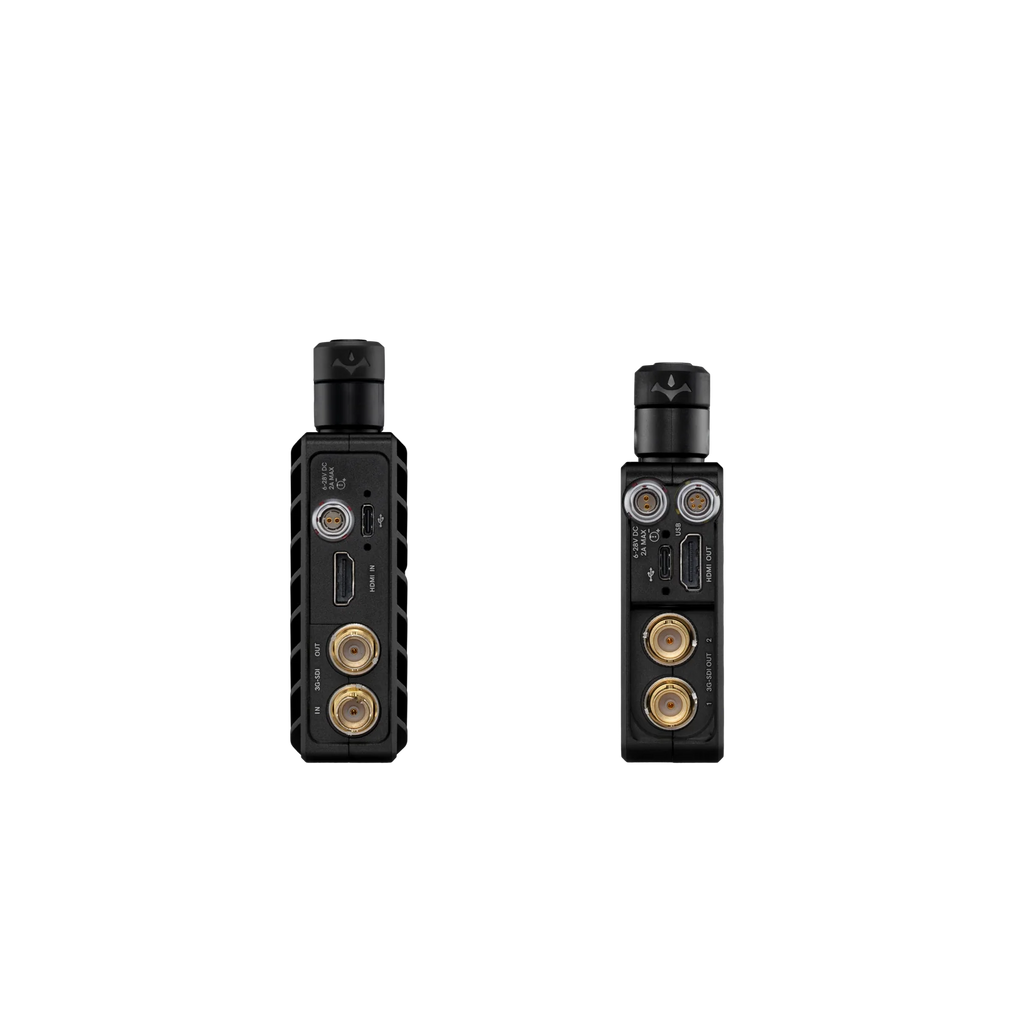

3G-SDI, HDMI, and Internal Antennas

Use SDI or HDMI camera and display paths in a compact TX/RX package without removable external antenna elements.

How It Compares

Choose the LT 750 internal-antenna kit as a wireless video signal transmitter and receiver for compact short-to-medium range monitoring and simpler physical handling. For a 4K wireless video transmitter workflow, confirm that the planned HDMI format stays within the supported 4K30 limit. Choose a 1500ft or MAX system for longer sets, external-antenna models for more antenna-placement flexibility, or a monitor module for direct SmallHD Smart 7 integration.

Compatible Accessories and Related Gear

Bolt 6 LT 750 internal kit with Gold Mount and Bolt 6 LT 750 internal kit with V-Mount. Match Bolt 6 / Bolt 4K / Ace interoperability, the shortest device range, SDI or HDMI format, 5GHz or 6GHz region, receiver count, firmware, 6 to 28V power, cable, monitor input, camera output, mount, and internal-antenna clearance.

Who Is This For?

For camera crews, focus pullers, directors, DITs, steadicam and gimbal teams, rental houses, studios, live production, and video village.

Who Should Choose Something Else?

Choose 1500ft or MAX for longer range, an external-antenna model for antenna repositioning, a monitor module for Smart 7 integration, or a wired SDI path when RF congestion and obstacles make cable more dependable.

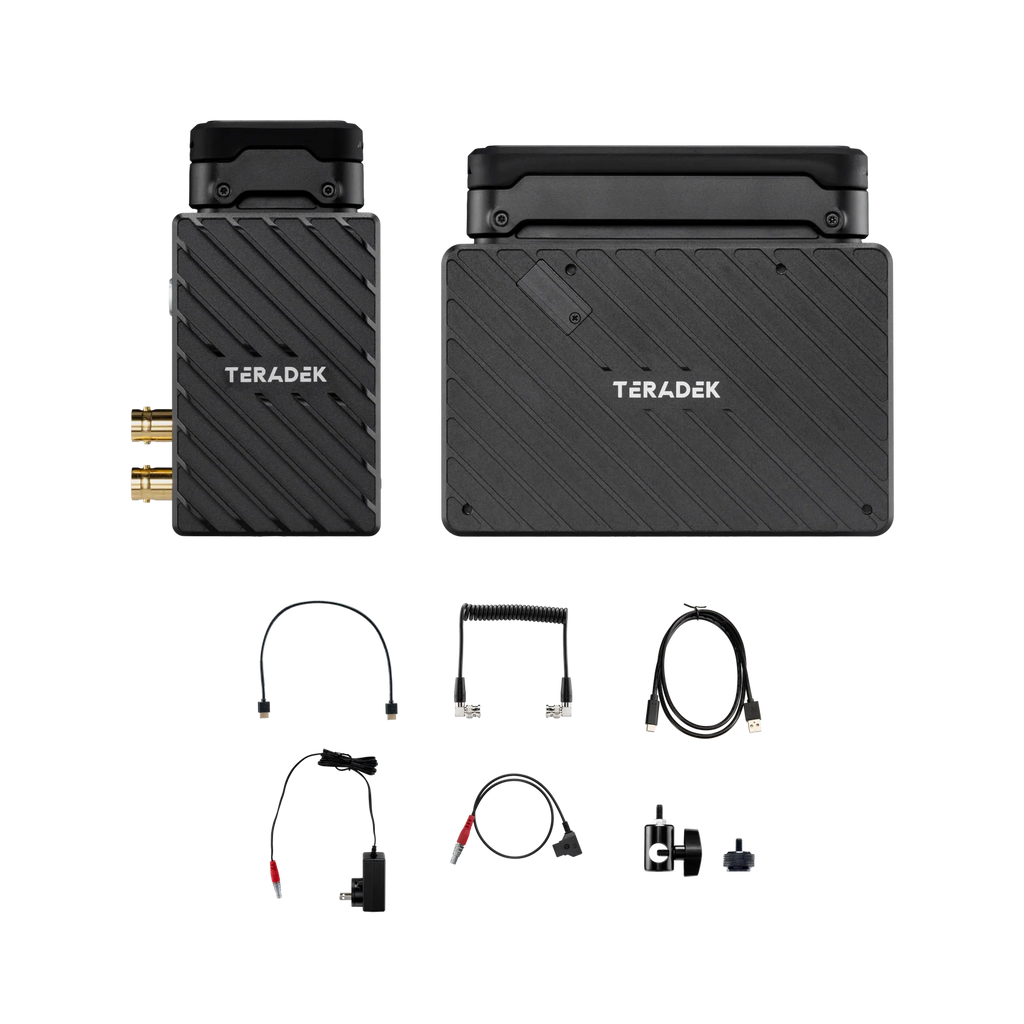

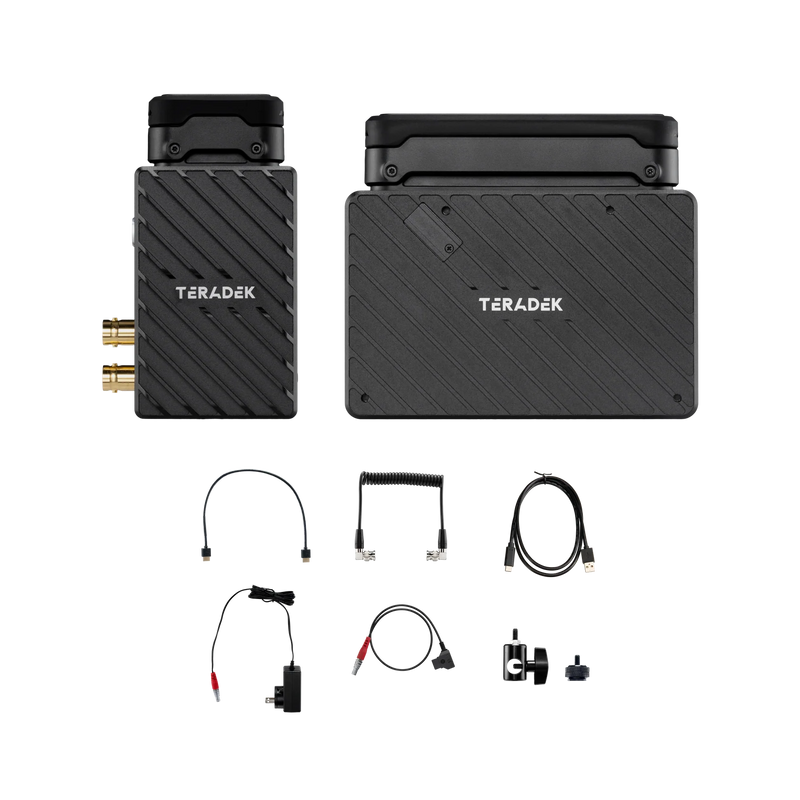

In the Box

• Teradek Bolt 6 LT 750 internal-antenna transmitter
• Teradek Bolt 6 LT 750 internal-antenna receiver

Specifications

• Range: up to 750ft / 229m line of sight
• Delay: under 0.001 second without format conversion
• Video: HDMI up to 4K30 and 3G-SDI
• Radio bands: 5GHz and 6GHz
• Multicast: one transmitter to up to six receivers
• Encryption: AES-256
• Power input: 6 to 28V DC
• Antenna style: permanently integrated internal antennas

Product Video

Watch the Teradek manufacturer presentation to inspect pairing, signal monitoring, range planning, and the Bolt 6 production workflow.

FAQ

What range does the Bolt 6 LT 750 internal-antenna kit provide?
Teradek rates the 750 model for up to 750ft or 229m line of sight. Walls, people, vehicles, RF congestion, antenna orientation, mounting, and the shortest-range paired device can reduce practical range.

Does Bolt 6 LT 750 support SDI and HDMI?
Yes. The LT transmitter and receiver provide professional SDI and HDMI video paths, with up to 4K30 over HDMI and 3G-SDI formats for camera and monitoring workflows.

How many receivers can one Bolt 6 LT transmitter feed?
The 750 and 1500 LT systems can multicast from one transmitter to as many as six compatible receivers, with final performance limited by the paired models and RF conditions.

What changes with internal rather than external antennas?
Internal antennas are permanently built into the units. Keep each unit vertical and its antenna area clear; choose external-antenna models when relocating or changing antenna orientation is important.

Where can I buy Teradek Bolt 6 LT 750 in Canada?
Filmgear Canada supplies Bolt 6 LT systems with Canada-wide shipping and Vancouver-based help for range, SDI, HDMI, receivers, power, mounting, firmware, and RF planning.
