Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)

TeradekSKU: 10-2260-G

Price:
Sale price$5,166.00

Shipping calculated at checkout

Stock:
Re-stocking soon

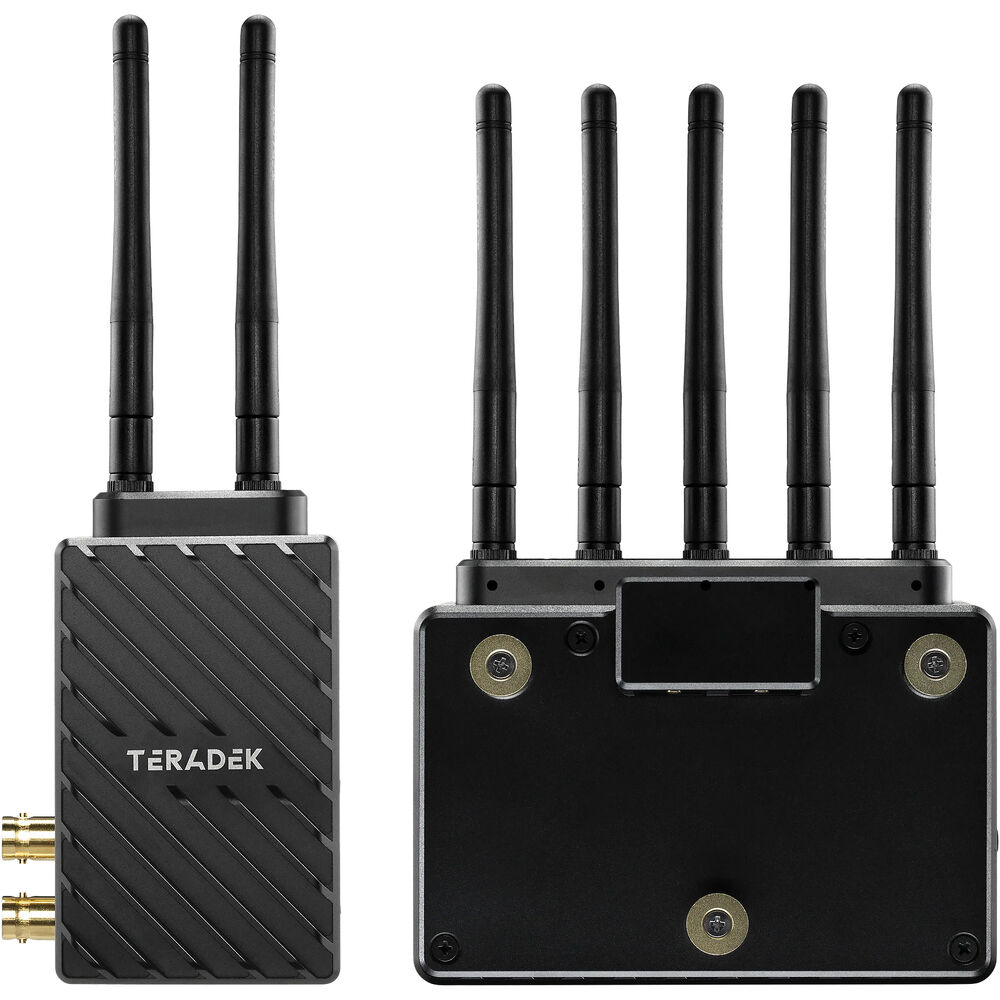

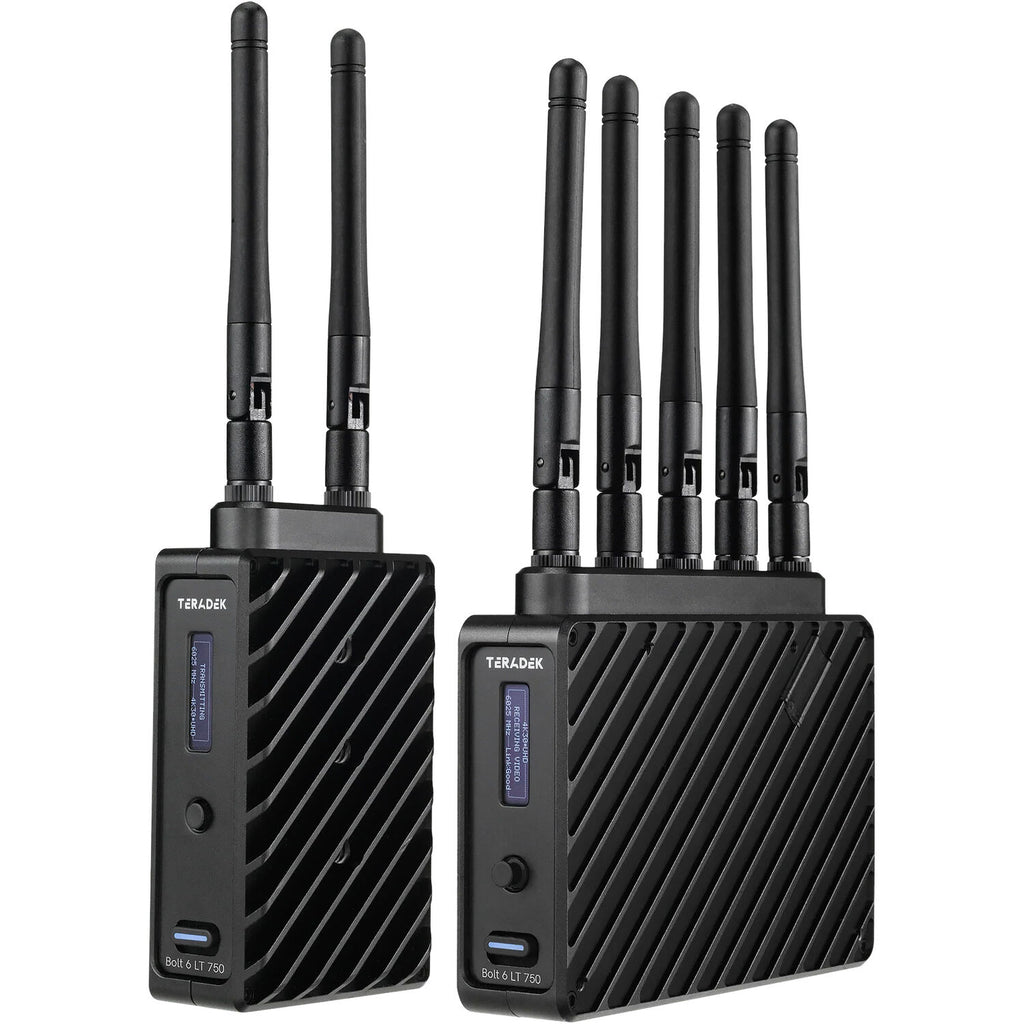

Bolt 6 LT is a wireless video transmission system that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies. External Antenna models now ship with new flexible V-antennas.

Bolt 6 LT Sets offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter.

The 750 model includes V (vertical) antennas. 1500 and MAX models include both V antennas and H (horizontal) antennas. H antennas are designed to maximize signal robustness in the most challenging RF environments.

Optionally, the 750 model of Bolt 6 LT can include permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.

Kit options include the Transmitter and Receiver by themselves or within a Deluxe kit that also includes Gold or V-Mount Battery plates.

KEY FEATURE
  • Supports New 6 GHz Frequency Band
  • Transmit Video up to 750' Line of Sight
  • HDMI and 3G-SDI Inputs and Outputs
  • Transmit up to 4K30 Video

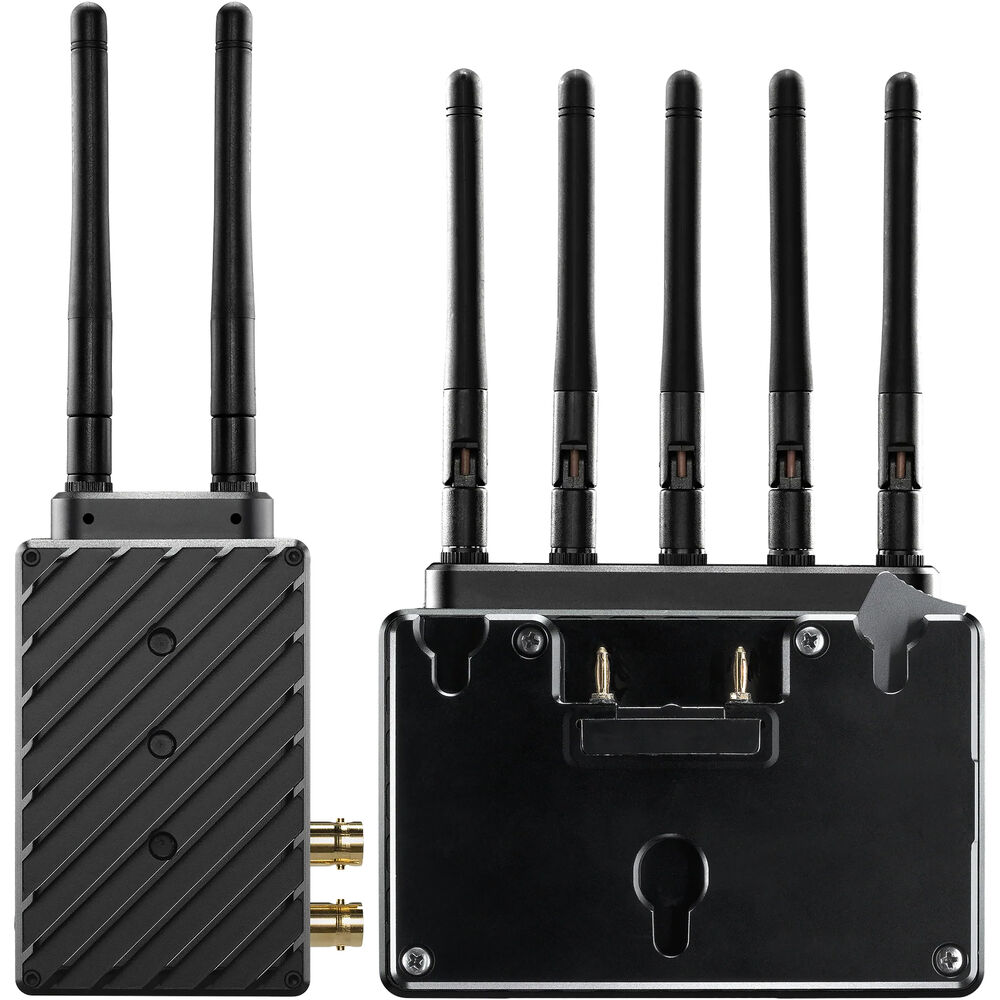

  • Gold Mount RX Battery Plate
  • 10-Bit 4:2:2 Support, No Delay
  • Compatible with Bolt 4K LT TX/RX Units

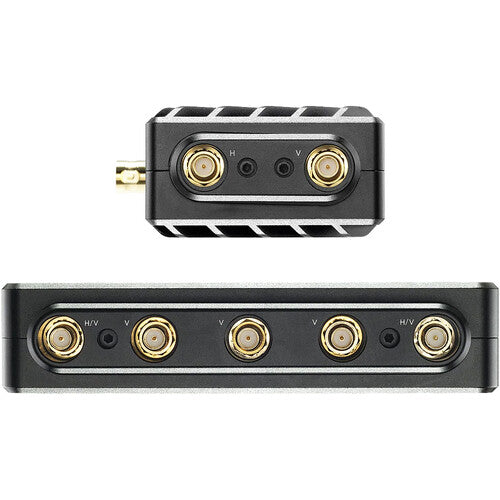

  • AES-256 Encryption, 7 Antennas
  • Bluetooth Mobile App, Spectrum Analyzer

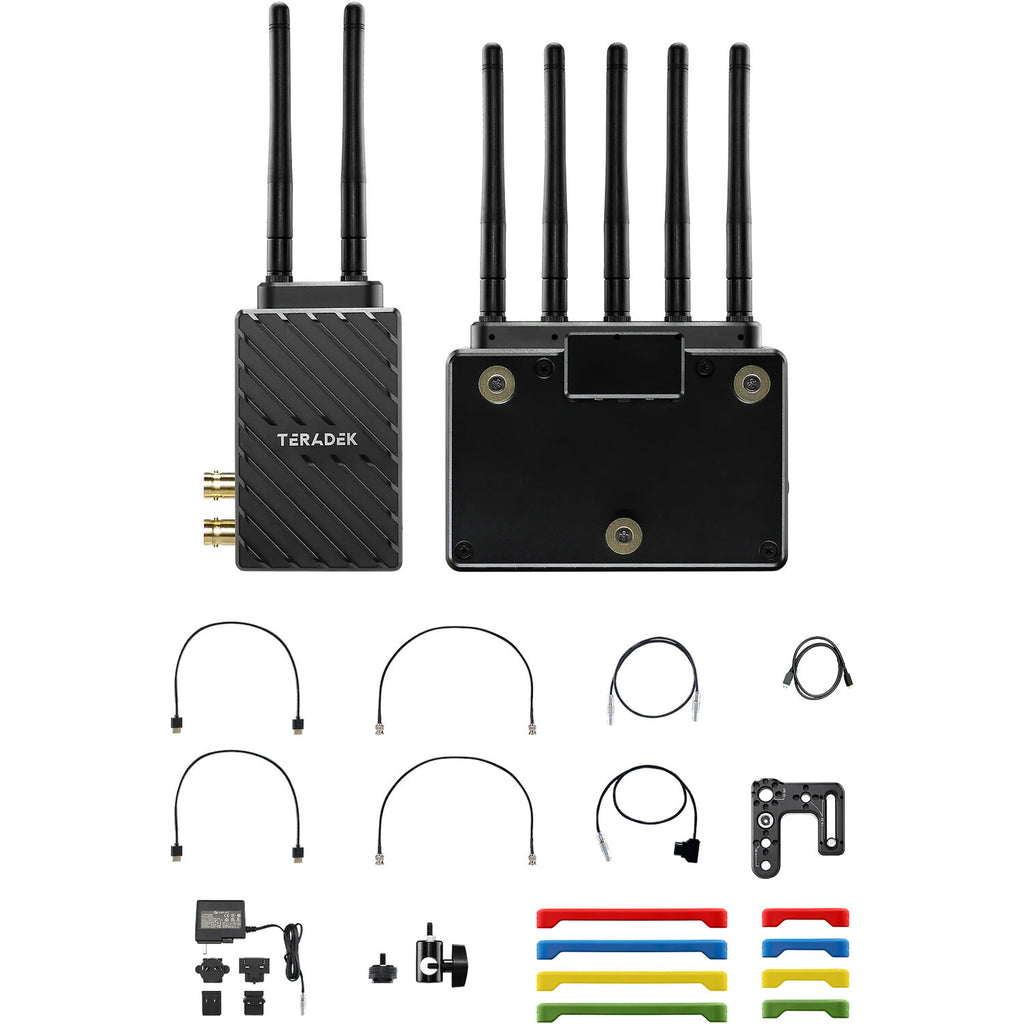

    IN THE BOX
    • Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)
    • Bolt 6 LT 750 3G-SDI/HDMI Transmitter
    • Bolt 6 LT 750 3G-SDI/HDMI Receiver (Gold Mount)
    • 2-Pin to D-Tap Power Cable (18")
    • USB-A 2.0 Male to Micro-USB Male Cable (39")
    • 2 x HDMI Type A Male to HDMI Type A Male Cable (18")
    • 2 x BNC to BNC SDI Cable (10")
    • 2-Pin to 2-Pin Connector for ALEXA (18")
    • AC Adapter with Cable (6')
    • 7 x Antenna
    • 1/4"-20 Light Stand Adapter
    • Shoe Adapter
    • 2 x Screw
    • Wooden Camera Offset Mount
    • Limited 1-Year Manufacturer Warranty
