Bolt 6 XT TX is a wireless video transmitter that supports up to 4K60 10-bit 422 HDR video over SDI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
Bolt 6 XT TX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode.
The Transmitter is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

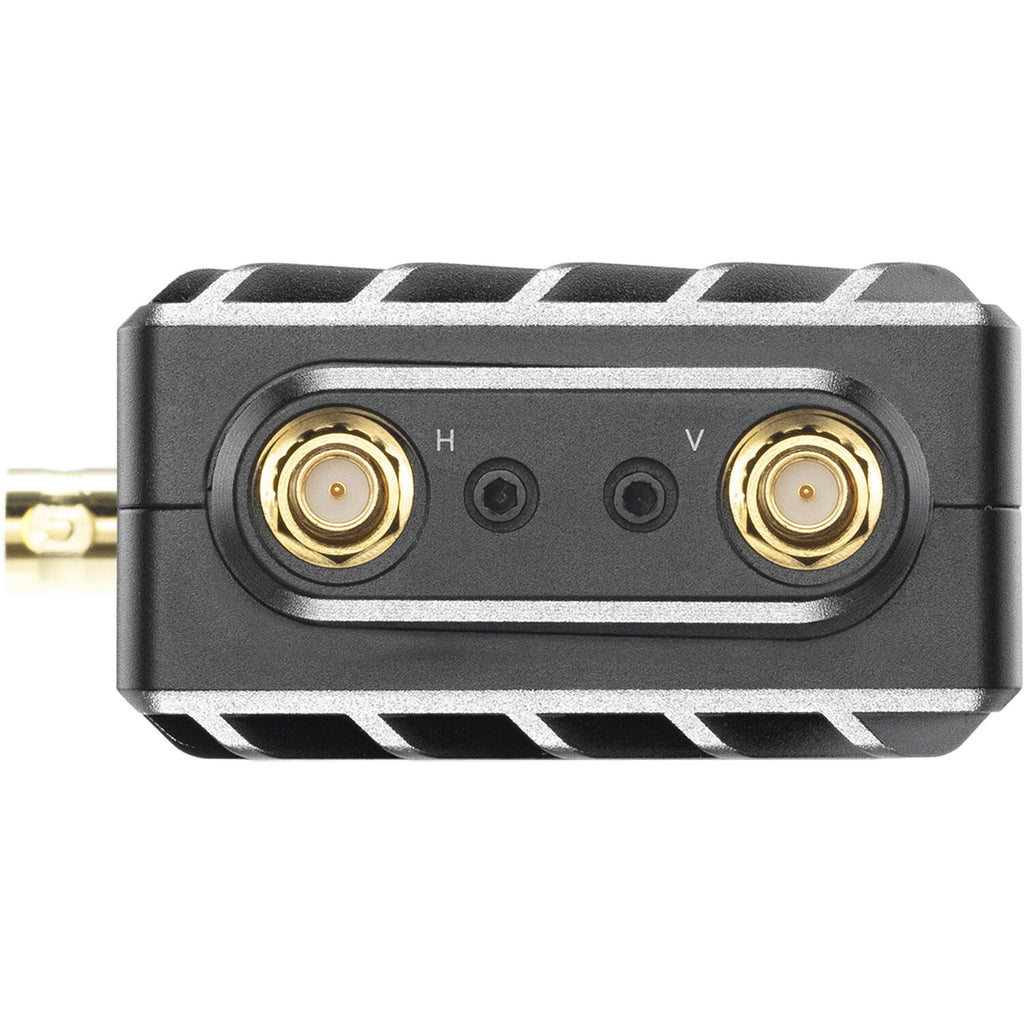

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.
KEY FEATURE
- Supports New 6 GHz Frequency Band
- Transmit Video up to 750' Line of Sight

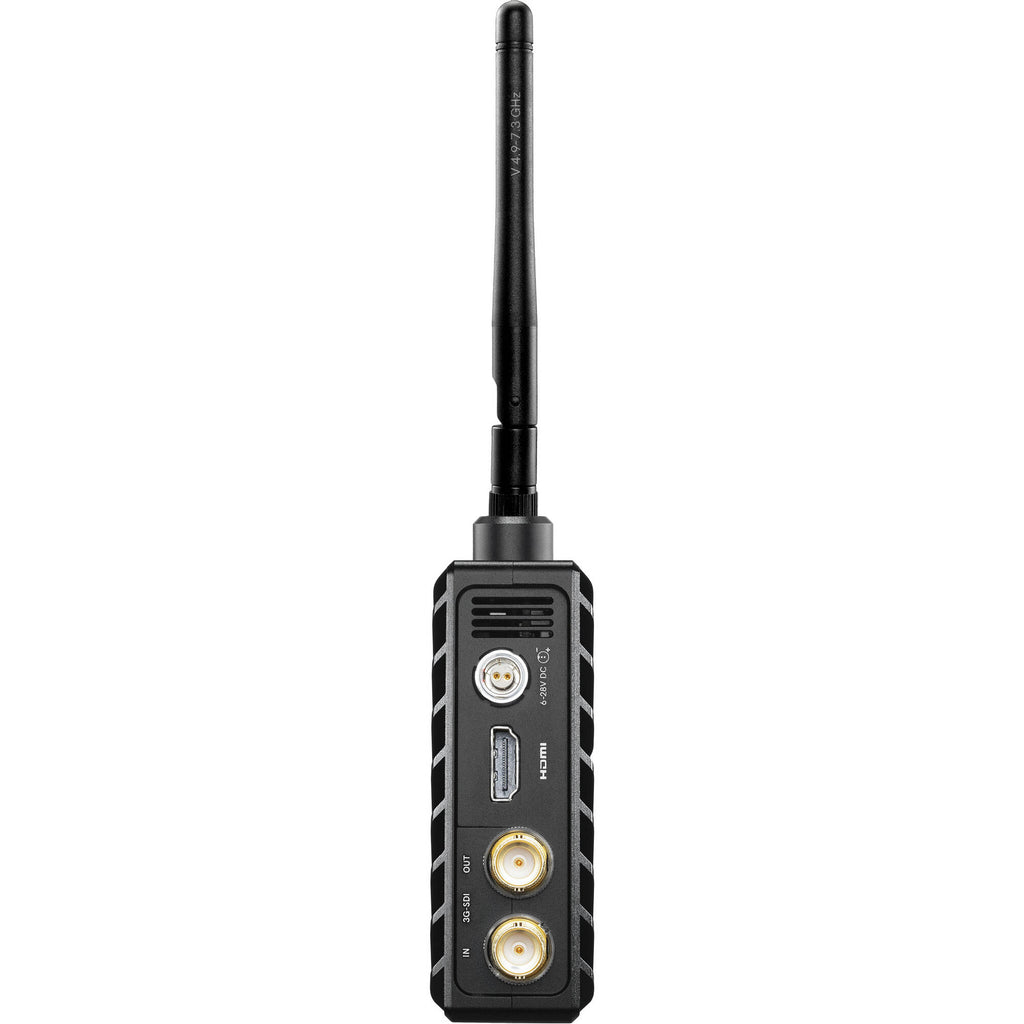

- 3G-SDI and HDMI Input, SDI Output
- Transmit to up to 6 x RXs
- 10-Bit 4:2:2 HDR Support
- Compatible with all Bolt 4K 5G Devices
- AES-256 Encryption, 2 x Antennas
- Bluetooth Mobile App, Spectrum Analyzer
IN THE BOX
- Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter
- 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to Micro-USB Male Cable (39")
- HDMI Type A Male to HDMI Type A Male Cable (18")
- BNC to BNC SDI Cable (10")
- AC Adapter with Cable (6')
- 2 x Antenna
- Limited 1-Year Manufacturer Warranty
