Aputure Motorized CF16 Fresnel w/ Flight Case

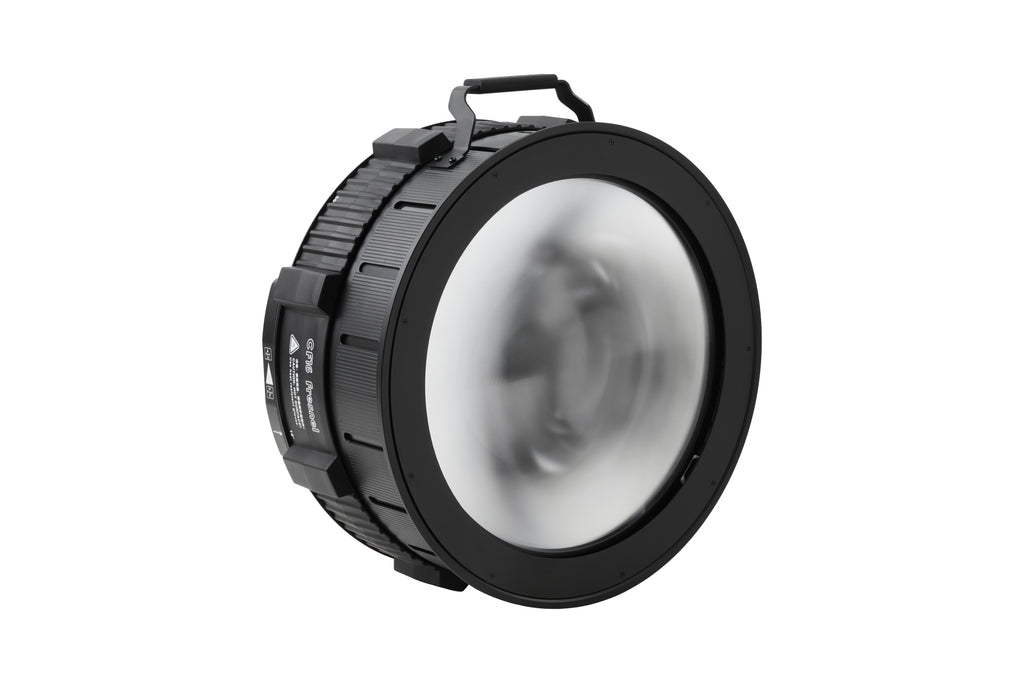

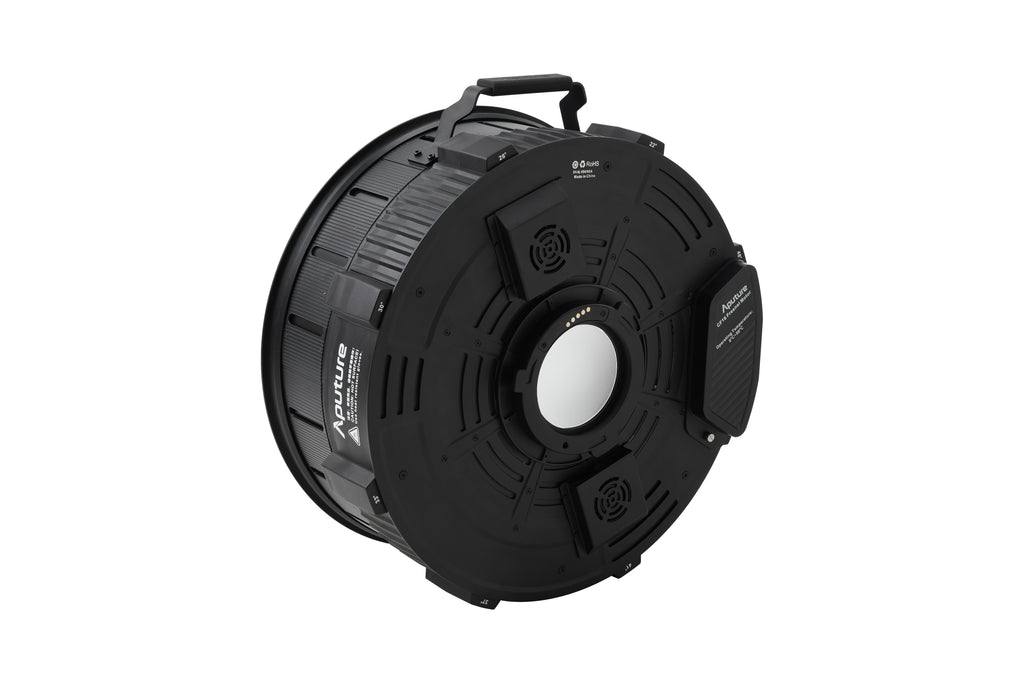

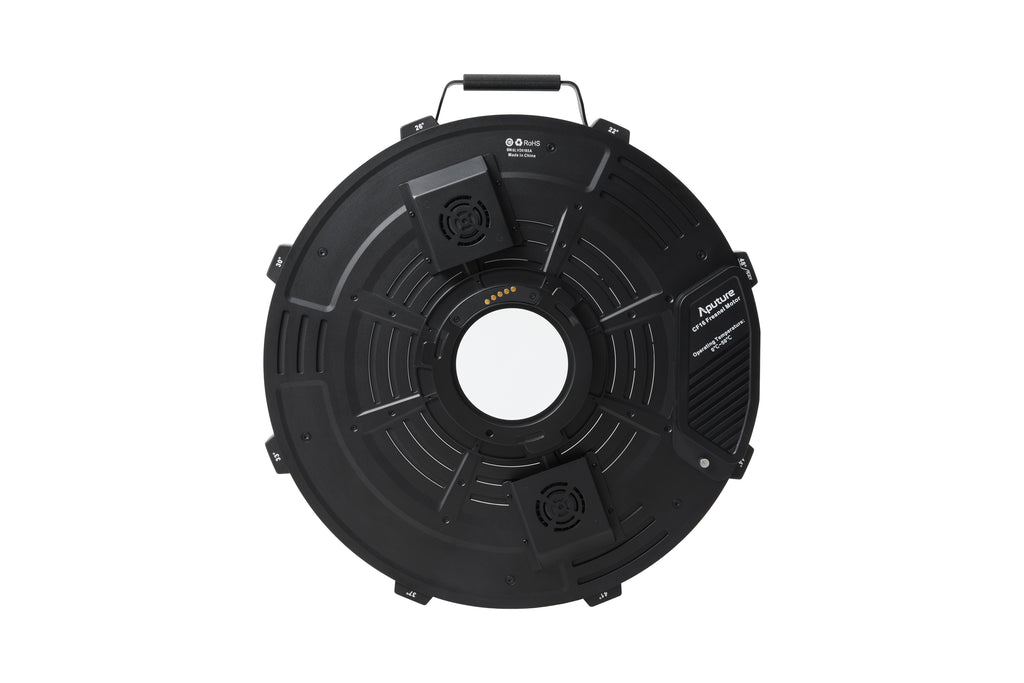

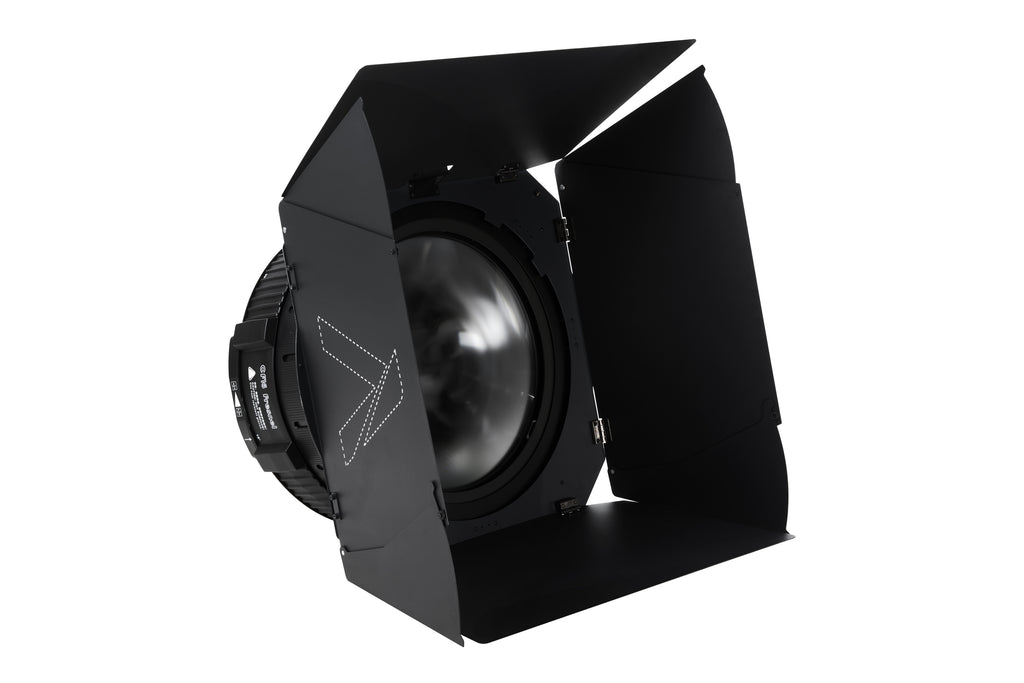

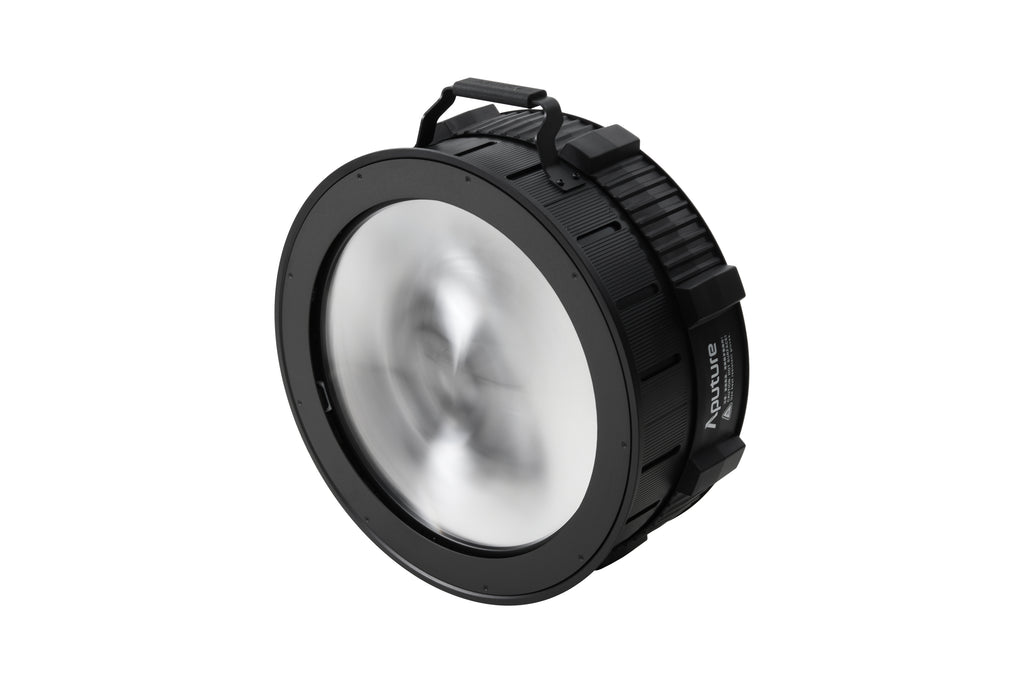

The Motorized CF16 Fresnel is a compact motorized Aputure Mount fresnel with a 16-inch diameter lens and a spot-flood range of 18º-50º. It is designed for use with the STORM XT52. The Motorized CF16 Fresnel efficiently intensifies the native light output of the STORM XT52 by up to seven times. It provides a smooth falloff from center to edge, all with a compact and lightweight form factor utilizing an internal focusing system. This unique system allows the Motorized CF16 Fresnel to increase the distance between its rear and front elements internally, maintaining a consistent and compact overall size. With its built in motorized focusing system, the Motorized CF16 Fresenel can be precisely controlled at the fixture’s lamp head or remotely via Sidus Link, Sidus Link Pro, or a lighting control console via DMX. The Motorized CF16 Fresnel can be paired with the included CF16 Barn Doors to give users more shaping control over the output of their STORM XT52. The 8-leaf barn doors also include a holder for a scrim. For additional convenience, the Motorized CF16 Fresnel and its CF16 Barn Doors fit into the CF16 Flight Case for storage and transportation. A separately available CF16 Fresnel Manual Focus Cover is available for users who wish to operate the Motorized CF16 Fresnel manually. This cover plate must be installed to operate the CF16 safely as it drives the fresnel’s onboard fans and maintains the unit’s IP65 rating.

• 16-inch compact motorized Aputure Mount fresnel designed for the STORM XT52
• 18º to 50º spot-flood range
• Motorized dual-expanding focusing system drastically reduces fresnel size and weight while allowing precise remote focusing
• 7x intensification of XT52 output
• IP65 weather resistant rating

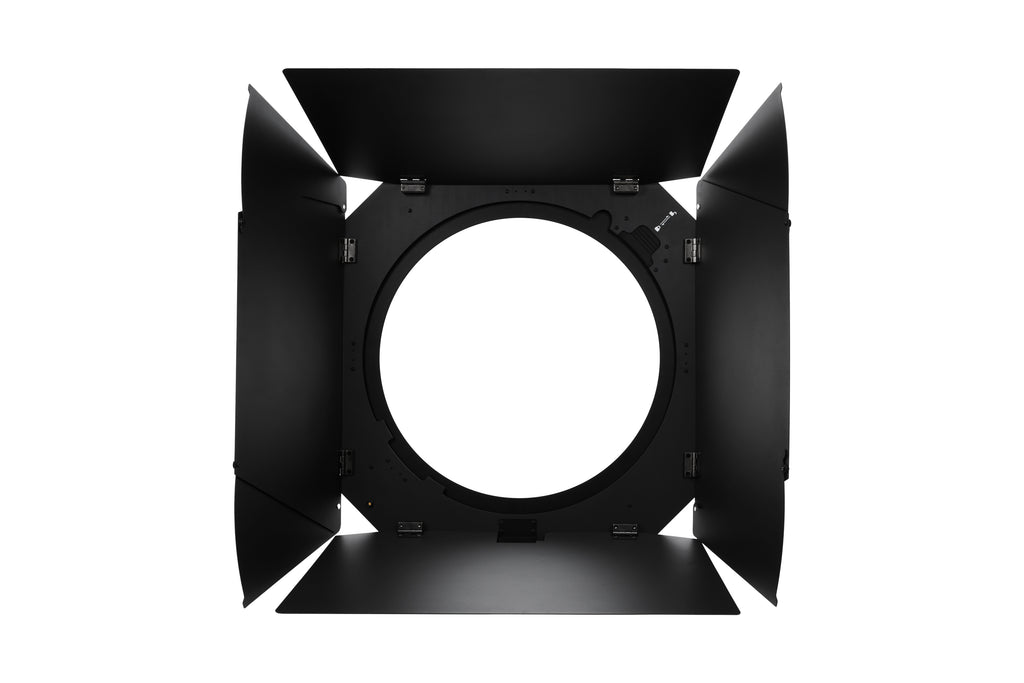

• Included CF16 Barn Doors

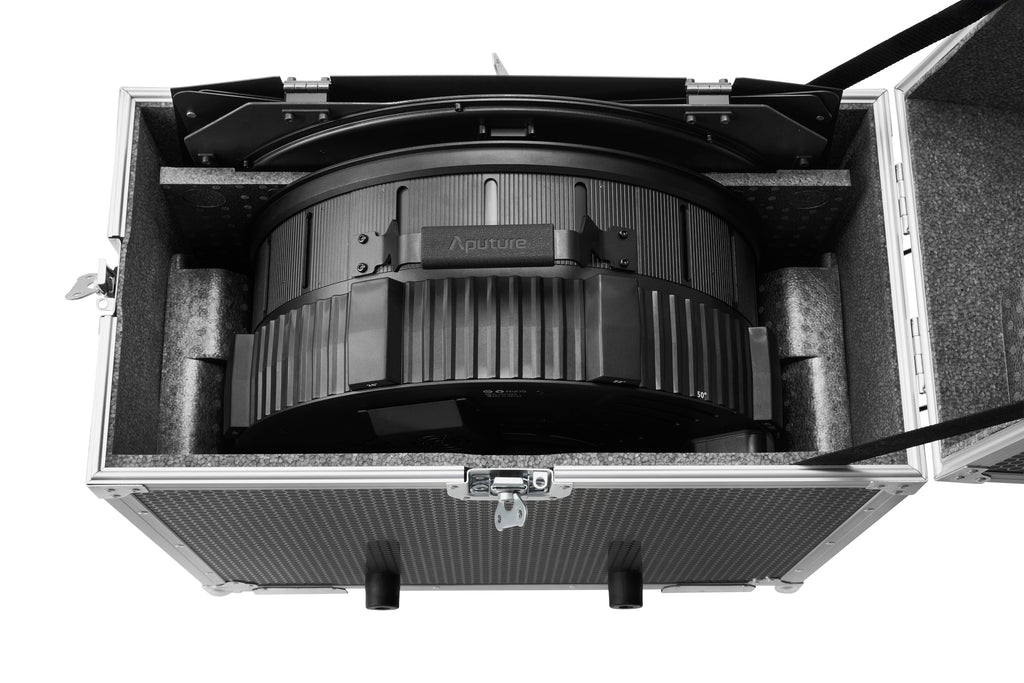

• Included protective Flight Case for storing & transporting CF16 and CF16 Barn Doors
• Smooth falloff from center to edge of output

Specifications

• Beam Angle
  • Full Spot: 18º
  • Full Flood: 50º
• IP Rating: IP65
• Focus Motor Throw Duration: 12 seconds
• Dimensions
  • CF16 Fresnel: 22.2 x 20.4 x 9.2in (56.4 x 51.9 x 23.4cm)

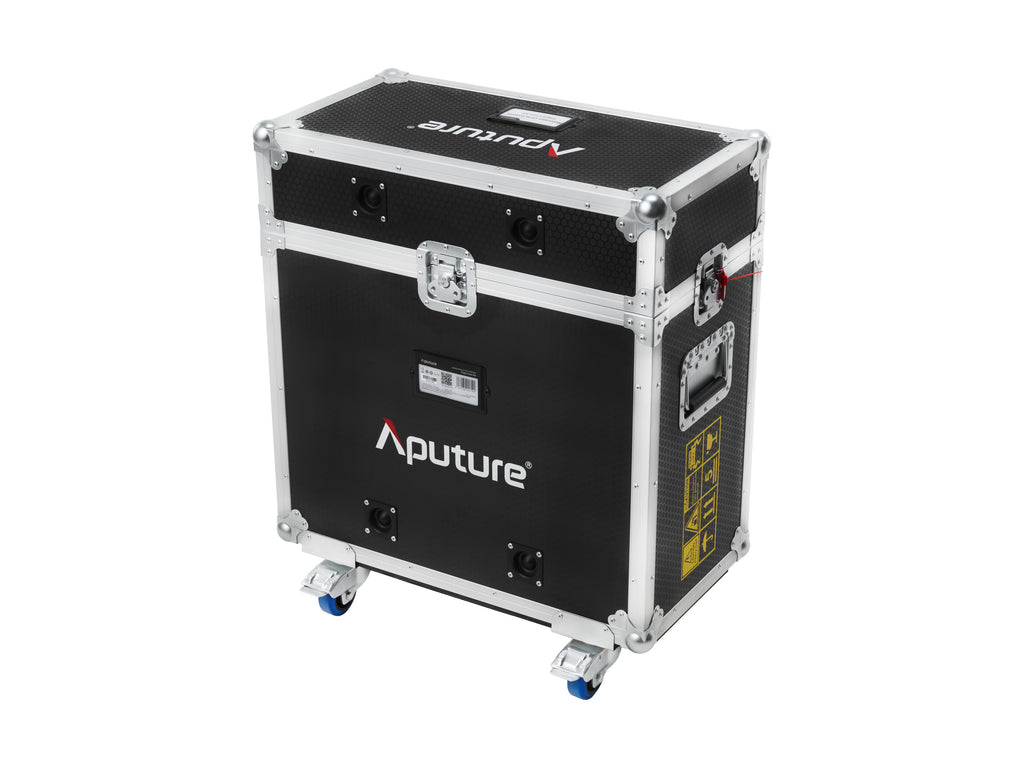

  • Flight Case: 29.1 x 14.8 x 32.9in (74.0 x 37.5 x 83.5cm)
• Weight
  • CF16 Fresnel: 26.01lbs (11.80kg)
  • Flight Case: 63.93lbs (29.00kg)

What’s in the Box

• 1x Motorized CF16 Fresnel

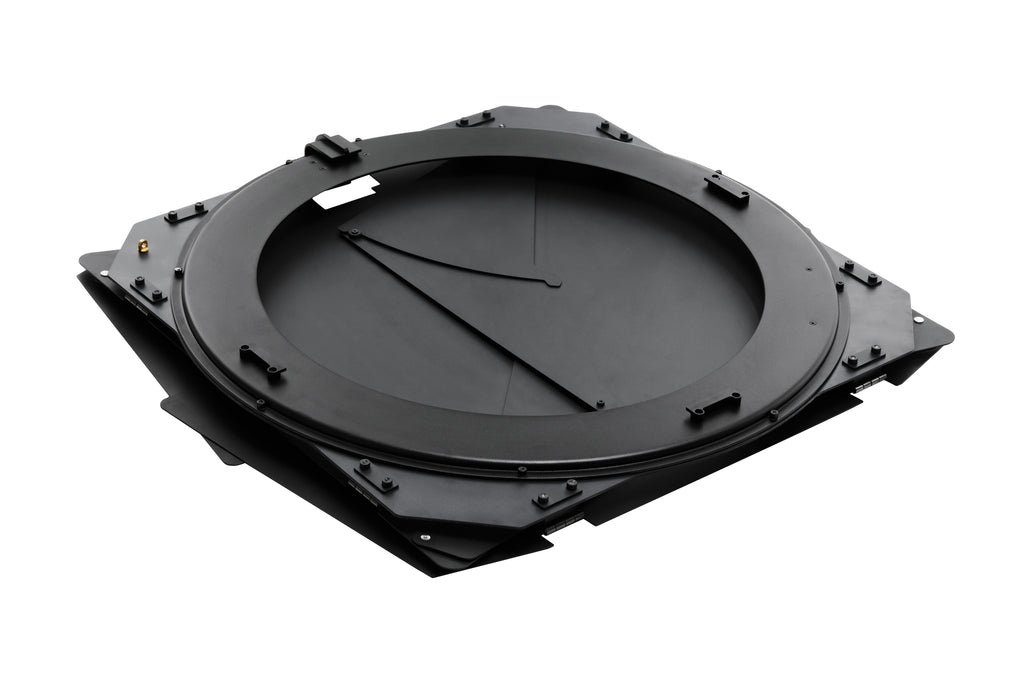

• 1x CF16 Fresnel Barn Doors
• 1x Safety Cable
• 1x Flight Case
