Product Video

Key Selling Points

Raven Black Mini Lock kit: plate callouts for the anti-twist set screw, 1/4 and 3/8 inch mounting and male and female anti-twist holes
Kondor Blue Mini Lock NATO rail on the plate and the latch set screw that removes plate play
Kondor Blue Mini Lock stowed 3 mm ARRI-style pins and the 20 percent lighter redesign

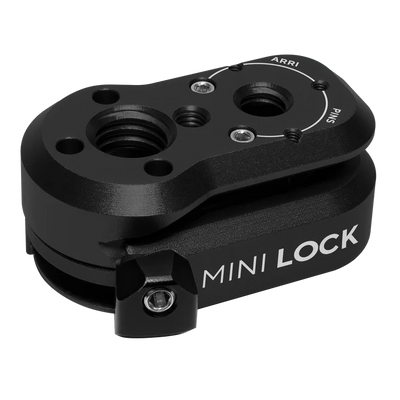

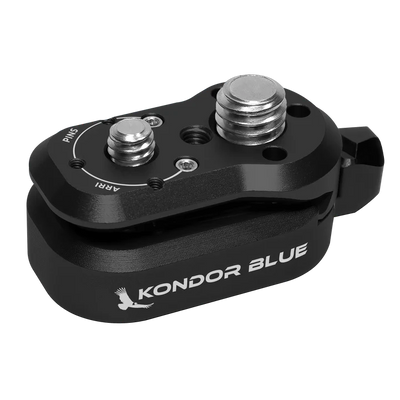

This is the Raven Black version of the Kondor Blue Mini Lock, a quick release plate kit that gives one accessory a tool-free connection to your rig: the male plate goes on the accessory, the female receiver goes on the cage, handle or arm, and a safety latch holds the two together. Kondor Blue packs stainless steel screws for each mounting option and a 2 mm hex tool for setting the fit.

Key Features

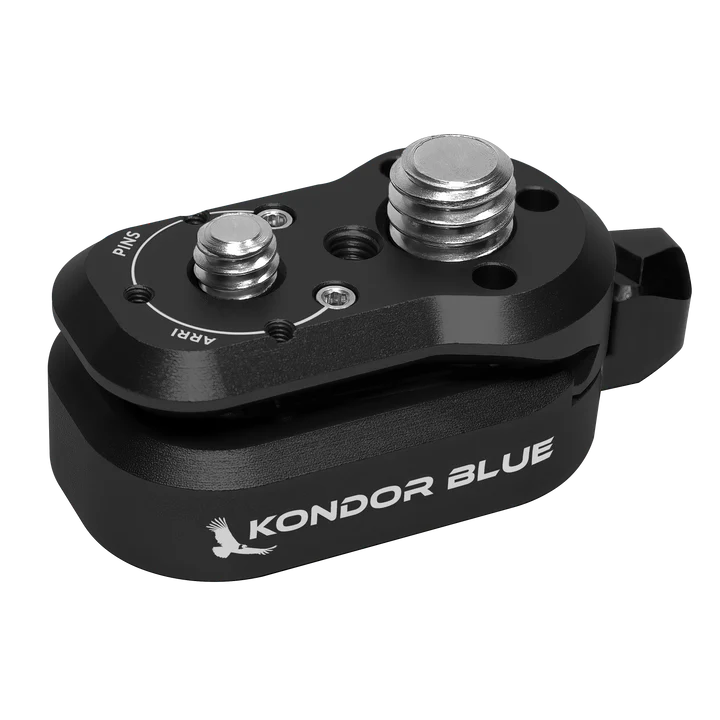

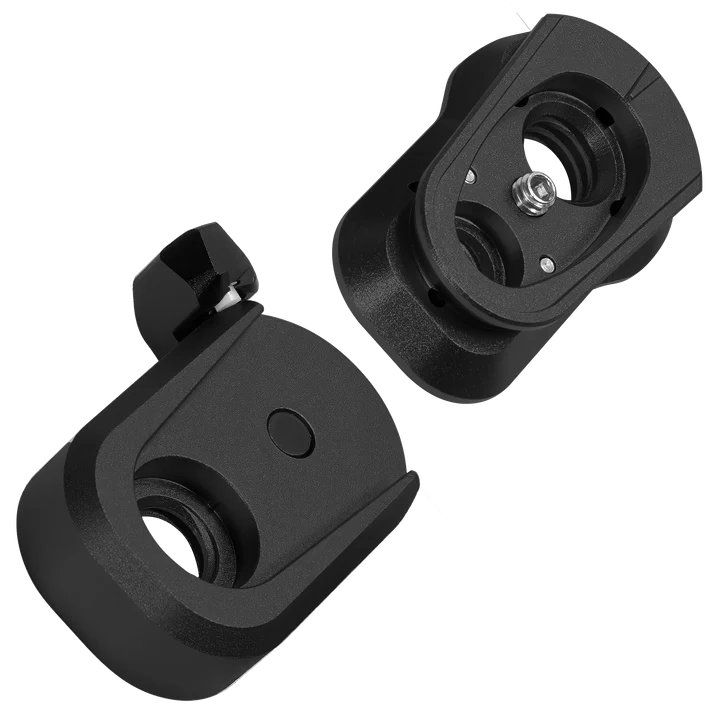

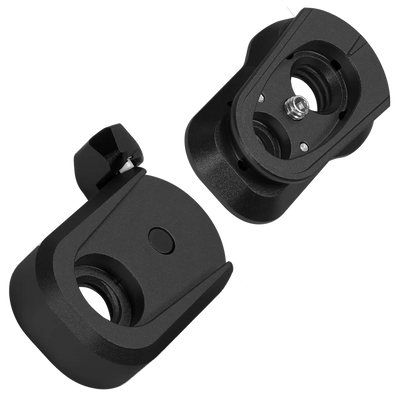

  • Two-part system: a male plate for the accessory and a female receiver for the rig, joined by a safety latch

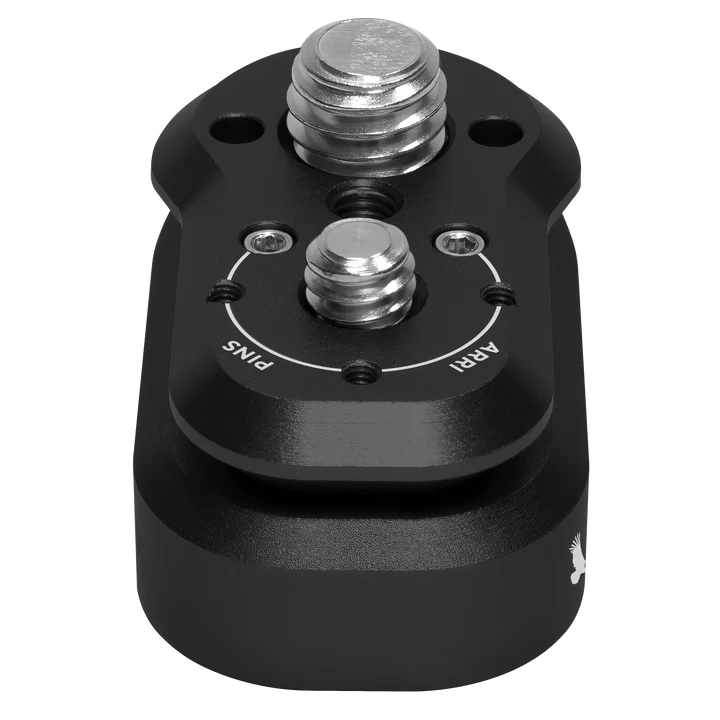

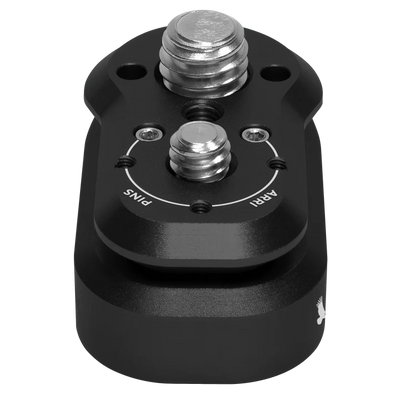

  • Plate side choices: ARRI-style locating holes, a male 1/4"-20 ARRI-style mount with 3 mm pins, a NATO rail, 1/4"-20 or 3/8"-16 threaded holes, or 1/4"-20 or 3/8"-16 bolts, each backed by an M4 anti-rotation screw

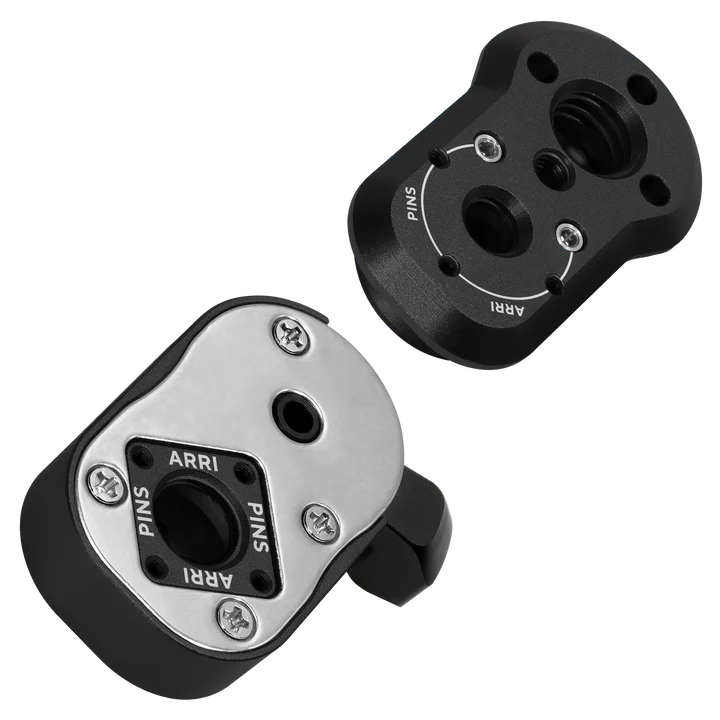

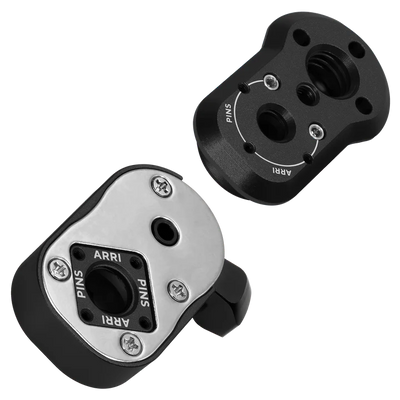

  • Receiver side: deeper 3/8"-16 threading plus 3 mm ARRI-style pins that fit either way round

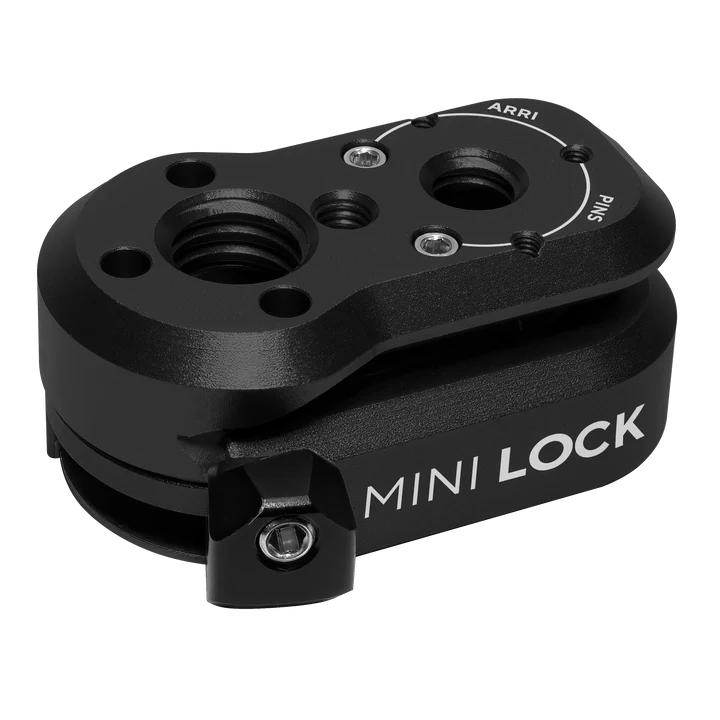

  • Fit adjustment: the latch carries an M4 nylon-tip set screw, turned with the 2 mm hex tool, that takes up play without scratching the plate
  • The latch parks in the open position, which makes loading the plate easier
  • Kondor Blue rates this redesign 20% lighter than its original Mini Quick Release and keeps it compatible with the original plates and cradles

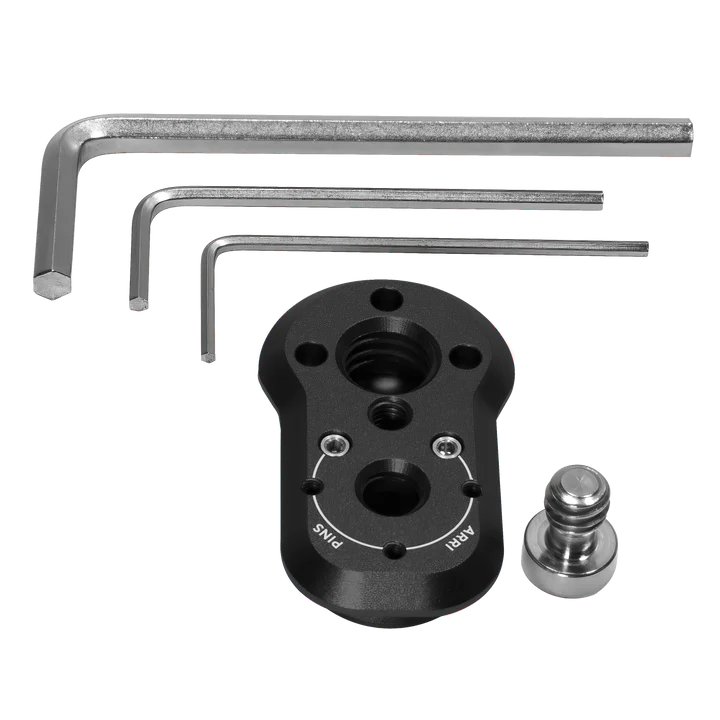

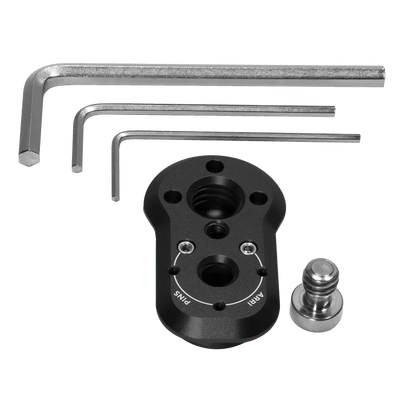

In the Box

  • 1 x Mini Lock male quick release plate
  • 1 x Mini Lock female receiver
  • Stainless steel screws and bolts for the listed mounting setups
  • 1 x 2 mm hex tool for the latch set screw

How It Compares

Feature Mini Lock Kit, Raven Black (this listing) Kondor Blue Anti Twist NATO Clamp
Taking the accessory off Open the safety latch and slide the plate out Loosen the locking thumb screw and slide off the NATO rail
Fixing to the rig Receiver on 3/8"-16; plate on 1/4"-20 or 3/8"-16 threads or bolts One bolt, with 1/4"-20 and 3/8"-16 bolts included
Anti-twist 3 mm ARRI-style pins in plate or receiver, M4 set screw on the plate Removable 3 mm anti-twist pins
Weight listed by Kondor Blue 39 g (1.4 oz) 1.8 oz
  • Choose the Mini Lock when one accessory moves between several mounting points and you want it off with a single latch movement.
  • Choose the Kondor Blue Anti Twist NATO Clamp when the rig and accessories already carry NATO rails. The Mini Lock plate has a NATO rail of its own, so both systems can share one rig.
  • Prefer another finish? The kit is also listed in Kondor Blue and Cardinal Red.

Pair It With

Specifications

Specification Kondor Blue Mini Lock Kit, Raven Black
Kondor Blue part number KB-ML-BK
Male plate ARRI-style female mount, 1/4"-20 ARRI-style male mount with 3 mm pins stored in the plate, NATO rail, 1/4"-20 and 3/8"-16 threads and bolts, central M4 anti-rotation screw
Female receiver 3/8"-16 receiving thread, made deeper on the Mini Lock; 3 mm ARRI-style pins fit in either orientation
Fit adjustment M4 nylon-tip set screw in the latch, 2 mm hex tool
Listed size and weight 25 x 17 x 42 mm (W x T x D), 39 g

Buy Kondor Blue from Filmgear Canada

Filmgear Canada is an authorized Kondor Blue dealer in Vancouver. We ship Canada-wide, and our team can help you match cages, plates, cables and power to your camera before you buy.

Two-part system: a male plate for the accessory and a female receiver for the rig, joined by a safety latch

Plate side choices: ARRI-style locating holes, a male 1/4"-20 ARRI-style mount with 3 mm pins, a NATO rail, 1/4"-20 or 3/8"-16 threaded holes, or 1/4"-20 or 3/8"-16 bolts, each backed by an M4 anti-rotation screw

Receiver side: deeper 3/8"-16 threading plus 3 mm ARRI-style pins that fit either way round

Fit adjustment: the latch carries an M4 nylon-tip set screw, turned with the 2 mm hex tool, that takes up play without scratching the plate

The latch parks in the open position, which makes loading the plate easier

Kondor Blue rates this redesign 20% lighter than its original Mini Quick Release and keeps it compatible with the original plates and cradles
1 x Mini Lock male quick release plate
1 x Mini Lock female receiver
Stainless steel screws and bolts for the listed mounting setups
1 x 2 mm hex tool for the latch set screw

We have a 14-day return policy, which means you have 14 days after receiving your item to request a return.

To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase. For opened or used items, a minimum 15% restocking fee may apply depending on the item condition.

To start a return, you can contact us at info@filmgearcanada.com. If your return is accepted, we’ll send you instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.

You can always contact us for any return-related questions at info@filmgearcanada.com.

Important Notice for Special Order Items

Certain professional and project-based products are supplied on a Special Order basis and are subject to different return conditions. Please review the “Special Order Items” section below before placing your order.

Damages and Issues

Please inspect your order upon reception and contact us immediately if the item is defective, damaged, or if you receive the wrong item, so that we can evaluate the issue and make it right.

If an item is defective within 14 days of delivery, email info@filmgearcanada.com with a short video of the problem and the serial number, or bring it to our showroom. Once we confirm the defect, we’ll replace it (or refund it if a replacement isn’t available) and handle the manufacturer claim ourselves.

For Special Order items, damage or defect claims must be reported immediately upon delivery and will be handled in accordance with the manufacturer’s warranty terms.

Exceptions / Non-returnable Items

Special Order Items (Final Sale)
Certain professional, project-based products are supplied on a Special Order basis and are not regularly stocked. Special Order items are final sale and cannot be returned, exchanged, or refunded once the order has been confirmed with the manufacturer. Special Order items are final sale whether they ship from our stock or are ordered from the manufacturer.

These items are ordered specifically for individual projects and may include, but are not limited to:

  • Professional wireless communication systems
  • Large-scale lighting equipment
  • Studio carts and grip equipment
  • Cine lenses and special production gear

Please ensure compatibility and project requirements before placing your order. If you have any questions regarding lead time or suitability, we strongly recommend contacting us prior to purchase.

In addition, we do not accept returns for open box, demo or clearance items, gift cards, hazardous materials, flammable liquids or gases.

Exchanges

The fastest way to ensure you get what you want is to return the item you have. Once the return is accepted, you may place a new order for the desired item.

Refunds

We will notify you once we’ve received and inspected your return and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please note that it may take some time for your bank or credit card company to process and post the refund.

FAQ

Does the kit come with screws to mount the receiver, such as a 3/8"-16 screw?

Yes. Kondor Blue packs stainless steel mounting hardware for every plate and receiver configuration it lists, and the receiver's own thread is 3/8"-16, so the kit covers fixing it to a cheese plate or cage from below. One owner of the Raven Black kit says it arrived with all the hardware needed to use all of its features.

What if the plate will not come out of the receiver?

Open the safety latch all the way first; on the Mini Lock it stays open by itself, so both hands are free to slide the plate out. How tightly the latch bears on the plate is set by its M4 nylon-tip set screw, so if a new kit binds, ease that screw back with a 2 mm hex key until the plate slides, then tighten it only until the play disappears. One buyer got a kit that would not separate at all; if adjusting the screw does not free it, contact Filmgear Canada rather than forcing it.

Can the male plate accept anti-twist pins from my accessory instead of pushing pins out?

Yes, through the plate's female ARRI-style mount. Kondor Blue lists that female mount on the male plate alongside the male 1/4"-20 ARRI-style mount, and its feature graphic marks both male and female anti-twist holes, so an accessory with its own ARRI-style pins can seat into the plate. One buyer wished the 1/4"-20 side itself took pins in reverse, so look at which part of your accessory carries the pins before you choose how to mount it.

Will the Mini Lock mount on a SmallRig cage?

Yes, through the cage's threaded holes. The receiver fixes with its 3/8"-16 thread and the male plate can use 1/4"-20 or 3/8"-16 threads or bolts, so either half can go on a cage that has those holes, using the stainless steel screws from the kit. Where the cage also has ARRI-style locating holes, fit the 3 mm anti-twist pins so the part cannot turn.

Can a NATO clamp grab the male plate directly?

Yes. A NATO rail is built into the male plate as one of its mounting options, and Kondor Blue says the plate works with standard NATO clamps. One owner of the Raven Black kit did not expect the rail and found it saved buying another part. The same plate still locks into the Mini Lock receiver, so one accessory can move between a NATO clamp and a receiver.
