Product Video

Key Selling Points

Cardinal Red Mini Lock kit mounting diagram: set screw against rotation, 1/4 and 3/8 inch threads, ARRI-style anti-twist holes
Kondor Blue Mini Lock latch that stays open, nylon-tip fit screw and plate NATO rail
Removable 3 mm Mini Lock anti-twist pins for the male plate or the receiver base

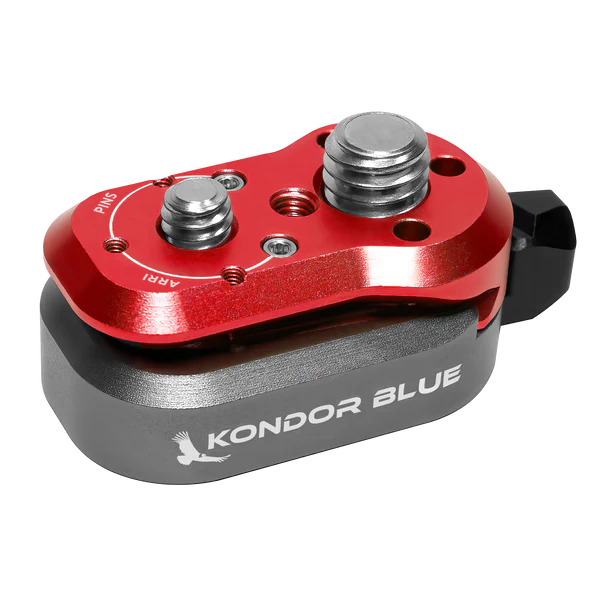

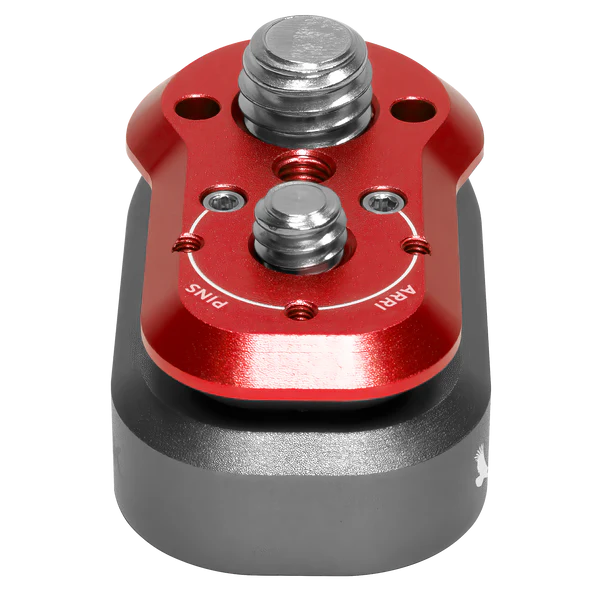

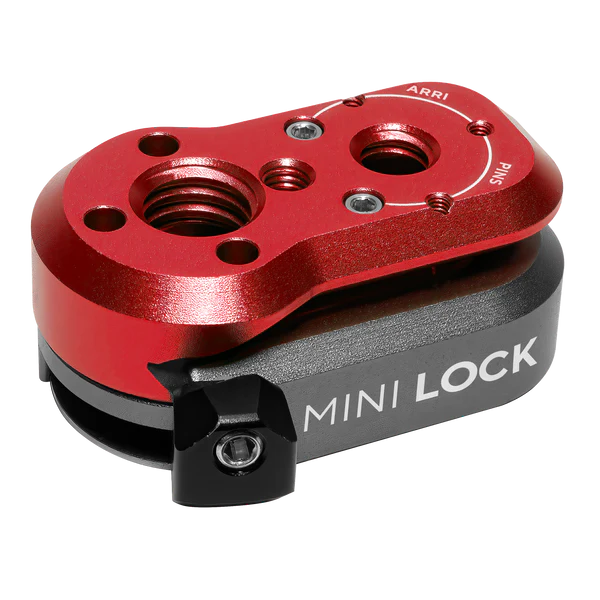

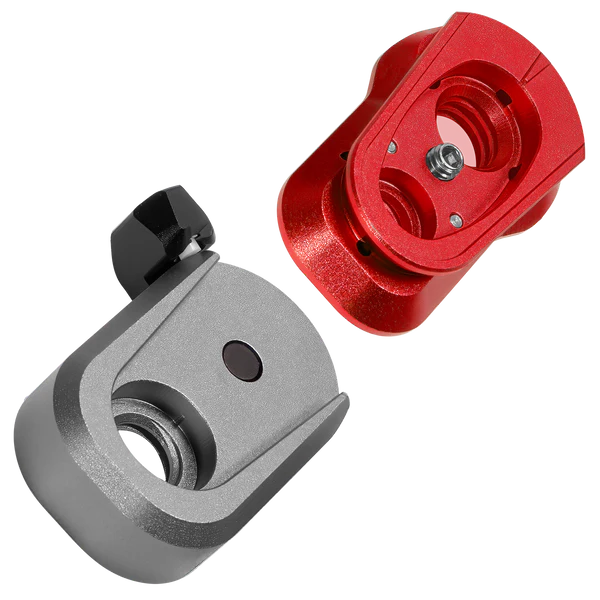

The Cardinal Red Kondor Blue Mini Lock kit is a small quick release system for camera accessories: a male plate slides into a female receiver and a safety latch keeps it there until you release it. Stainless steel hardware for all of Kondor Blue's listed plate and receiver setups comes in the kit, so a monitor, SSD holder or mic mount can share one quick connection across cage, handle and tripod.

Key Features

  • One male plate and one female receiver, plus stainless steel hardware for every setup Kondor Blue lists for the two parts
  • On the accessory side, the plate takes a female ARRI-style mount or a male 1/4"-20 ARRI-style mount, a NATO rail, 1/4"-20 or 3/8"-16 threaded holes, or bolts in the same two sizes
  • A centralized M4 set screw works with every plate mounting option to keep the plate from spinning

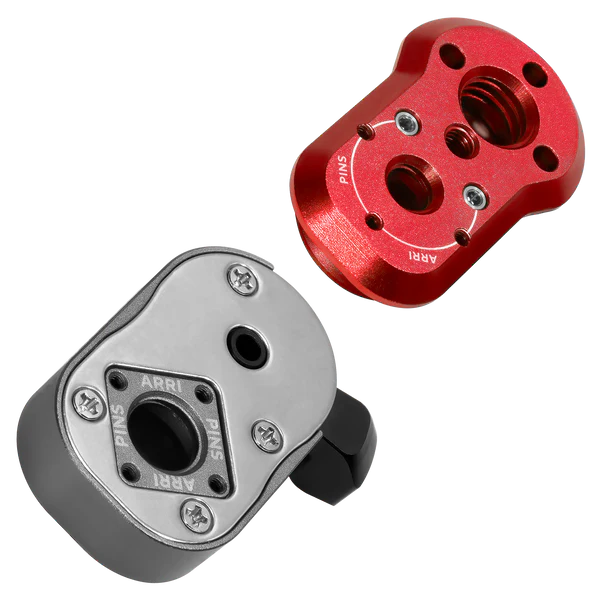

  • On the rig side, the receiver's 3/8"-16 thread is now deeper, and 3 mm ARRI-style anti-twist pins fit it in either orientation
  • The removable 3 mm pins store inside the male plate when a mount does not need them
  • Plate-to-plate fit is tuned at the latch's M4 nylon-tip screw with the 2 mm hex tool supplied in the kit

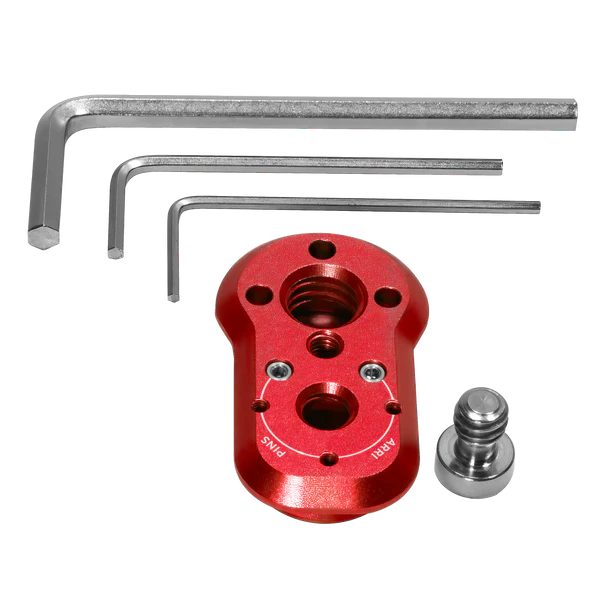

In the Box

  • 1 x Kondor Blue Mini Lock male plate
  • 1 x Kondor Blue Mini Lock receiver (female)
  • Stainless steel mounting hardware covering the listed plate and receiver setups
  • 1 x hex tool, 2 mm

How It Compares

Feature Mini Lock Kit, Cardinal Red (this listing) Kondor Blue Mini Lock QR Swivel Tilt Monitor Mount
Job on the rig Adds a removable connection to any accessory and mounting point Holds a monitor on the cage at an adjustable angle
Mini Lock parts Male plate and female receiver Male quick release plate built in; female receiver required
Movement Fixed Swivel 360°, tilt 180°
Weight listed by Kondor Blue 39 g (1.4 oz) 2.2 oz

Pair It With

Specifications

Specification Kondor Blue Mini Lock Kit, Cardinal Red
SKU KB-ML-R
Plate (accessory side) Female ARRI-style mount and male 1/4"-20 ARRI-style mount, NATO rail, 1/4"-20 or 3/8"-16 threaded holes and bolts, M4 centre set screw; 3 mm pins stow inside
Receiver (rig side) Deeper 3/8"-16 thread; takes 3 mm ARRI-style pins either way; profile fits Kondor Blue anti-twist cradles
Latch Holds open for loading; M4 nylon-tip screw adjusted with a 2 mm hex tool
Kondor Blue tech specs 39 g / 1.4 oz; 25 mm wide, 17 mm thick, 42 mm deep

Buy Kondor Blue from Filmgear Canada

Filmgear Canada is an authorized Kondor Blue dealer in Vancouver. We ship Canada-wide, and our team can help you match cages, plates, cables and power to your camera before you buy.

One male plate and one female receiver, plus stainless steel hardware for every setup Kondor Blue lists for the two parts

On the accessory side, the plate takes a female ARRI-style mount or a male 1/4"-20 ARRI-style mount, a NATO rail, 1/4"-20 or 3/8"-16 threaded holes, or bolts in the same two sizes

A centralized M4 set screw works with every plate mounting option to keep the plate from spinning

On the rig side, the receiver's 3/8"-16 thread is now deeper, and 3 mm ARRI-style anti-twist pins fit it in either orientation

The removable 3 mm pins store inside the male plate when a mount does not need them

Plate-to-plate fit is tuned at the latch's M4 nylon-tip screw with the 2 mm hex tool supplied in the kit
1 x Kondor Blue Mini Lock male plate
1 x Kondor Blue Mini Lock receiver (female)
Stainless steel mounting hardware covering the listed plate and receiver setups
1 x hex tool, 2 mm

We have a 14-day return policy, which means you have 14 days after receiving your item to request a return.

To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase. For opened or used items, a minimum 15% restocking fee may apply depending on the item condition.

To start a return, you can contact us at info@filmgearcanada.com. If your return is accepted, we’ll send you instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.

You can always contact us for any return-related questions at info@filmgearcanada.com.

Important Notice for Special Order Items

Certain professional and project-based products are supplied on a Special Order basis and are subject to different return conditions. Please review the “Special Order Items” section below before placing your order.

Damages and Issues

Please inspect your order upon reception and contact us immediately if the item is defective, damaged, or if you receive the wrong item, so that we can evaluate the issue and make it right.

If an item is defective within 14 days of delivery, email info@filmgearcanada.com with a short video of the problem and the serial number, or bring it to our showroom. Once we confirm the defect, we’ll replace it (or refund it if a replacement isn’t available) and handle the manufacturer claim ourselves.

For Special Order items, damage or defect claims must be reported immediately upon delivery and will be handled in accordance with the manufacturer’s warranty terms.

Exceptions / Non-returnable Items

Special Order Items (Final Sale)
Certain professional, project-based products are supplied on a Special Order basis and are not regularly stocked. Special Order items are final sale and cannot be returned, exchanged, or refunded once the order has been confirmed with the manufacturer. Special Order items are final sale whether they ship from our stock or are ordered from the manufacturer.

These items are ordered specifically for individual projects and may include, but are not limited to:

  • Professional wireless communication systems
  • Large-scale lighting equipment
  • Studio carts and grip equipment
  • Cine lenses and special production gear

Please ensure compatibility and project requirements before placing your order. If you have any questions regarding lead time or suitability, we strongly recommend contacting us prior to purchase.

In addition, we do not accept returns for open box, demo or clearance items, gift cards, hazardous materials, flammable liquids or gases.

Exchanges

The fastest way to ensure you get what you want is to return the item you have. Once the return is accepted, you may place a new order for the desired item.

Refunds

We will notify you once we’ve received and inspected your return and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please note that it may take some time for your bank or credit card company to process and post the refund.

FAQ

Can I put the receiver on a 1/4"-20 screw with a thread adapter?

Plan on a 3/8"-16 screw instead. Kondor Blue gives the Mini Lock receiver deeper 3/8"-16 threads, and one Cardinal Red owner found them too short to take a 1/4"-20 adapter bushing, so they mount the receiver on a cheese plate or a 3/8"-16 stud. When the gear you want to attach only offers 1/4"-20, put the male plate on that side, since the plate accepts 1/4"-20 or 3/8"-16.

Do the receiver's ARRI pins work with SmallHD monitors?

Not directly. Kondor Blue says SmallHD monitors do not use typical ARRI locating pin holes, so the 3 mm ARRI-style pins will not line up with them. The receiver's outer profile fits Kondor Blue's anti-twist cradles, and Kondor Blue confirms its SmallHD cradles work with the Mini Lock, so pair the receiver with the SmallHD Anti Twist Cradle for a SmallHD monitor.

Will the receiver spin loose on a single screw?

Give it more than the screw to hold on to. The Mini Lock receiver takes removable 3 mm ARRI-style anti-twist pins in either orientation, its 3/8"-16 threads are deeper than before, and its outer profile fits Kondor Blue anti-twist cradles. A viewer raised this worry about a receiver on a top handle and the video's creator replied that theirs had never loosened; fitting the pins wherever the handle or cage has ARRI-style holes removes the doubt.

Can I use the Mini Lock to mount a small SSD?

Yes, if the SSD sits in a holder or cage with a 1/4"-20 or 3/8"-16 thread or a NATO clamp. The male plate fixes by either thread size or rides in a NATO clamp on its built-in rail, and the receiver goes on the rig. One Cardinal Red owner uses Mini Locks as the standard mount for small SSD drives, so the drive comes off for offloading and returns to the same place.

How much weight can the Mini Lock hold?

Kondor Blue does not list a load rating; it describes the Mini Lock as a mount for cinema accessories. One owner calls it a medium weight solution and has used it as a monitor mount for years, and Kondor Blue's Mini Lock QR swivel mount is made for monitors up to 7 inches. For heavier or longer loads, fit the 3 mm anti-twist pins and keep the weight close to the receiver.
