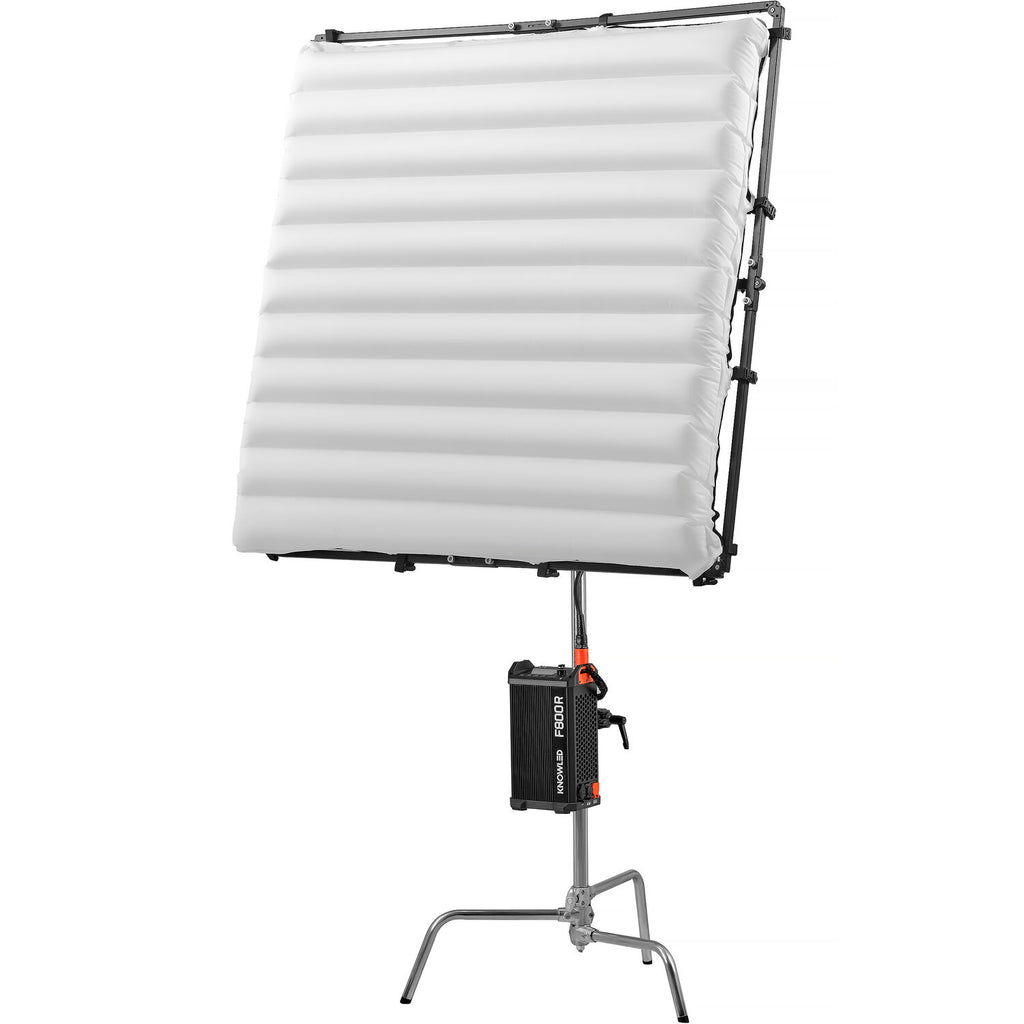

Godox KNOWLED F800R RGB Flexible LED Light Mat (4 x 4') with FREE Air Softbox

The Godox KNOWLED F800R is a 4 x 4 ft full-colour flexible LED mat for large, soft key and fill light, and this kit adds the Godox FA800 Air Softbox for diffusion and spill control. Its controller runs on 100V to 240V AC at up to 900W and accepts DMX, CRMX, Ethernet and Bluetooth control.

Key Selling Points

• Full-colour output: 1800K to 10000K CCT with green-magenta adjustment from -100% to +100%, average CRI 96 or higher and TLCI 97 or higher.
• Air softbox included: the FA800 inflates with the supplied air pump and attaches to the Velcro along the edges of the mat, and its grid attaches along the inside of the softbox for spill control.
• Built for location work: the light body and controller are rated IP54, with a working temperature of -20°C to 45°C. Close unused ports with their waterproof covers.
• Rig-friendly design: Godox's metal X-bracket uses a quick-mount design, and a latch on the back of the F800R helps keep the light level when rigged overhead. The mat folds down to 30 x 60 cm for storage.
• Professional control: DMX512 with RDM, built-in LumenRadio CRMX (receive only), Ethernet with Art-Net and sACN, and Bluetooth app control up to 30 m.

In the Box

• 1 × Godox KNOWLED F800R RGB flexible LED light mat
• 1 × Controller
• 1 × Metal bracket
• 1 × Connection cable
• 1 × AC power cord
• 1 × Protective cloth
• 1 × Carry case
• 1 × Instruction manual
• 1 × Godox FA800 Air Softbox with grid, air pump and storage bag

FAQ

Can the Godox KNOWLED F800R run on V-mount batteries?

No. In Godox's manual, V-mount battery slots appear only on the F400R controller. The F800R controller has an AC input and a DC input, and the DC input must be powered by an independent LED driver certified to EN 61347-2-13 with an output of no more than 48V DC.

How much power does the F800R need?

Godox rates the F800R controller input at 900W maximum on a 100V to 240V, 50/60Hz AC supply. Plug it into an earthed socket, and use an extension cord with a current rating at least equal to the light's.

Can the F800R be used outdoors?

Yes, with care. Godox rates the light body and controller IP54 for protection from dust and water, with a working temperature of -20°C to 45°C. Keep unused ports closed with their waterproof covers, and in damp locations use a power connection with equivalent protection, such as a moisture-protected outlet.

Is a DMX cable included with the F800R?

No. Godox notes that the DMX connection cable is sold separately. Wireless control works over built-in LumenRadio CRMX (receive only) or Bluetooth app control up to 30 m.

How do I attach the FA800 Air Softbox to the F800R?

Inflate the softbox with the supplied air pump, stick it to the Velcro along the edges of the light, then attach the grid along the inner side of the softbox.

How It Compares

• Need battery operation: look at the Godox F400R. Its controller has two V-mount battery slots and draws up to 460W, while the F800R controller runs from AC or a certified DC driver at up to 900W.
• Need the most output from one mat in this series: the F800R, with 900W maximum controller input.
• Need other modifiers: Godox lists the FP600 Pancake Lantern and the SS-FS800 skirt set as separately sold F800R accessories.

Specifications

• Power supply: 100V to 240V, 50/60Hz AC
• Controller input power: 900W maximum
• CCT: 1800K to 10000K; G/M adjustment -100% to +100%
• Brightness range: 0.0% to 100.0%
• CRI: average 96 or higher; TLCI: average 97 or higher
• Protection: IP54 light body and controller
• Control: DMX512 with RDM, LumenRadio CRMX (receive only), Ethernet (Art-Net, sACN), Bluetooth app (up to 30 m)
• USB-A port: firmware upgrade and 5V 1.5A power output
• Working temperature: -20°C to 45°C
• Net weight: light body about 3 kg; controller about 6.5 kg
