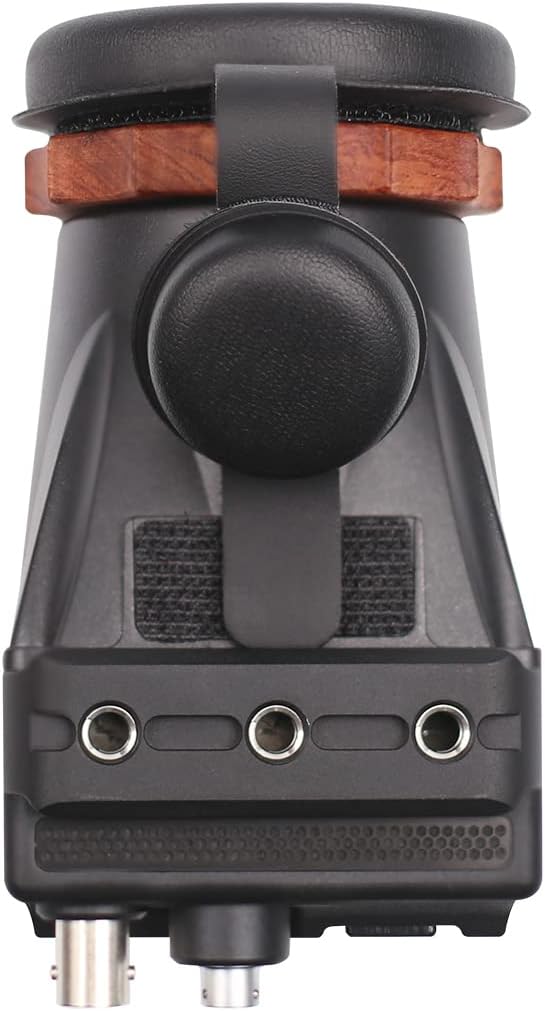

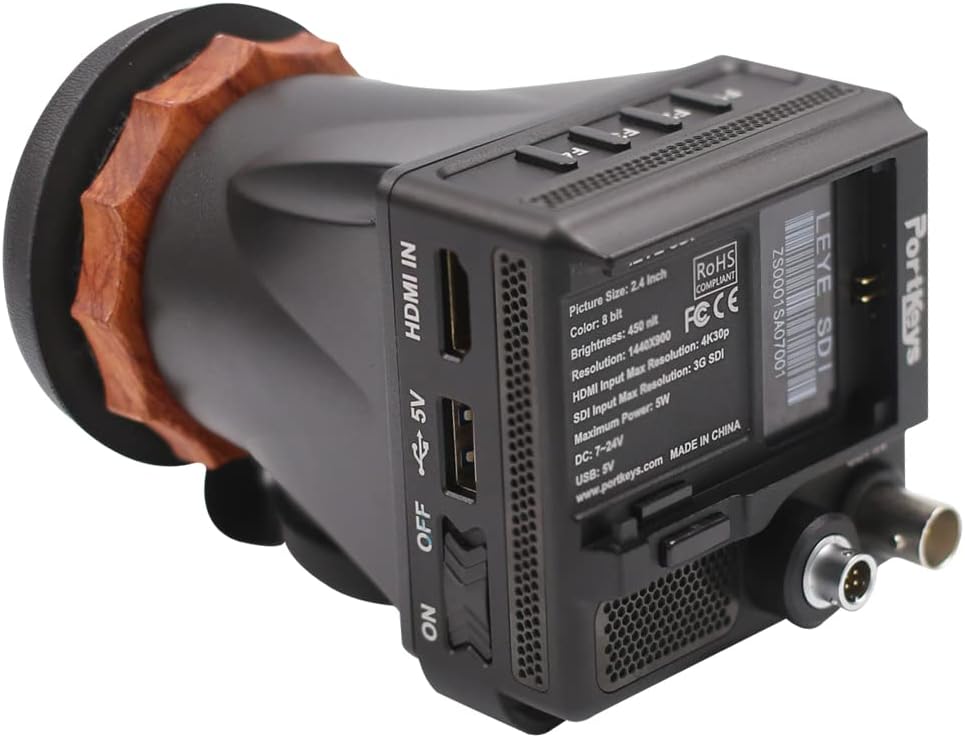

Several mounting options are integrated into the viewfinder for attachment to your camera rig configuration: a rosette, three 1/4"-20 threads, and a NATO rail. Various video assist functions can be enabled to monitor the quality of your image, and a -3 to +8 diopter range allows you to adjust focus to comfortably suit your vision. Power for the device, when not provided with an LP-E6 compatible battery or power bank, can also be achieved with the self-locking 4-pin aviation connector input. You can upload custom 3D LUTs of your choice to the viewfinder or upgrade the firmware using the USB-A input.
Features at a Glance
- Upload 3D LUTs and upgrade firmware via the USB-A input
- Integrated Canon E6 battery plate for power via compatible battery or power bank
- Four customizable function keys to make programming settings quick and efficient
- Added passive heatsink vent for improved heat dissipation
- Round sponge eye mask for barrier-free monitoring with or without glasses
Video Assist Functions
- Anamorphic de-squeeze
- Audio meters
- Backlight
- Brightness
- Check field
- Chroma
- Color temperature
- Contrast
- Cross hair
- Display flip
- False colors
- Grids
- Guides
- Histogram
- H/V delay
- Image flip/crop
- Luma waveform
- OSD flip
- Peaking
- Sharpness
- Tint
- Underscan
- Zebra
