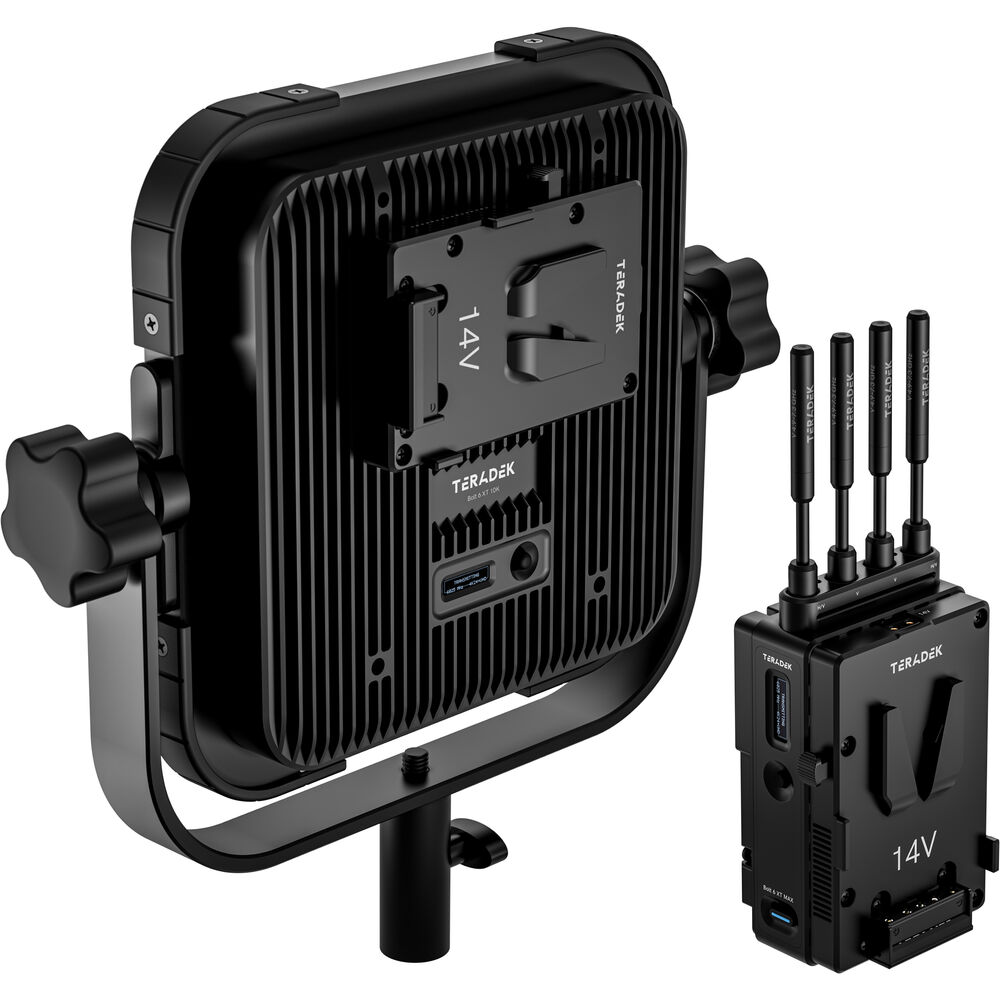

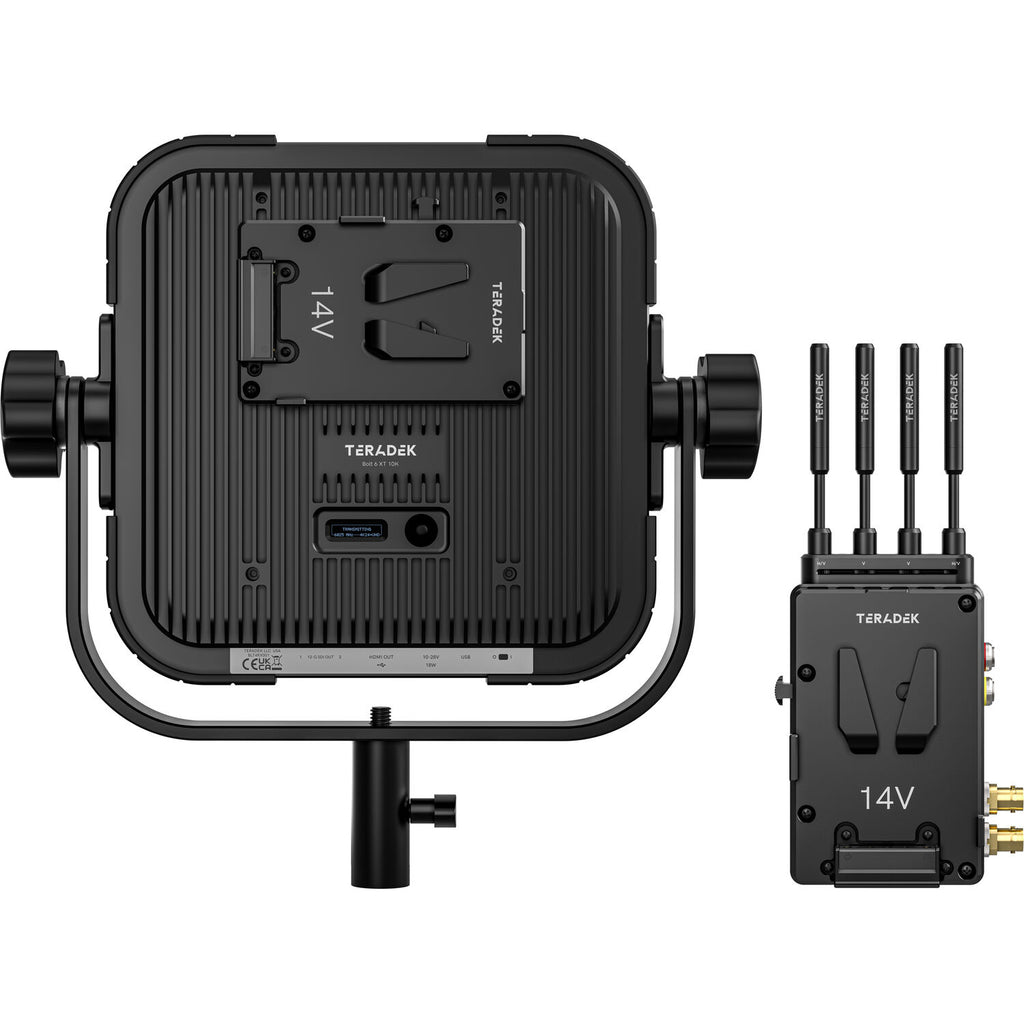

The Bolt 6 XT MAX Set with 10K RX from Teradek is a long-range, zero-delay video transmission system that bundles the Bolt 6 XT MAX transmitter with the Bolt 6 XT 10K receiver, achieving a wireless range of up to 10,000' using a 6 GHz frequency band.

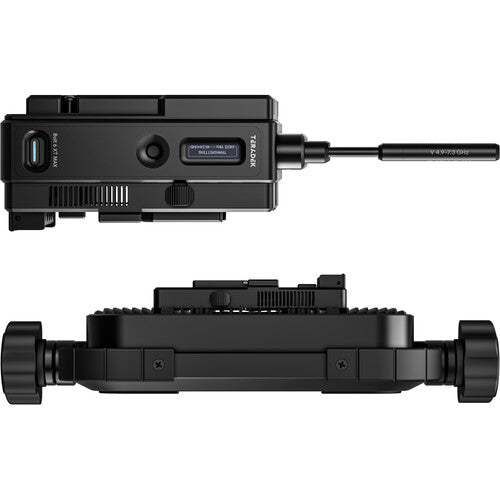

Transmit lossless HD video up to 5000' with the Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter from Teradek. With a smaller and lighter form factor than the Bolt 4K model, this transmitter can input up to DCI 4K60 video over HDMI or 12G-SDI with 10-bit 4:2:2 HDR support, it features a V-mount battery plate, and this new line supports the 6 GHz wireless band, which is now freely available. It also features a 50% quieter operation with its redesigned cooling system. The transmitter unit provides a powerful signal that can travel up to a 5000' line of sight using its integrated flexible H antennas. It features a bright OLED display, and a 12G-SDI loop output, can be powered using its V-mount battery plate, and supports camera control with optional firmware via its 5-pin USB output.
The transmitter supports the transmission of up to DCI 4K60 video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keep your video clean no matter how many devices are using the wireless spectrum. The Bolt XT MAX system also supports the transmission of timecode and start/stop triggers from the camera.
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
- Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
- Smaller, lighter, and 50% quieter than previous models
- Cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum

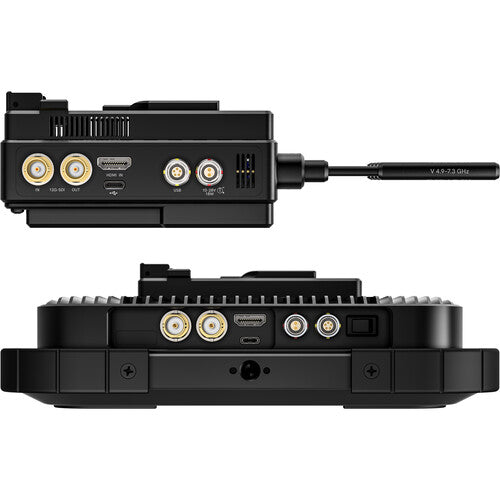

- Input 12G-SDI and HDMI video and transmit up to DCI 4K60 video; 12G-SDI output
- SDI Eye Pattern Tool to check SDI cable integrity
- Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
- Powered via DC input or the V-mount battery plate
- Improved "long-range" mode
- Transmit to up to six Bolt 4K or Bolt 6 series receivers
- AES-256 encryption support
- Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

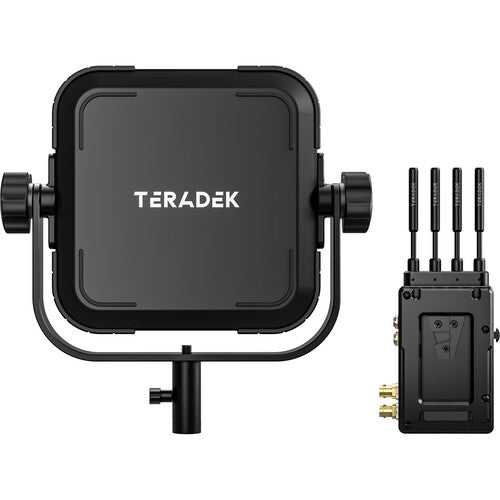

The Bolt 6 XT 10K RX from Teradek is a long-range, zero-delay video receiver with a wireless range of up to 10,000' designed to seamlessly integrate with existing Bolt 4K or Bolt 6 systems. Equipped with one HDMI and two 12G-SDI outputs, the Bolt 6 XT delivers visually lossless 4K60, 10-bit, 4:2:2 video with HDR support.
The integrated directional panel antenna provides superior RF performance with minimal interference thanks to its robust internal shielding. It powers via a separately available 14 or 26V V-mount battery mounted on the built-in battery plate. It can be controlled using the Bolt app, which facilitates device pairing and provides fine-tuned frequency adjustments, along with advanced RF diagnostics via its built-in spectrum analyzer.
KEY FEATURE
- Bolt 6 XT MAX Transmitter
- Bolt 6 XT 10K Receiver
- 10,000' Transmission Range
- Supports up to 4K60 10-Bit 4:2:2 HDR
- Built-In V-Mount Battery Plate
- 6 GHz Frequency Band
- Integrated Directional Panel Antenna

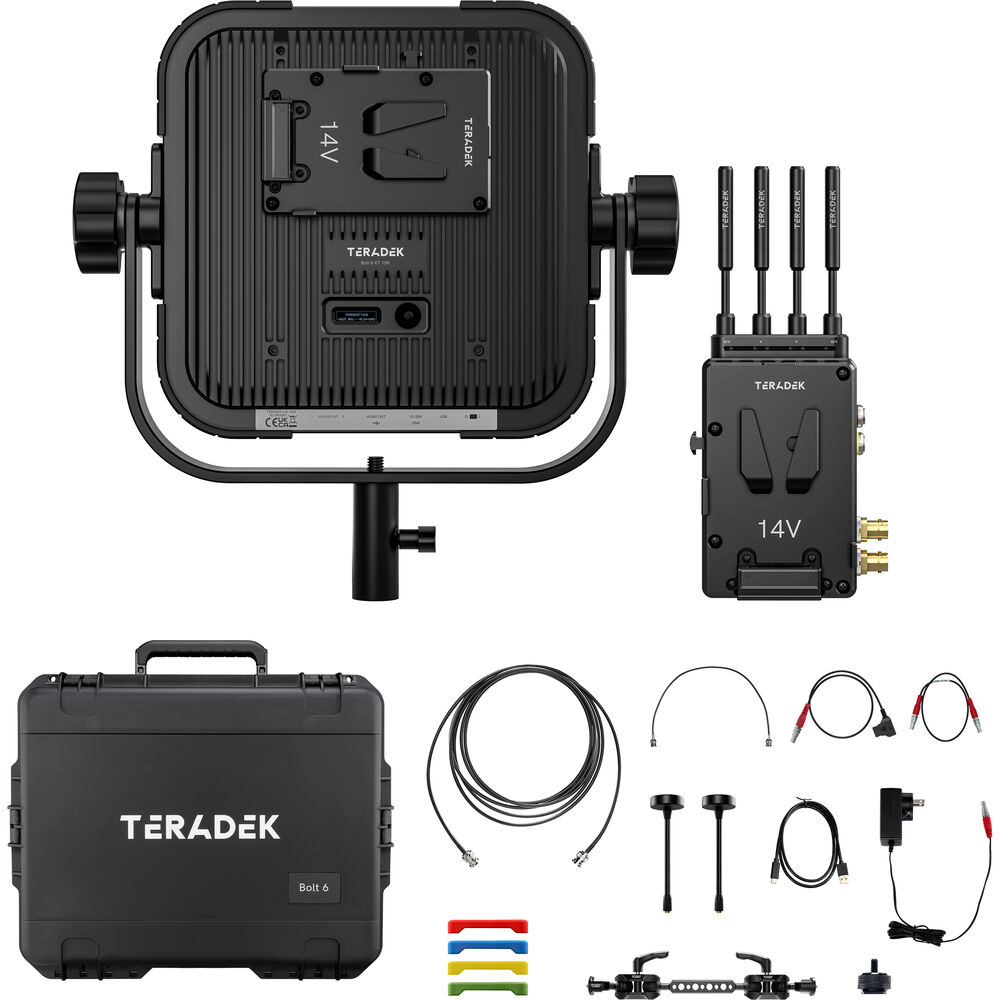

IN THE BOX
Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter (V-Mount)
V-Mount Battery Plate
2-Pin Power Cable (18")
USB Type-A to USB Type-C Cable (3')
Ultrathin USB Type-A to HDMI Type-A Cable (18")
AC Adapter with Cable (6')
2 x Standard Antenna
2 x Mushroom Antenna
2 x Battery Cover
2 x Screw
Limited 1-Year Manufacturer Warranty
Teradek Bolt 6 XT 10K RX (V-Mount)
Limited 1-Year Manufacturer Warranty
