Aputure 36° Lens for Spotlight Max
SPECIAL ORDER, ETA 4-6 WEEKS
This is a final sale item and is not eligible for return or exchange. Please review our Return Policy for details. For exact lead times, please reach out to our team.
Pairs well with
Aputure 36° Lens for Spotlight Max
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Ships from Vancouver, BC across Canada. Free shipping on regular orders over $199 CAD (remote areas and oversize/overweight items excluded). In-stock items typically ship within 1 business day; special-order items ship once the supplier confirms — lead times on request. Local pickup at 945 E Cordova St showroom.
-
Customer Support
Email info@filmgearcanada.com or call (604) 269-4161. Our team gives pre-purchase advice, helps you spec the right model for your shoot, and confirms compatibility before you order. Open Monday–Saturday, 9:30 AM – 5:00 PM PT. In-store consultation at our Vancouver, BC showroom.
-
FAQ’s
Authorized Canadian dealer for Aputure, amaran, DJI, Nanlite, Tilta, and more. All products include full manufacturer warranty and Canadian-side support. For B2B / production-house pricing, net terms, or rental questions, email info@filmgearcanada.com — we work with crews and studios across Canada.
-
Contact Us
Filmgear Canada — 945 E Cordova St #108, Vancouver, BC V6A 1H9. Phone: (604) 269-4161. Email: info@filmgearcanada.com. Showroom open Mon–Sat, 9:30 AM – 5:00 PM — walk-ins welcome, no appointment needed.

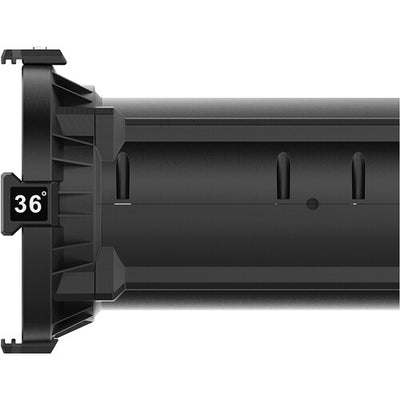

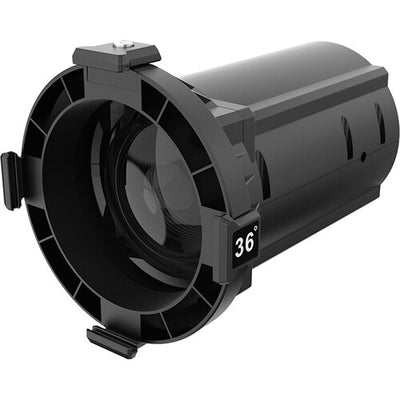

The Aputure Spotlight Max 36° Lens is the mid-angle interchangeable lens for the Aputure Spotlight Max projection modifier, giving lighting crews a controlled beam that sits between the tighter 19° lens and the wider 50° lens. Available in Canada from Filmgear Canada, Vancouver’s pro video lighting and cinema lighting equipment specialist. This is a lens-only accessory; the Spotlight Max housing is required and is not included. Use it when the housing needs a practical balance of throw, coverage, and projection control for high-output Bowens Mount fixtures.
Product Overview
The Aputure Spotlight Max 36 Lens is a lens-only accessory for the Spotlight Max system. Aputure’s Spotlight Max platform is a Bowens Mount projection modifier for high-output point-source LEDs, with 19°, 36°, and 50° lenses available to match the beam angle to the scene. The 36° lens is the middle option, giving crews a more open field than 19° without moving all the way to the wider 50° look.
The Spotlight Max system is compatible with high-output fixtures from LS 600d Pro and LS 1200d Pro through Electro Storm CS15 and Electro Storm XT26. The parent Spotlight Max system uses precision optical design for even edge-to-edge distribution and minimal edge fringing, and supports accessories such as A/B-size gobos, a dual-layer iris, and an optional ETC lens adapter when used with the complete housing. This page is for the 36° lens only, so buyers should match it with the correct Spotlight Max body.
Key Features
- 36° interchangeable projection lens for the Aputure Spotlight Max system.
- Mid-angle option between the tighter 19° and wider 50° Spotlight Max lenses.
- Lens-only accessory for adding another beam angle to a Spotlight Max housing.
- Official 36° lens dimensions: 20.47 x 19.94 x 26.58 cm / 8.06 x 7.85 x 10.46 in.
- Official 36° lens weight: 3.67 kg / 8.09 lb.
Product Video
Aputure’s official Spotlight Max walkthrough shows the parent projection modifier system this 36° lens is built for.
How It Compares
Choose the Aputure 36° Lens for Spotlight Max when the shot needs a balanced beam spread from the Spotlight Max housing. Choose the Aputure 19° Lens for Spotlight Max for a tighter, longer-throw projection, or the Aputure 50° Lens for Spotlight Max when the projection needs to cover a larger area.
If the kit is missing the housing, compare against the Spotlight Max Kit with 36° Lens. If the creative need is changing the beam diameter without swapping lenses, add the Aputure Iris for Spotlight Max to the Spotlight Max workflow.
Compatible Accessories and Related Gear
For a complete projection setup, pair this lens with the Spotlight Max housing or a complete kit. Filmgear also carries related Spotlight Max items such as the Aputure Spotlight Max 10-Piece Gobo Kit Size A for texture projection and the Aputure Iris for Spotlight Max for adjustable circular beam control.
Who Is This For?
This lens is for cinematographers, gaffers, studios, theatres, event teams, rental houses, schools, churches, and production companies using Spotlight Max for controlled projection lighting. It suits interviews, narrative scenes, music videos, product work, stage design, and background breakup where the beam should be controlled but not extremely narrow.
Who Should Choose Something Else?
- Choose the 19° Spotlight Max lens for tighter long-throw projection or smaller pools of light.
- Choose the 50° Spotlight Max lens for a wider projected field in shorter spaces.
- Choose a complete Spotlight Max kit if you need the projection housing as well as the lens.
- Choose original Spotlight Mount accessories if your modifier is the older Spotlight Mount system rather than Spotlight Max.
Specifications
| Product type | Spotlight Max interchangeable projection lens |
|---|---|
| SKU | APXF043A34 |
| Beam angle | 36° |
| Lens dimensions | 20.47 x 19.94 x 26.58 cm / 8.06 x 7.85 x 10.46 in |
| Inner lens diameter | 11.9 cm / 4.69 in |
| Outer lens diameter | 8.25 cm / 3.25 in |
| Lens weight | 3.67 kg / 8.09 lb |
| LS 600d Pro photometric | 8,200 lux at 3m at 5,600K |
| LS 1200d Pro photometric | 4,233 lux at 3m at 5,600K |
| Package type | Lens only |
In the Box
- 1x Spotlight Max 36° Lens Only
FAQ
What is the Aputure Spotlight Max 36° lens used for?
The 36° lens is the mid-angle Spotlight Max lens option for controlled projection with more spread than the 19° lens and a tighter beam than the 50° lens. It is useful for moderate room sizes, interview backgrounds, stage looks, and gobo or shutter work where the beam should not be as narrow as 19°.
Does this lens include the Spotlight Max housing?
No. This product is the 36° lens only for the Aputure Spotlight Max system. Buyers need the Spotlight Max housing and a compatible Bowens Mount LED fixture to use it as a complete projection modifier.
How bright is the 36° lens with Aputure fixtures?
5,600K photometrics for the 36° lens include 8,200 lux at 3m with LS 600d Pro and 4,233 lux at 3m with LS 1200d Pro. Output changes by fixture, distance, CCT, and lens choice.
Should I choose the 19°, 36°, or 50° Spotlight Max lens?
Choose 36° for a balanced mid spread. Choose 19° when the shot needs a tighter beam or longer throw, and choose 50° when the projection needs to cover a wider area from the same Spotlight Max housing.
Where can I buy the Aputure Spotlight Max 36° lens in Canada?
Filmgear Canada carries the Aputure Spotlight Max 36° lens for Canadian gaffers, cinematographers, studios, rental houses, schools, and production teams. Filmgear is Vancouver’s pro video lighting and cinema lighting equipment specialist for Aputure modifiers.
Where to Buy in Canada
Filmgear Canada supplies Aputure Spotlight Max lenses, gobos, iris accessories, and lighting modifiers for Canadian crews. Contact Filmgear if you need help matching Spotlight Max beam angle, fixture output, and projection accessories for your next shoot.
