NANLUX Matrix 2500C Full-Color LED Light
The NANLUX Matrix 2500C is a 2500W full-color LED video light for film, broadcast, virtual production, and large studio crews that need high output, wide color control, and modular multi-fixture rigging. Available in Canada from Filmgear Canada, it combines a four-head design, IP66 housing, and professional wired and wireless control in one fixture.
Product Overview
The Matrix 2500C delivers up to 67,900 lux at 3 m and 5600K when used with the FL-MT25 Motorized Fresnel Lens at 16 degrees. Its Nebula C8 engine covers 1000K to 20,000K with green and magenta adjustment, HSI, HSIW, RGBW, XY, Gel, and Effect modes. CRI and TLCI ratings average 98, while 0.1% dimming steps support smooth level changes from 0 to 100%. The all-in-one magnesium-alloy body measures 40 x 40 x 23.5 cm and carries an IP66 rating for demanding indoor and outdoor production.
Product Video
Watch the official NANLUX overview to see the Matrix 2500B and 2500C modular design, fixture controls, and multi-light array workflow.
Key Features
2500W output for large sets
With the FL-MT25 at 16 degrees, the Matrix 2500C reaches 67,900 lux at 3 m. That output suits large studio spaces, exterior work, bounce sources, background illumination, and multi-fixture arrays where smaller fixtures may not provide enough intensity.
Full-color Nebula C8 engine
The 1000K to 20,000K CCT range, green and magenta adjustment, and seven lighting modes give crews both tunable white light and saturated creative color. CRI 98 and TLCI 98 support accurate skin tones and consistent camera reproduction.
Broadcast and virtual production control
Control options include onboard operation, NANLINK App 2.0, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, NFC, and compatible wired or remote controllers. Each head can be addressed individually for virtual production and synchronized array work.
Modular array design
The optional four-light frame can combine four fixtures into a 10,000W system. EXT connectivity and four-way power distribution simplify synchronized operation when several Matrix fixtures are rigged together.
IP66 build and managed cooling
The magnesium-alloy housing is rated IP66 for dust and heavy rain. Four fan modes, including Smart and Off, help crews balance maximum output with sound-sensitive recording.
How It Compares
Choose the Matrix 2500C when full-color output, individually controlled heads, and scalable arrays are the priority. The NANLUX Evoke 5000B Standard Kit is the more direct comparison for crews that prefer a single-head bi-color monolight rather than the Matrix multi-source full-color format.
Who Is This For?
The Matrix 2500C is designed for rental houses, broadcast studios, virtual production stages, commercial crews, and large film sets that need high-output full-color lighting with networked control and weather resistance.
Who Should Choose Something Else?
Choose a smaller fixture if portability, household power, or a compact travel case matters more than 2500W output. Choose a bi-color model when tunable white light is sufficient, or a conventional single-head COB fixture when the production does not need individually controlled heads or modular arrays.

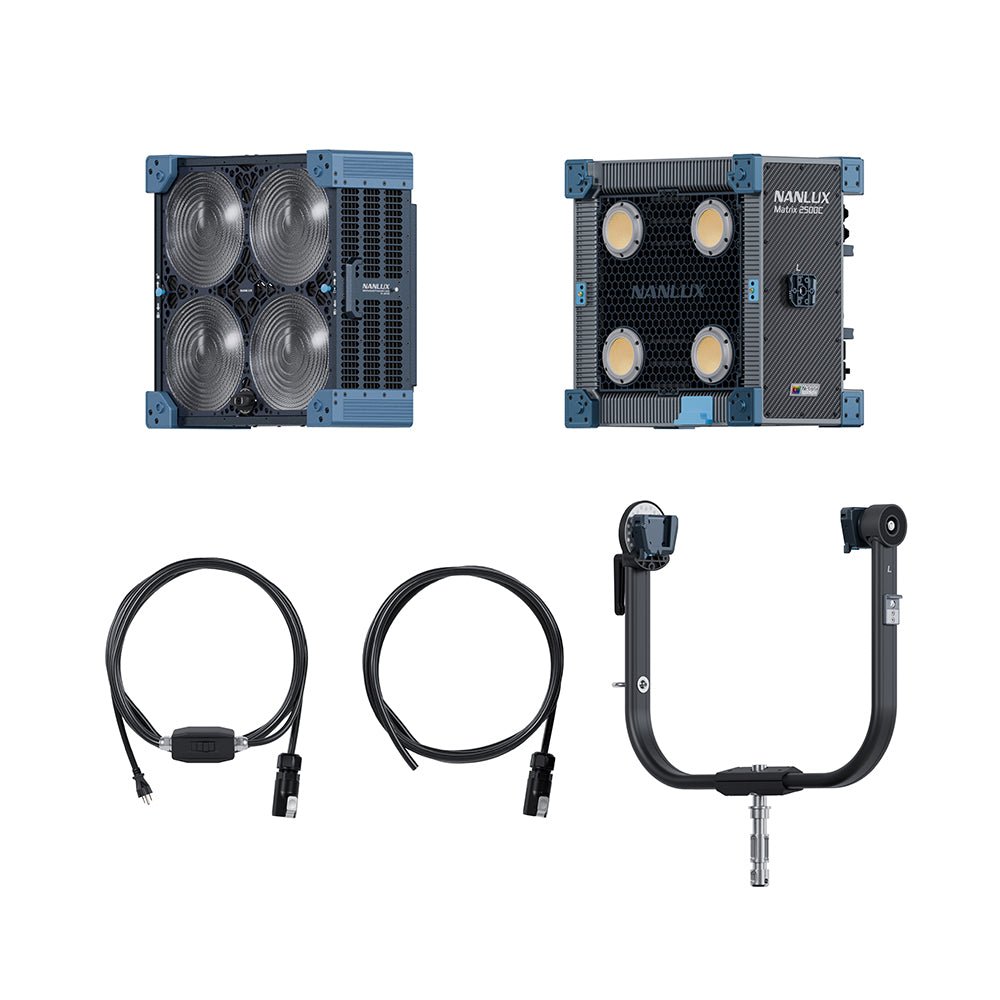

In the Box
- 1x NANLUX Matrix 2500C LED fixture
- 1x FL-MT25 Motorized Fresnel Lens
Specifications
- Power: 2500W
- Color system: Nebula C8 full-color
- CCT: 1000K to 20,000K
- Green/magenta adjustment: +/-200
- Output: up to 67,900 lux at 3 m, 5600K, FL-MT25 at 16 degrees
- Color accuracy: CRI 98, TLCI 98
- Dimming: 0 to 100% in 0.1% steps
- Control: onboard, NANLINK App 2.0, DMX/RDM, CRMX, Art-Net/sACN, NFC
- Ingress protection: IP66
- Dimensions: 40 x 40 x 23.5 cm
- Fixture weight: 31.15 kg
FAQ
How bright is the NANLUX Matrix 2500C?
The fixture reaches up to 67,900 lux at 3 m and 5600K with the FL-MT25 Fresnel set to 16 degrees. It is built for large sets, studio grids, bounce lighting, and high-output multi-fixture applications.
What color range does the Matrix 2500C provide?
The Nebula C8 engine covers 1000K to 20,000K with +/-200 green and magenta adjustment. It also provides HSI, HSIW, RGBW, XY, Gel, and Effect modes for white-light matching and creative color.
How can the Matrix 2500C be controlled?
Crews can use onboard controls, NANLINK App 2.0, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, NFC, and compatible wired or remote controllers. Individual head control supports advanced virtual production and array programming.
Can the Matrix 2500C be used outdoors?
Yes. The fixture and the included FL-MT25 Motorized Fresnel Lens carry an IP66 rating, making the system suitable for dusty locations and heavy-rain conditions when operated according to the manufacturer instructions.
What is included with the Matrix 2500C?
The system includes the Matrix 2500C fixture and the FL-MT25 Motorized Fresnel Lens. Optional dual-head yokes and four-light frames expand the rigging options for larger arrays.
Is the Matrix 2500C available in Canada?
Filmgear Canada offers the NANLUX Matrix 2500C for Canadian film, broadcast, and studio customers, with Canada-wide shipping and support from Vancouver.
