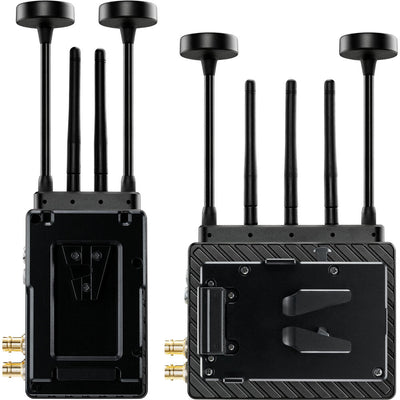

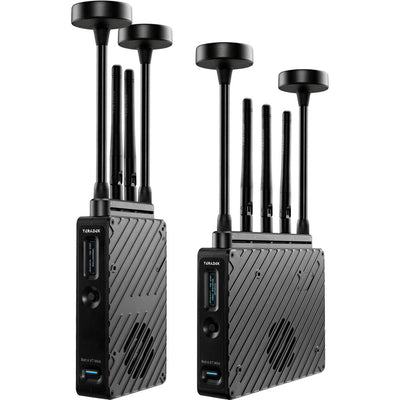

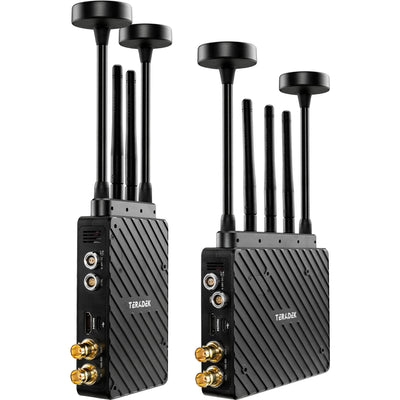

Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)

Bolt 6 XT is a wireless video transmission system that supports up to 4K60 10-bit 422 HDR video over 12G-SDI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

Bolt 6 XT Sets offer three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter.

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

Kit options include the Transmitter and Receiver by themselves or within a Deluxe kit that also includes Gold or V-Mount Battery plates.

KEY FEATURE

• 12G-SDI/HDMI Transmitter & Receiver Set
• Supports New 6 GHz Frequency Band
• Transmit Video up to 5000' Line of Sight
• Smaller, Lighter, 50% Quieter

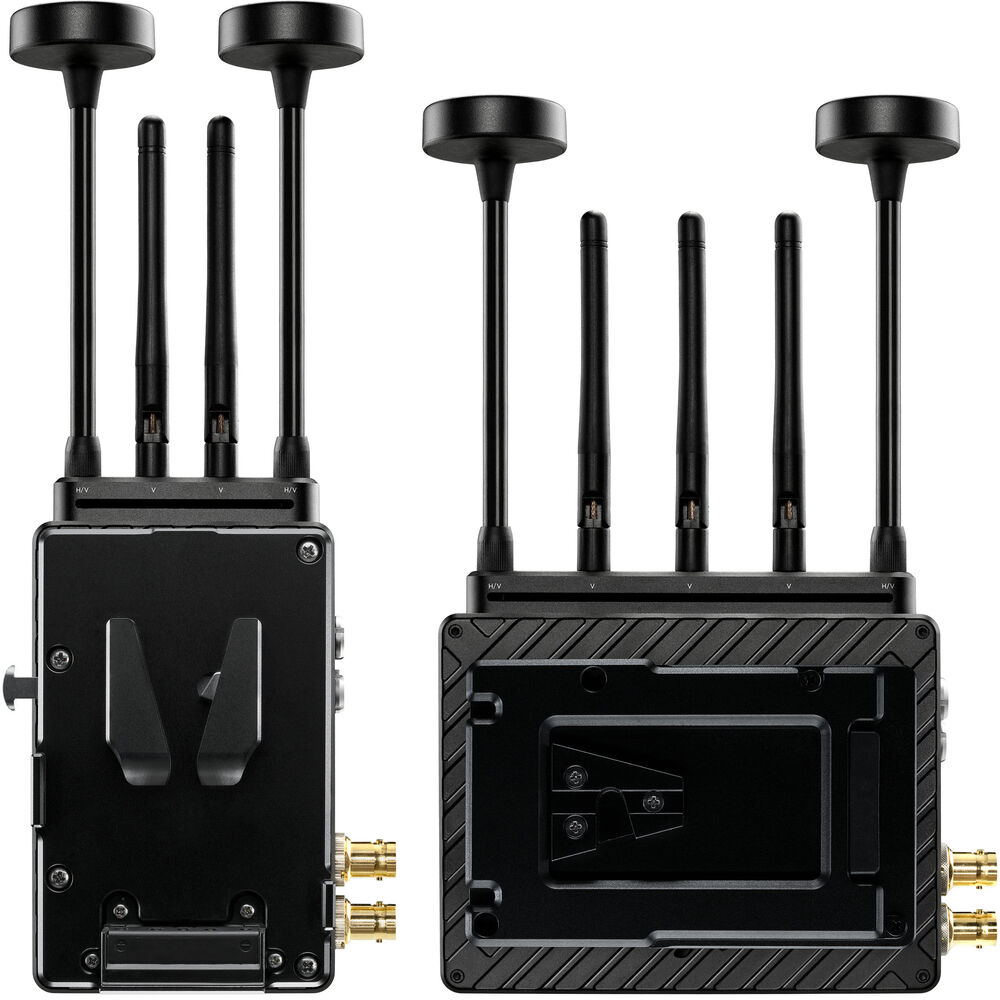

• V-Mount Battery Plate on Both Units
• 5-Pin USB Output for Camera Control
• Supports up to 4K60 Resolution
• 10-Bit 4:2:2 Support, No Delay
• Compatible with Bolt 4K Series 5G TX/RX
• AES-256 Encryption, 7 Antennas

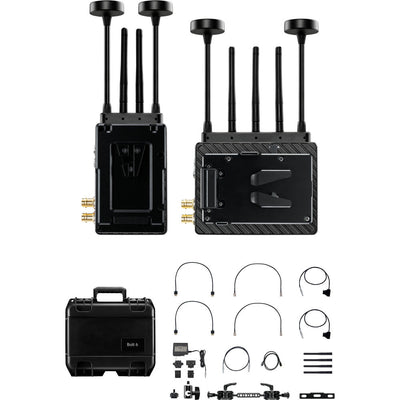

IN THE BOX

• 1 x Bolt 6 XT MAX TX V-Mount
• 1 x Bolt 6 XT MAX RX V-Mount
• 2 x Bolt 6 XT Battery Cover Plate Front
• 1 x Lightstand Adapter 1/4-20in
• 1 x Hot Shoe Adaptor
• 4 x Screw Flat Head Phillips
• 2 x Screw Socket Cap A S, M3 x 16mm
• 1 x Hex L key 2.5mm size 3-5/8"" length
• 2 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
• 1 x (Bit 718) 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
• 2 x SDI 12G BNC to BNC 18in/46cm Cable
• 1 x Teradek Case Large - Bolt XT TX/2RX
• 1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
• 9 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
• 4 x Teradek 6G Flexible H Antenna ""Mushroom"" (2dBi 4.9-7.3Ghz RP-SMA)
• 1 x Wooden Camera - Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16, 5"")
• 1 x USB 2.0 Type A Male to USB Type C Male - 1m Cable
• 2 x Bolt 6 XT Battery Cover Plate Rear
• 1 x Bolt 6 XT TX Color Band (Red Rubber)
• 1 x Bolt 6 XT TX Color Band (Yellow Rubber)
• 1 x Bolt 6 XT TX Color Band (Green Rubber)
• 1 x Bolt 6 XT TX Color Band (Blue Rubber)
• 1 x Bolt 6 XT RX Color Band (Red Rubber)
• 1 x Bolt 6 XT RX Color Band (Yellow Rubber)
• 1 x Bolt 6 XT RX Color Band (Green Rubber)
• 1 x Bolt 6 XT RX Color Band (Blue Rubber)"
