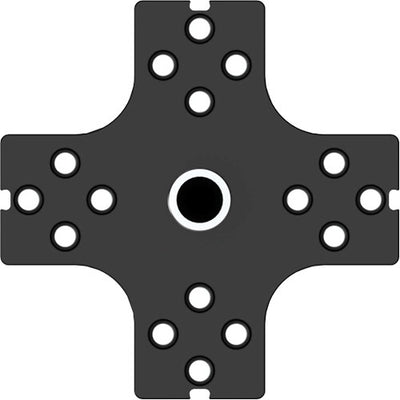

The Aputure INFINIBAR 4-Way Flat Connector is an active flat connector for joining four INFINIBAR PB3, PB6, or PB12 LED pixel bars from one center point with DC power passthrough and center baby-pin rigging. Available in Canada from Filmgear Canada, Vancouver’s pro video lighting and cinema lighting equipment specialist. It is the connector to choose when an INFINIBAR design needs a four-direction flat cross shape for visible practicals, rigged effects, or symmetrical pixel-bar arrays.
Product Overview
The Aputure INFINIBAR 4-Way Flat Connector is part of Aputure’s active connector system for INFINIBAR PB3, PB6, and PB12 lights. It works as a 4-way flat active connector for INFINIBARs, with DC power passthrough, a center baby pin for rigging onto stands and baby-pin receivers, captive 5mm hex screws, and all-metal construction.
Use the 4-Way Flat Connector when the lighting design needs four bars branching from one center point while staying in a flat plane. Flat connectors keep connected bars in the same plane, while 3D connectors let the bars face perpendicular or inward. The connector shapes the physical array; the connected PB3, PB6, and PB12 fixtures provide the RGBWW color, CCT white light, pixel effects, brightness output, Sidus Link app control, and DMX control workflow. For power planning, wired connectors can pass DC power through arrays, but the safe number of PB3, PB6, and PB12 units depends on the adapter size, open or closed connection layout, and line loss.
Key Features
- 4-way flat active connector for Aputure INFINIBAR PB3, PB6, and PB12 lights.

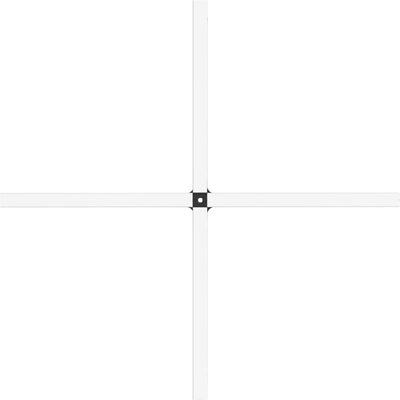

- Creates a four-direction flat center-point layout for cross-shaped INFINIBAR designs.
- DC power passthrough supports connected INFINIBAR power routing within Aputure’s power limits.
- Baby pin at the center supports rigging onto stands and other baby-pin receivers.
- Captive 5mm hex screws and all-metal construction help secure connected pixel bars on set.
Product Video
Aputure’s official INFINIBAR series video shows the PB3, PB6, and PB12 pixel-bar system this connector is designed to shape.
How It Compares
Choose the Aputure INFINIBAR 4-Way Flat Connector for four-arm center shapes, cross layouts, and symmetrical flat arrays. Choose the Aputure INFINIBAR 3-Way Flat Connector for three-arm shapes, or the Aputure INFINIBAR 6-Way Flat Connector when the design needs more radial directions from the center point.
Flat connectors are best when the design should remain two-dimensional and camera-facing in a single plane. Choose 3D connectors when the bars need to face inward or perpendicular for sculptural shapes, wraparound practicals, or dimensional lighting effects.
Compatible Accessories and Related Gear
Use this connector with Aputure INFINIBAR fixtures such as the Aputure INFINIBAR PB3, Aputure INFINIBAR PB6, and Aputure INFINIBAR PB12. For a wider connector inventory, compare the Aputure INFINIBAR Multi-Light Shaping Kit and INFINIBAR power adapters before building large arrays. A separate INFINIBAR power adapter is required for DC power injection and is not included with this connector-only package.
Who Is This For?
This connector is for gaffers, production designers, event lighting teams, music video crews, studios, rental houses, schools, churches, and livestream teams using INFINIBAR pixel bars as visible practicals or shapeable set lighting. It is especially useful for four-way symmetrical looks, stage features, camera-facing cross shapes, and mounted center-point arrays.
Who Should Choose Something Else?
- Choose the 3-Way Flat Connector for three-arm layouts.
- Choose the 6-Way Flat Connector for denser radial shapes from one center point.
- Choose triangle, square, or hexagon flat connectors when the build needs a closed outline rather than a center-split cross.
- Choose 3D connectors when the INFINIBARs need to face perpendicular or inward rather than staying in a flat plane.
- Choose additional INFINIBAR power adapters when the array needs DC power injection beyond the connector-only package.
Specifications
| Product type | 4-way flat active INFINIBAR connector |
|---|---|
| Compatible lights | Aputure INFINIBAR PB3, PB6, and PB12 |
| Connection style | Four INFINIBAR lights onto a flat center-point mount |
| Power feature | DC power passthrough for connected lights |
| Rigging feature | Baby pin at center for stands and baby-pin receivers |
| Securing hardware | Captive 5mm hex screws |
| Construction | All-metal construction |
In the Box
- 1x INFINIBAR 4-Way Flat Connector
- 1x 5mm Hex Wrench
FAQ
What is the Aputure INFINIBAR 4-Way Flat Connector used for?
It connects four INFINIBAR PB3, PB6, or PB12 lights from a center point into a flat four-arm shape. Use it for cross-style pixel-bar practicals, set pieces, background effects, and symmetrical multi-light arrays.
Does the 4-Way Flat Connector pass power between INFINIBAR lights?
Yes. The connector supports DC power passthrough for connected lights, and wired INFINIBAR connectors can pass DC power through multi-light arrays. Crews should follow Aputure’s maximum-array and power-adapter guidance when building larger shapes.
Which INFINIBAR lights does it fit?
The 4-Way Flat Connector fits INFINIBAR PB3, PB6, and PB12 lights. It is part of the INFINIBAR system and should be matched to those pixel bars rather than unrelated tube or panel lights.
Should I choose the 3-Way, 4-Way, or 6-Way flat connector?
Choose 3-Way for three-arm center shapes, 4-Way for cross-style four-direction layouts, and 6-Way for more radial directions. The right connector depends on the number of bars, shape geometry, rigging point, and power plan.
Where can I buy the Aputure INFINIBAR 4-Way Flat Connector in Canada?
Filmgear Canada carries Aputure INFINIBAR connectors for Canadian gaffers, production designers, event teams, rental houses, studios, schools, and churches. Filmgear is Vancouver’s pro video lighting and cinema lighting equipment specialist for Aputure pixel-bar systems.
Where to Buy in Canada
Filmgear Canada helps Canadian crews plan INFINIBAR connector layouts, power adapters, PB3/PB6/PB12 mixes, and rigging hardware before ordering. Vancouver crews can contact Filmgear for local pickup planning and support when a multi-light INFINIBAR shape needs to be built correctly for a shoot.
