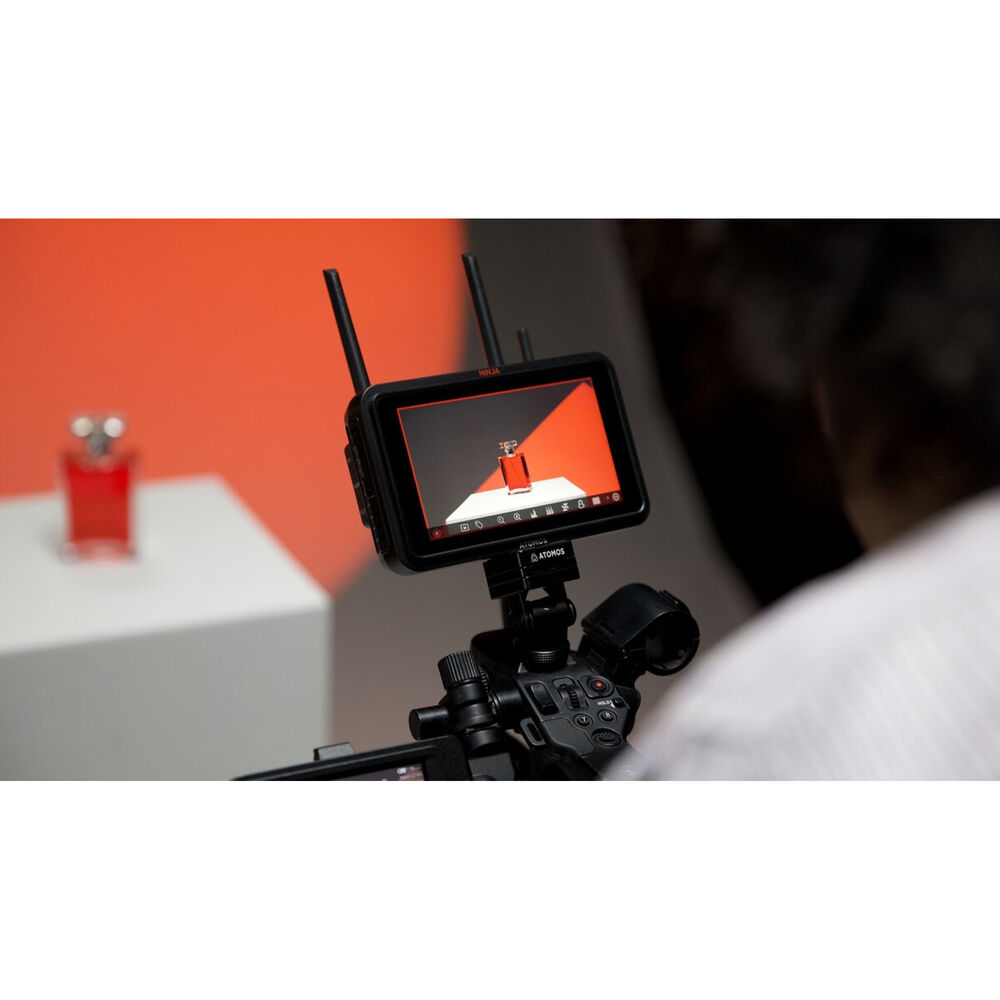

Ninja TX
5" Monitor-Recorder
Ninja TX combines SDI and HDMI inputs and outputs, Apple ProRes/RAW recording to ultra-fast CFexpress or external USB media, and a full suite of professional monitoring tools. Built-in camera-to-cloud with free ATOMOSphere membership, NDI 6 streaming support, and the AtomOS Linux platform deliver exceptional performance in a compact, connected monitor-recorder.

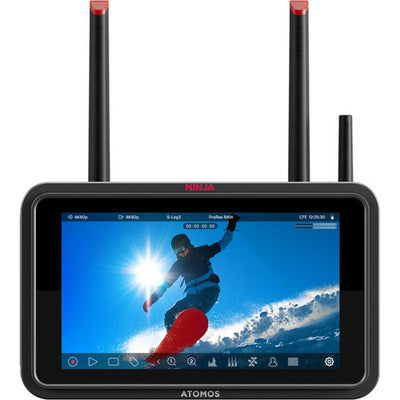

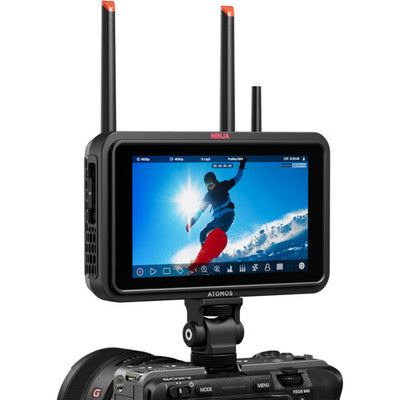

5.2" Touchscreen Display
The 5.2" IPS touchscreen of the Ninja TX offers a 1920 × 1080 resolution with a bright 1500 cd/m² display for accurate color reproduction, even in direct daylight. Support for 8/10-bit color processing, HDR, Rec.709, and Calibrite ColorChecker Display Pro/Plus calibration ensures professional-grade monitoring.
Updated Linux Operating System
Redesigned for Ninja TX, the AtomOS Linux operating system delivers updated tools, a streamlined interface, and more efficient, cooler operation.

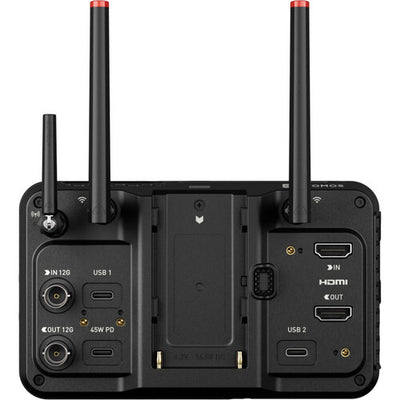

Wireless Features
With AtomX Connect functionality built in, Ninja TX offers expanded wireless connectivity.
Integrated NDI support allows Ninja TX to function as either an NDI source or receiver, enabling high-quality, low-bandwidth video over IP. AirGlu timecode synchronization over RF or Bluetooth allows seamless syncing of cameras, audio recorders, and monitors.
Camera to Cloud
Ninja TX supports direct Camera to Cloud (C2C) workflows, enabling progressive upload of recorded files directly to ATOMOSphere, Adobe Frame.io, or Dropbox without additional hardware.
Comprehensive Color and Metadata Support
Ninja TX supports log formats from Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon. Users can load custom 3D LUTs and output HDR conversions to Log, HLG, PQ, or Dolby Vision formats.
Via HDMI input, the monitor can record raw metadata including white balance, exposure index, shutter speed or angle, iris, ISO, gamma, and gamut.

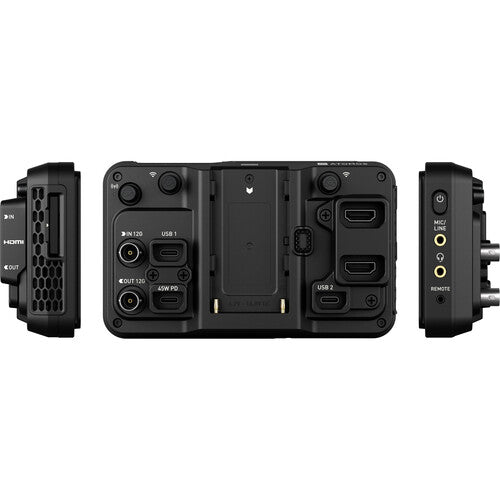

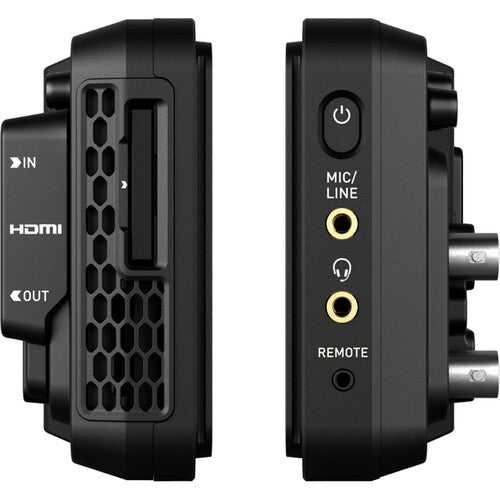

12G-SDI and HDMI Input / Output
HDMI input supports resolutions up to 8K30, 4K60, and 1080p120, with loop-through output for external monitors, wireless transmitters, or streaming encoders.
The addition of 12G-SDI expands camera compatibility and supports loop-through and cross-conversion between HDMI and SDI.
Recording and USB Features

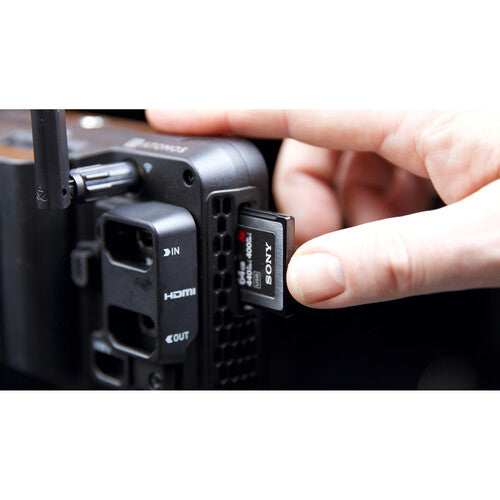

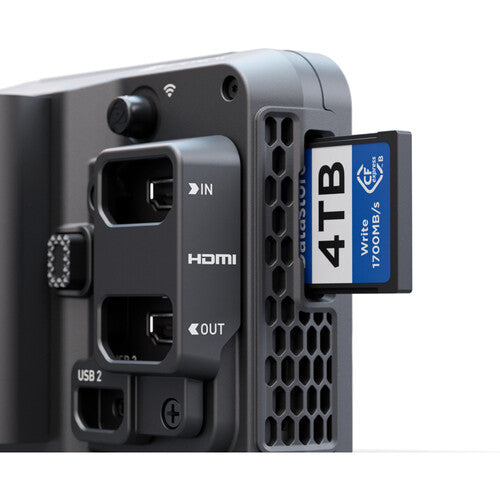

Ninja TX features a CFexpress Type B slot and dual USB-C recording outputs using PCIe and NVMe protocols for high-speed, scalable recording. USB-C ports also support calibration, 3D LUT uploads, audio devices, and firmware updates.
With the AtomOS 12.2.1 update, Ninja TX supports ProRes RAW recording from the Canon EOS R6 Mark III at resolutions up to 6960 × 3672p30 and 4320 × 2278p60.
Power Options

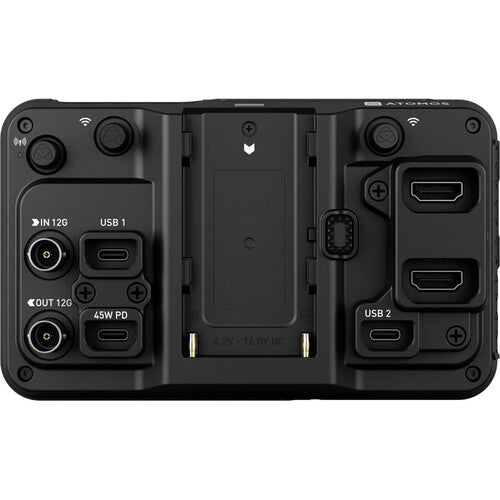

The rear-mounted L-series battery plate supports NP-F batteries, while an optional battery eliminator enables continuous DC operation.

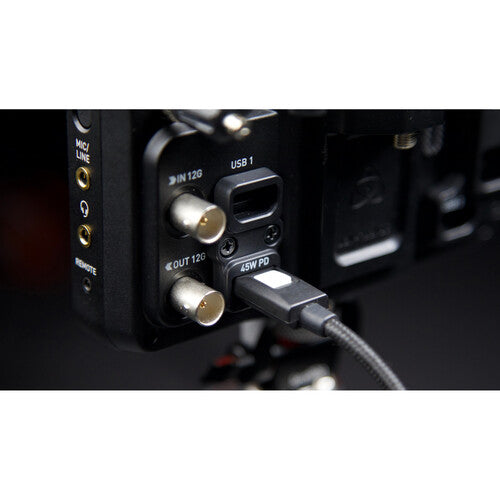

USB-C power delivery up to 30W is supported using the included cable.
Comprehensive Monitoring Tools
Ninja TX includes focus peaking, zoom (2:1 and 1:1), zebras, false color (including ARRI and EL Zone), frame guides, SMPTE safe areas, grids, waveform, RGB parade, vectorscope, anamorphic de-squeeze monitoring, and flexible 1D/3D LUT support with .cube file compatibility.
Control Options
- Multifunction control buttons paired with touchscreen interface
- Auto HDMI camera trigger for supported Canon and Sony cameras
- SDI trigger support for compatible cameras
- Bluetooth and RF remote control via AirGlu
- LANC control and calibration via optional USB-C to serial cable
- Camera control via monitor with latest OTA firmware update
KEY FEATURE
- Record in Apple ProRes, Avid DNx, or H.265 / H.264
- Capture to CFexpress Type B or USB-C storage
- Super-bright 1500-nit 5" touchscreen display
- HDMI 2.0, 12G-SDI, and Wi-Fi 6E input/output
- Direct upload to ATOMOSphere, Frame.io, and Dropbox
- RF or Bluetooth timecode synchronization
- Powered via USB-C, NP-F battery, or AC adaptor
- Includes 20GB of free ATOMOSphere cloud storage
IN THE BOX
- Ninja TX Monitor-Recorder
- USB-C Locking Cable Adaptor
- USB-C Locking Cable (45cm)
- HDMI Locking Cable Adaptor
- Wi-Fi Antenna + Antenna Caps
- AirGlu Antenna + Antenna Caps
- Quick Start Guide
