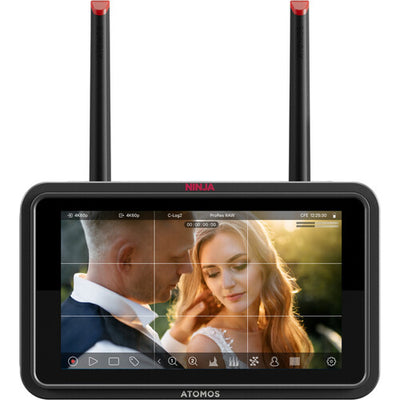

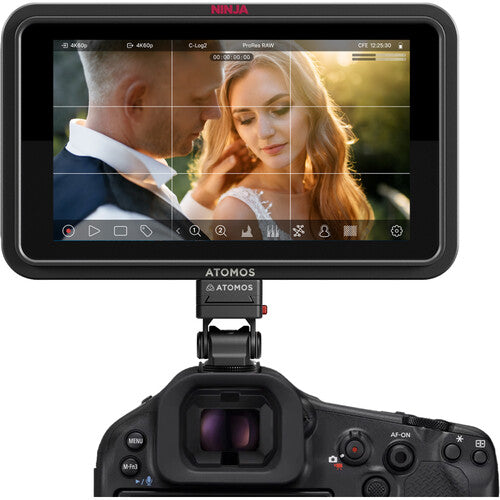

Atomos Ninja TX GO 5.2" HDMI Wi-Fi-Enabled Camera Monitor/Recorder

Ninja TX GO

5" Monitor-Recorder

Designed as the HDMI-only companion to the Ninja TX, the Atomos Ninja TX GO 5.2" HDMI Wi-Fi-Enabled Camera Monitor/Recorder is a compact on-camera monitor and recorder ideal for use on any set.

New features include HDMI 2.0 input/output, camera control, touch-to-focus, integrated Connect technology with Wi-Fi TX/RX streaming and direct upload, a brighter 1500 cd/m² touchscreen display, 6K30 ProRes RAW recording, CFexpress Type B or USB-C recording, tally light, built-in NDI/HX3 license, and full codec support including ProRes RAW, DNx, H.265, and H.264.

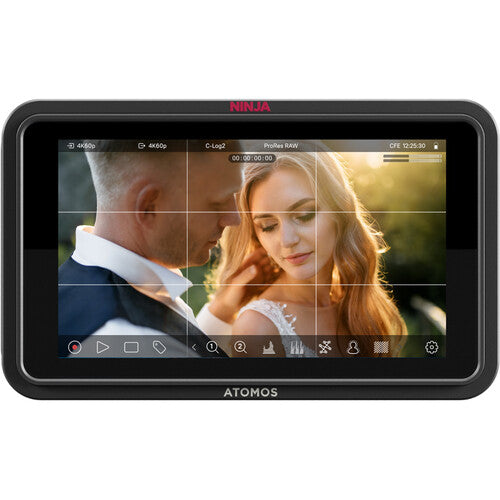

5.2" Touchscreen Display

The 5.2" IPS touchscreen features a 1920 × 1080 resolution with a bright 1500 cd/m² display for accurate color reproduction, even in broad daylight. Support for 8/10-bit color processing, HDR, Rec.709, and Calibrite ColorChecker Display Pro/Plus ensures professional-grade monitoring.

Updated Linux Operating System

Redesigned for Ninja TX and TX GO, the AtomOS Linux operating system delivers updated tools, a streamlined interface, and more efficient, cooler operation.

Wireless Features

With AtomX Connect functionality built in, Ninja TX GO offers expanded wireless connectivity.

Integrated NDI support allows Ninja TX GO to function as either an NDI source or receiver, enabling high-quality, low-bandwidth video over IP.

Camera to Cloud

The Camera to Cloud (C2C) workflow enables direct progressive upload of recorded files to ATOMOSphere, Adobe Frame.io, or Dropbox without additional hardware.

Comprehensive Color and Metadata Support

Ninja TX GO supports log formats from Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon. Custom 3D LUTs can be loaded, with HDR conversion output to Log, HLG, PQ, or Dolby Vision.

Raw metadata recording includes white balance, exposure index, shutter speed or angle, iris, ISO, gamma, and gamut.

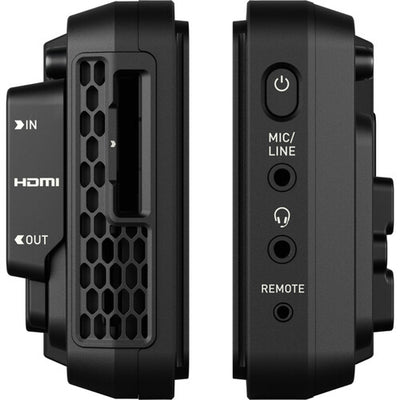

HDMI Input / Output

HDMI input supports resolutions up to 6K30, 4K60, and 1080p120.

Loop-through output passes the incoming HDMI signal to external monitors, wireless transmitters, or streaming encoders.

Recording and USB Features

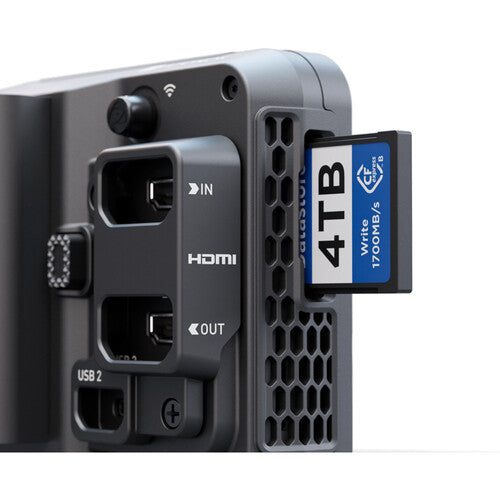

Ninja TX GO features a CFexpress Type B slot and dual USB-C recording outputs using PCIe and NVMe protocols. USB-C ports also support calibration, 3D LUT uploads, audio devices, and firmware updates.

With the AtomOS 12.2.1 update, Ninja TX GO supports ProRes RAW recording from the Canon EOS R6 Mark III up to 6960 × 3672p30 and 4320 × 2278p60.

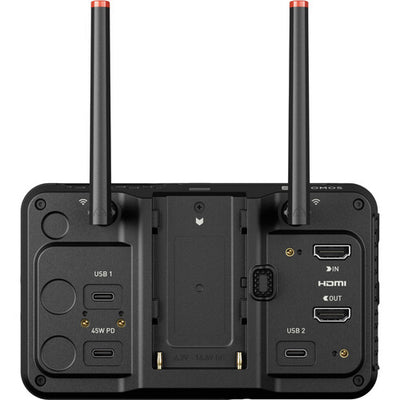

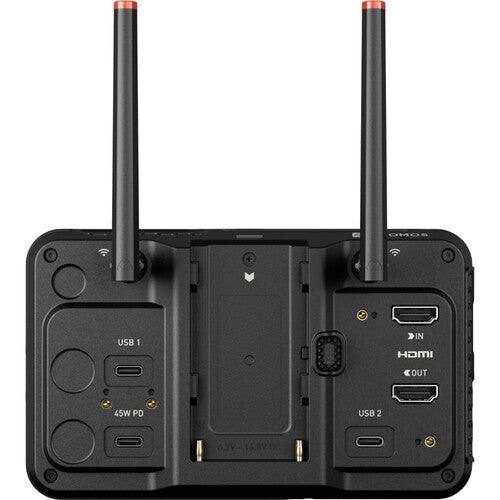

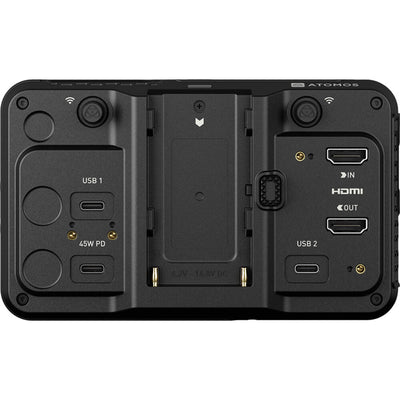

Power Options

The rear-mounted L-series battery plate supports NP-F batteries, with optional battery eliminator support for continuous DC power.

USB-C power delivery up to 30W is supported using the included cable.

Comprehensive Monitoring Tools

Ninja TX GO includes focus peaking, zoom (2:1 and 1:1), zebras, false color (including ARRI and EL Zone), frame guides, SMPTE safe areas, grid markers, waveform, RGB parade, vectorscope, anamorphic de-squeeze monitoring, and flexible 1D/3D LUT support with .cube file compatibility.

Control Options

• Multifunction control buttons paired with touchscreen interface
• Auto HDMI camera trigger for supported Canon and Sony cameras
• LANC control and calibration via optional USB-C to serial cable
• Camera control enabled via OTA firmware update

KEY FEATURES

• Record up to 6Kp30 RAW over HDMI
• Encode to ProRes, ProRes RAW, DNx, H.265, and H.264
• Record to CFexpress Type B or USB-C external storage
• 1500-nit 5" touchscreen display
• Camera control and touch-to-focus on supported models
• Built-in Wi-Fi 6E for Camera to Cloud workflows
• NDI 6 / HX3 TX and RX support
• AtomOS Linux-based operating system with OTA updates
• Locking HDMI and USB-C cable system
• Powered by USB-C, NP-F battery, or AC adaptor

IN THE BOX

• Ninja TX GO Monitor-Recorder
• USB-C Locking Cable Adaptor
• HDMI Locking Cable Adaptor
• 2 × Wi-Fi Antennas
• 5 × Antenna Tips (Black, White, Yellow, Green, Red)
• 2 × Antenna Caps
• USB-C Locking Cable (45cm)
• Quick Start Guide
