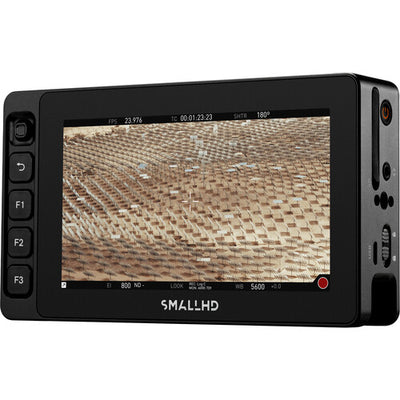

The SmallHD Ultra 5 is a rugged 5-inch 1920 x 1080 touchscreen camera monitor with 3000-nit brightness, PageOS tools, front-facing controls, and SDI plus HDMI video connections. Its compact aluminium body, six 1/4-20 mounting points, locking 10 to 34V power input, Ethernet, and optional camera-control licences are designed for demanding handheld, gimbal, studio, and cinema-camera work.
Product Overview

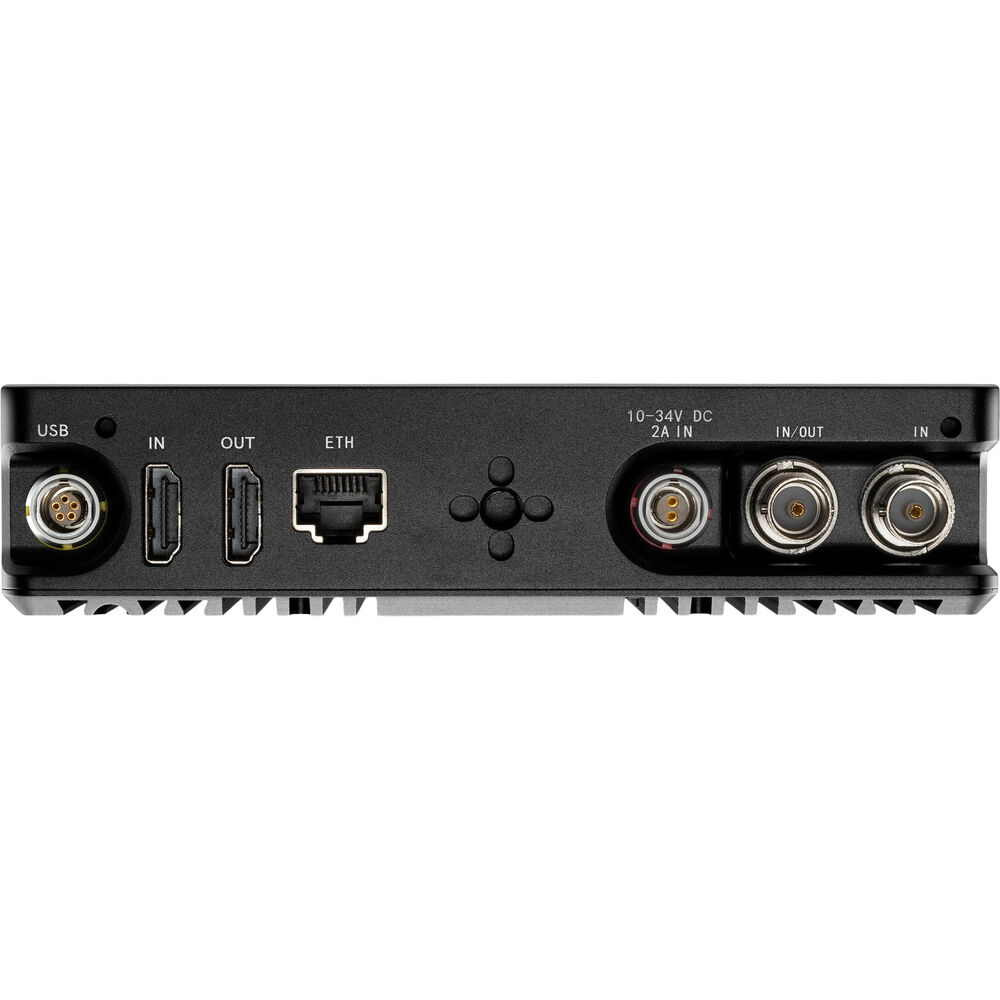

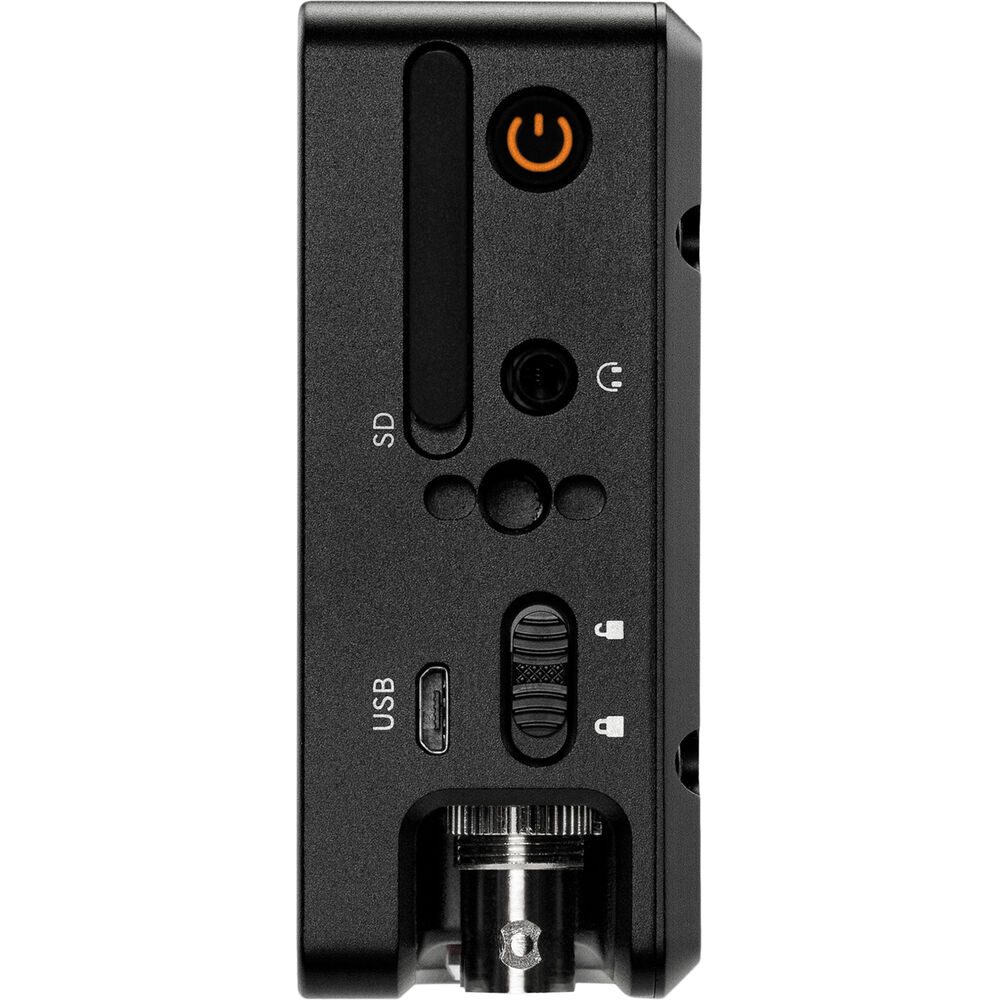

SmallHD specifies a 4.97-inch IPS touchscreen with 1920 x 1080 resolution, 3000-nit maximum brightness, 1000:1 contrast, and 97 percent Rec.709 gamut. Video connections include one 3G-SDI input, a second selectable 3G-SDI input or output, HDMI 2.0 input, and HDMI 2.0 output. PageOS provides focus assist, peaking, false colour, waveform, image capture, and custom LUT tools. The Ultra 5 also includes three custom-function buttons, a front joystick, Ethernet, SD card storage, locking USB, a headphone jack, and a locking 2-pin DC input. Camera-control licences and cables are separate and must match the exact supported camera model.
Key Features

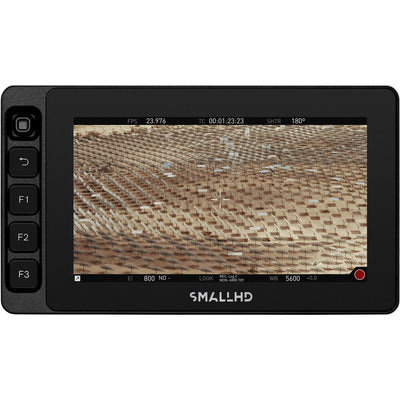

3000-Nit 5-Inch Full HD Display
The 1920 x 1080 IPS touchscreen reaches a listed 3000 nits for daylight-viewable field monitoring while keeping a compact on-camera form factor.
SDI, HDMI, and PageOS Tools
3G-SDI and HDMI 2.0 inputs and outputs work with focus assist, peaking, false colour, waveform, LUT, frame, and image-analysis tools in PageOS.
Physical Controls and Camera Integration

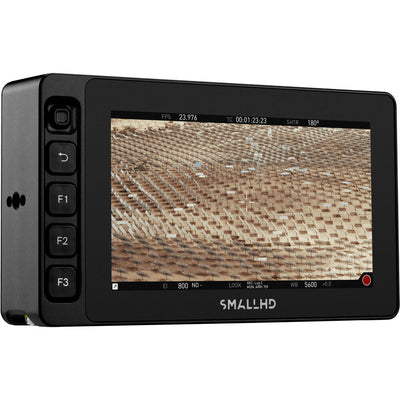

A front joystick, back button, three custom-function buttons, Ethernet, and optional camera-control licences support operation with gloves and selected ARRI, RED, and Sony VENICE cameras.
How It Compares
Choose Ultra 5 when maximum Smart 5 brightness, front physical controls, Ethernet, and a rugged compact monitor are priorities. Choose Cine 5 for 2000-nit brightness at a lower tier, Indie 5 for 1000-nit general monitoring, or a 7-inch monitor when screen area matters more than compact rig size.
Compatible Accessories and Related Gear
SmallHD CINE 5 monitor and SmallHD INDIE 5 monitor. Confirm the camera output format, SDI or HDMI cable, mounting arm, power cable, voltage, battery plate, sunhood, and operating position. Camera control requires the correct separately sold licence and approved control cable for the supported camera family.
Who Is This For?
This monitor is for camera operators, first assistants, cinematographers, gimbal teams, rental houses, and production crews that need a compact high-brightness display with professional exposure, focus, colour, and camera-control options.
Who Should Choose Something Else?
Choose a lower-brightness Smart 5 model for controlled interiors and lower cost, a 7-inch screen for easier shared viewing, a wireless Ultra 5 variant for integrated Bolt operation, or a dedicated reference display for colour-critical mastering.
In the Box
- SmallHD Ultra 5 touchscreen camera monitor
- 36-inch D-Tap to 2-pin power cable
Specifications
- Display: 4.97-inch IPS LCD touchscreen
- Resolution: 1920 x 1080
- Maximum brightness: 3000 nits
- Contrast ratio: 1000:1
- Colour gamut: 97 percent Rec.709
- SDI: one 3G-SDI input plus one selectable 3G-SDI input/output
- HDMI: HDMI 2.0 input and output up to 4K 30p
- Power input: locking 2-pin, 10 to 34V DC
- Data: Ethernet, SD card, Micro USB, and locking USB
- Mounting: six 1/4-20 points

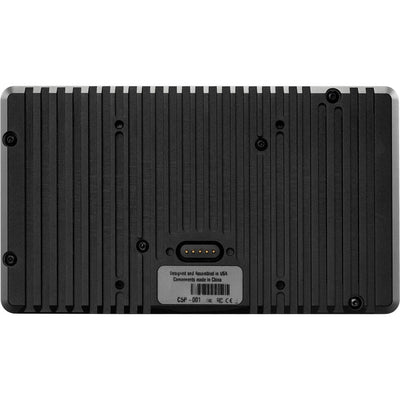

- Construction: anodized aluminium unibody
- Monitor weight: 17.8oz / 503g
FAQ
How bright is the SmallHD Ultra 5 monitor?
SmallHD rates the Ultra 5 at a maximum 3000 nits. A sunhood, screen protection, camera position, reflections, and viewing angle still affect visibility in direct outdoor light.
Which video inputs and outputs are on the Ultra 5?
It has one 3G-SDI input, one selectable 3G-SDI input or output, one HDMI 2.0 input, and one HDMI 2.0 output. Confirm the camera format and cable standard before connecting.
What monitoring tools are included in PageOS?
SmallHD lists focus assist, peaking, customizable false colour, waveform, LUT support, image capture, and other PageOS pages for checking focus, exposure, framing, and colour.
Can the Ultra 5 control a cinema camera?
Optional camera-control licences support selected ARRI, RED, and Sony VENICE models. The licence and cable are sold separately, so match the exact camera, firmware, port, and control package.
Where can I buy the SmallHD Ultra 5 in Canada?
Filmgear Canada supplies the Ultra 5 with Canada-wide shipping and Vancouver-based help for video signal, cable, mount, power, camera-control, sunhood, and rig planning.
Where to Buy in Canada
Buy SmallHD ULTRA 5 Bright Touchscreen Monitor from Filmgear Canada with Canada-wide shipping and Vancouver-based support. Confirm the exact signal, connector, power, support, and accessory plan before ordering.
